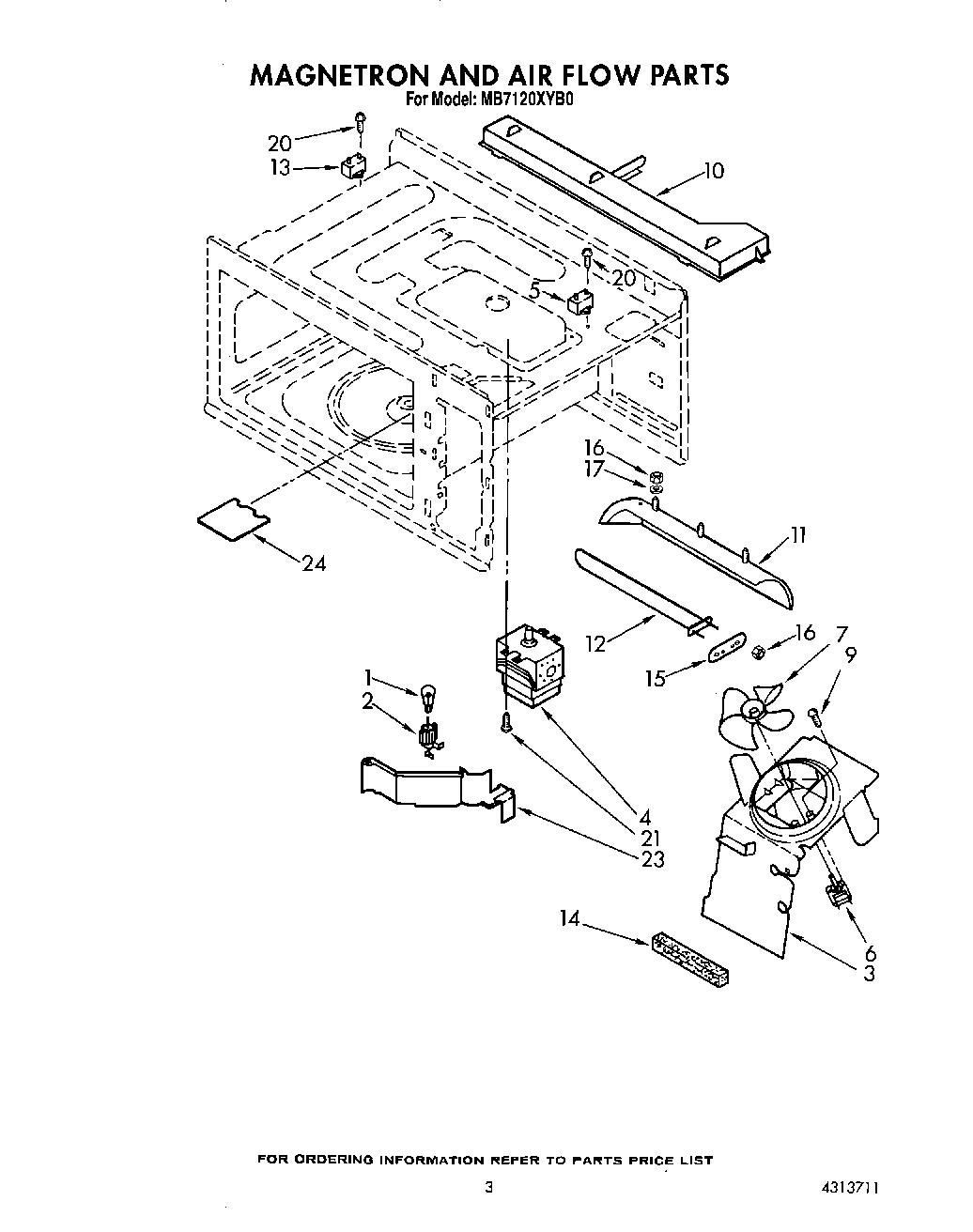

MB7120XYB0 03 – MAGNETRON AND AIR FLOWadmin2025-04-26T11:22:42+00:00MB7120XYB0 03 – MAGNETRON AND AIR FLOW
Products
| Position | Product |
|---|
| 1 | Lamp, Oven |
| 2 | Socket, Lamp |
| 3 | Duct, Fan |
| 4 | Magnetron |
| 5 | Fuse, Magnetron Temp |
| 6 | Motor, Fan |
| 7 | Blade, Fan |
| 9 | Screw |
| 10 | Duct, Cooling |
| 11 | Reflector, Heat |
| 12 | Element, Browning |
| 13 | Fuse, Temp |
| 14 | Cushion, Motor |
| 15 | Bracket, Element |
| 16 | Nut, Reflector Mounting |
| 17 | Washer, Element Mounting |
| 20 | Screw |
| 21 | Screw |
| 23 | Duct, Magnetron |
| 24 | Cover, Wave Guide |
