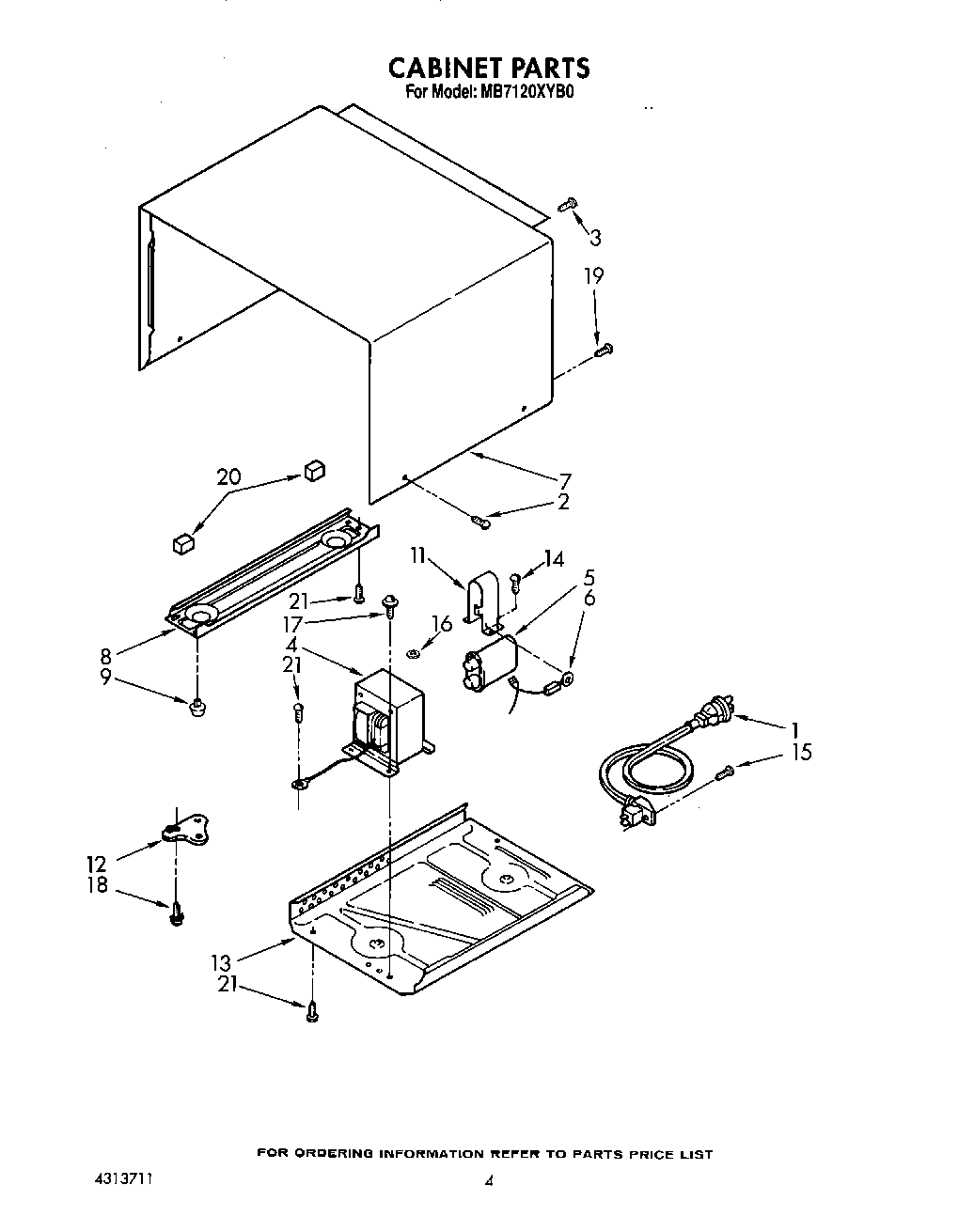

MB7120XYB0 04 – CABINET

Products

Position	Product
1	Power Cord
2	Screw, 4 x 12 mm
3	Screw, Cabinet Rear (Top)
4	Transformer
5	Capacitor
6	Rectifier
7	Outer Cabinet
8	Base Plate, Left Side
9	Foot (4)
11	Bracket, Capacitor
12	Hinge, Lower
13	Base Plate, Right Side
14	Screw
15	Screw
16	Washer, Trans. Ground
17	Screw
18	Screw
19	Screw
20	Shield, Wire (2)
21	Screw
