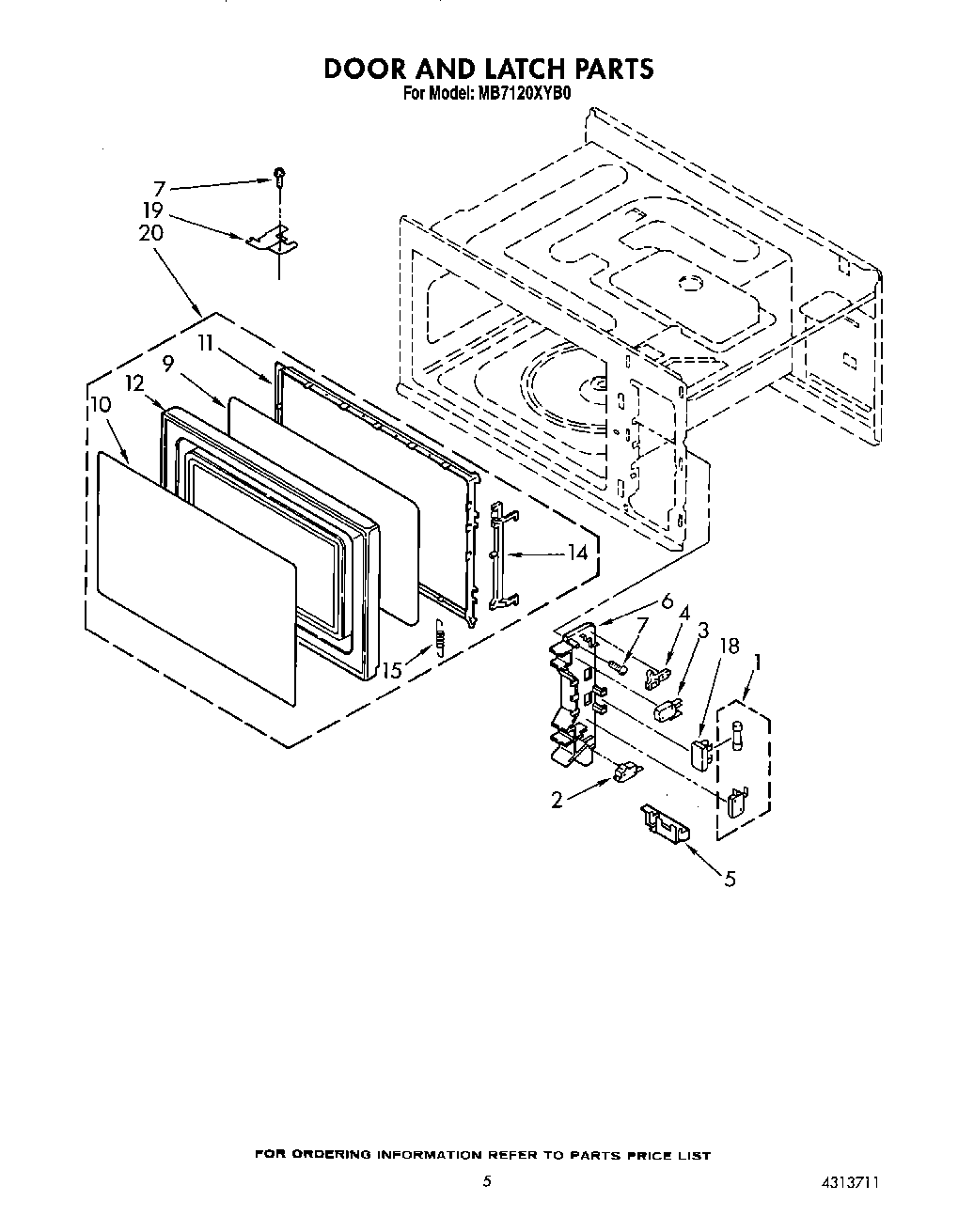

MB7120XYB0 05 – DOOR AND LATCH

Written by

Products

Position	Product
1	Switch and Fuse Assembly
3	4392027 Whirlpool Microwave Primary Switch
4	Hook, Lever
5	Latch Lever
6	Latch Hook
7	SCREW
9	Seal, Door (Not a Serviceable Part)
10	Panel, Door (Not Serviceable)
11	Choke Cover
12	Frame, Door (Not Serviceable)
14	Latch, Door
15	Spring, Latch
18	Holder, Fuse
19	Hinge, Upper
20	Door, Complete
