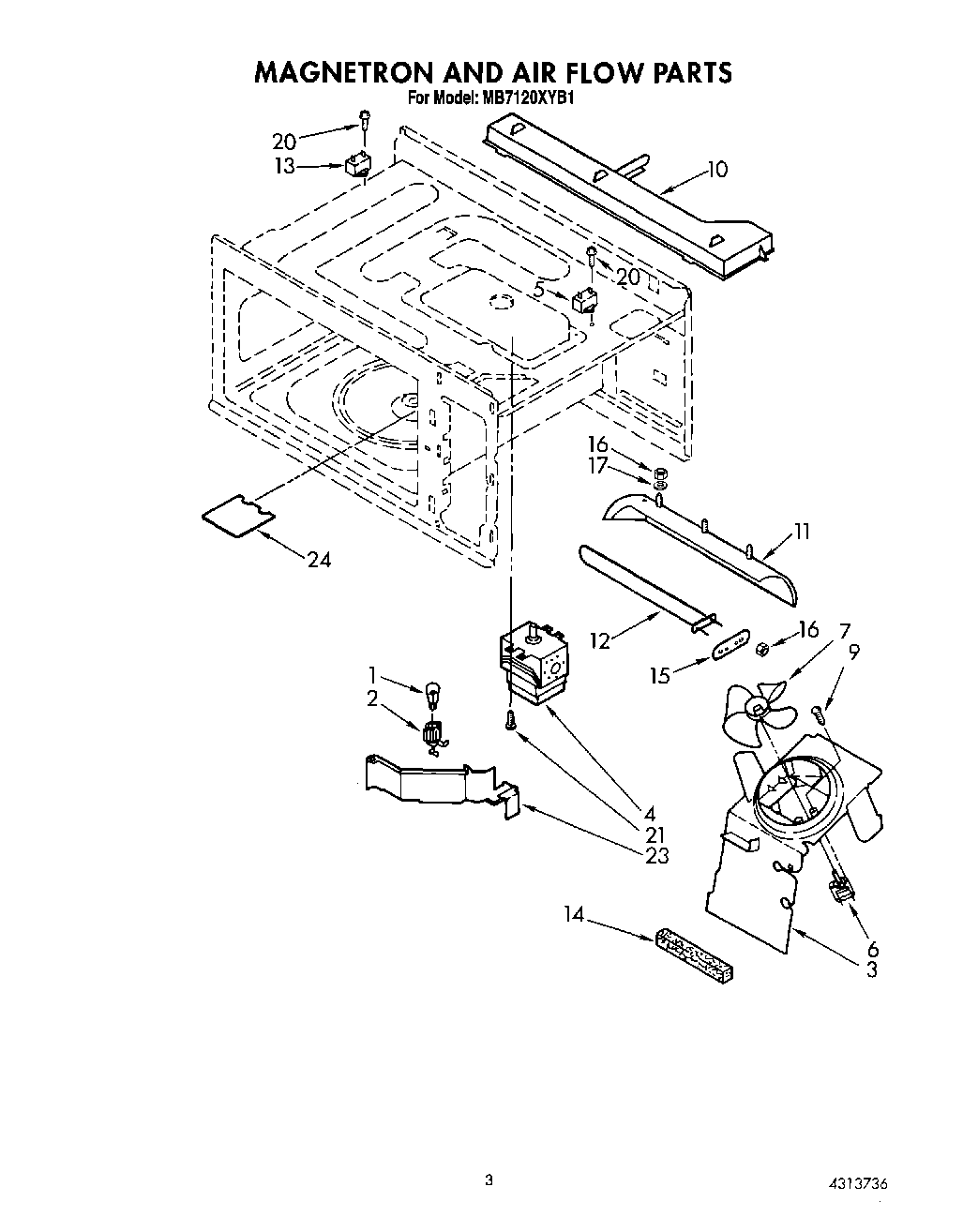

MB7120XYB1 03 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Lamp, Oven
2	Socket, Lamp
3	Duct, Fan
4	Magnetron
5	Fuse, Magnetron Temp
6	Motor, Fan
7	Blade, Fan
9	Screw
10	Duct, Cooling
11	Reflector, Heat
12	Element, Browning
13	Fuse, Temp
14	Cushion, Motor
15	Bracket, Element
16	Nut, Reflector Mounting
17	Washer, Element Mounting
20	Screw
21	Screw
23	Duct, Magnetron
24	Cover, Wave Guide
