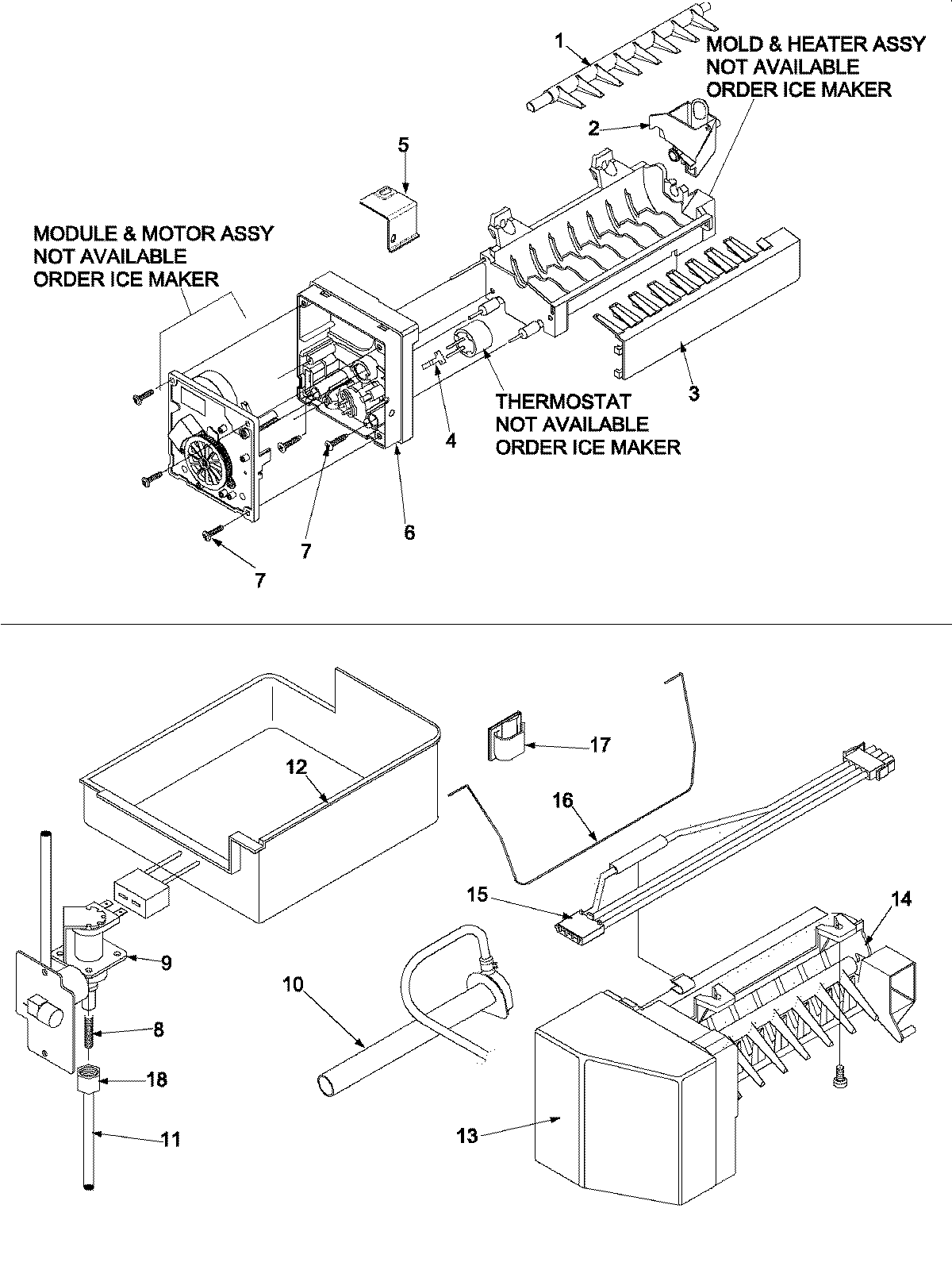

MBB1952HEQ 08 – OPTIONAL ICE MAKER KIT-IC11B

Products

Position	Product
1	WP627843 Whirlpool Refrigerator Ejector Arm
2	WP628356 Whirlpool Refrigerator Fill Cup
3	WP2182124 Whirlpool Refrigerator Stripper Arm
4	WP2315522 Whirlpool Refrigerator Clip
5	BRACKET, MODULE & HEATER
6	WP2195914 Whirlpool Refrigerator Ice Maker Housing
7	SCREW
8	SPRING, ANTI KINK
9	WP67003753 Whirlpool Refrigerator Inlet Valve
10	ELBOW, FILL TUBE
11	MAY B5705323
12	WP67001255 Whirlpool Ice Bucket
13	WPW10289690 Whirlpool Ice Maker Cover
14	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
15	WPD7813010 Whirlpool Refrigerator Wire Harness
16	ARM-SHUT
17	WPM0104106 Whirlpool Refrigerator Clip
18	NUT, SLEEVE
19	MAY 10549601
20	W10833902 Whirlpool Refrigerator Clamp
21	MAY 95108-1
22	MAY 67001258
23	681390 Whirlpool Refrigerator Screw
24	MAY A3223101
25	Clip
26	W11033771 Whirlpool Refrigerator Coupling
27	8003RP Whirlpool Refrigerator 25' 1/4" Copper Water Supply Line Kit
28	MAY 10526701
29	MAY M0211018
30	MAY 67001264
