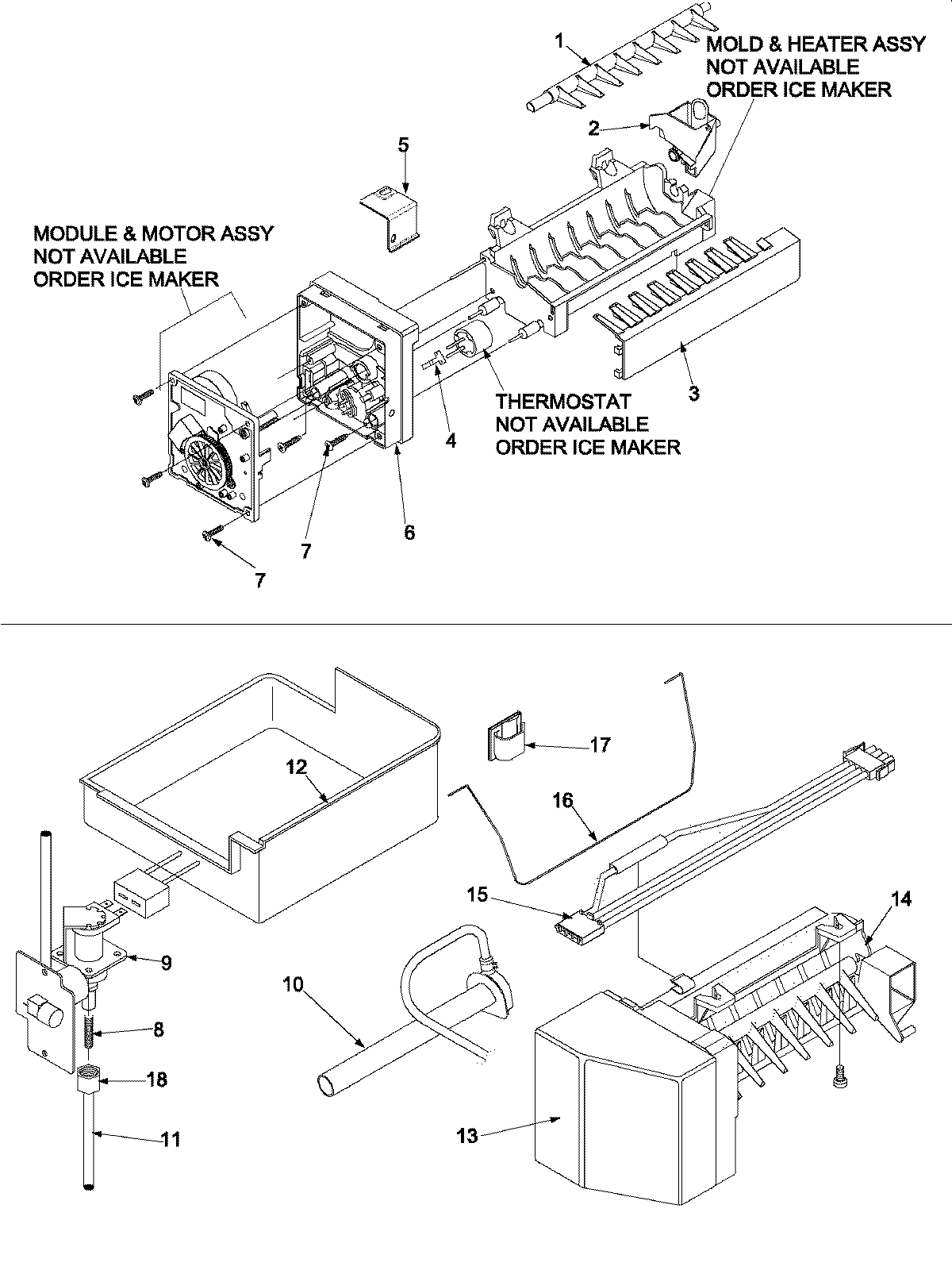

MBB1952HEW 08 – OPTIONAL ICE MAKER KIT-IC11B

Products

PositionProduct
1WP627843 Whirlpool Refrigerator Ejector Arm
2WP628356 Whirlpool Refrigerator Fill Cup
3WP2182124 Whirlpool Refrigerator Stripper Arm
4WP2315522 Whirlpool Refrigerator Clip
5BRACKET, MODULE & HEATER
6WP2195914 Whirlpool Refrigerator Ice Maker Housing
7SCREW
8SPRING, ANTI KINK
9WP67003753 Whirlpool Refrigerator Inlet Valve
10ELBOW, FILL TUBE
11MAY B5705323
12WP67001255 Whirlpool Ice Bucket
13WPW10289690 Whirlpool Ice Maker Cover
14D7824706Q Whirlpool Refrigerator Ice Maker Assembly
15WPD7813010 Whirlpool Refrigerator Wire Harness
16ARM-SHUT
17WPM0104106 Whirlpool Refrigerator Clip
18NUT, SLEEVE
19MAY 10549601
20W10833902 Whirlpool Refrigerator Clamp
21MAY 95108-1
22MAY 67001258
23681390 Whirlpool Refrigerator Screw
24MAY A3223101
25Clip
26W11033771 Whirlpool Refrigerator Coupling
278003RP Whirlpool Refrigerator 25' 1/4" Copper Water Supply Line Kit
28MAY 10526701
29MAY M0211018
30MAY 67001264
