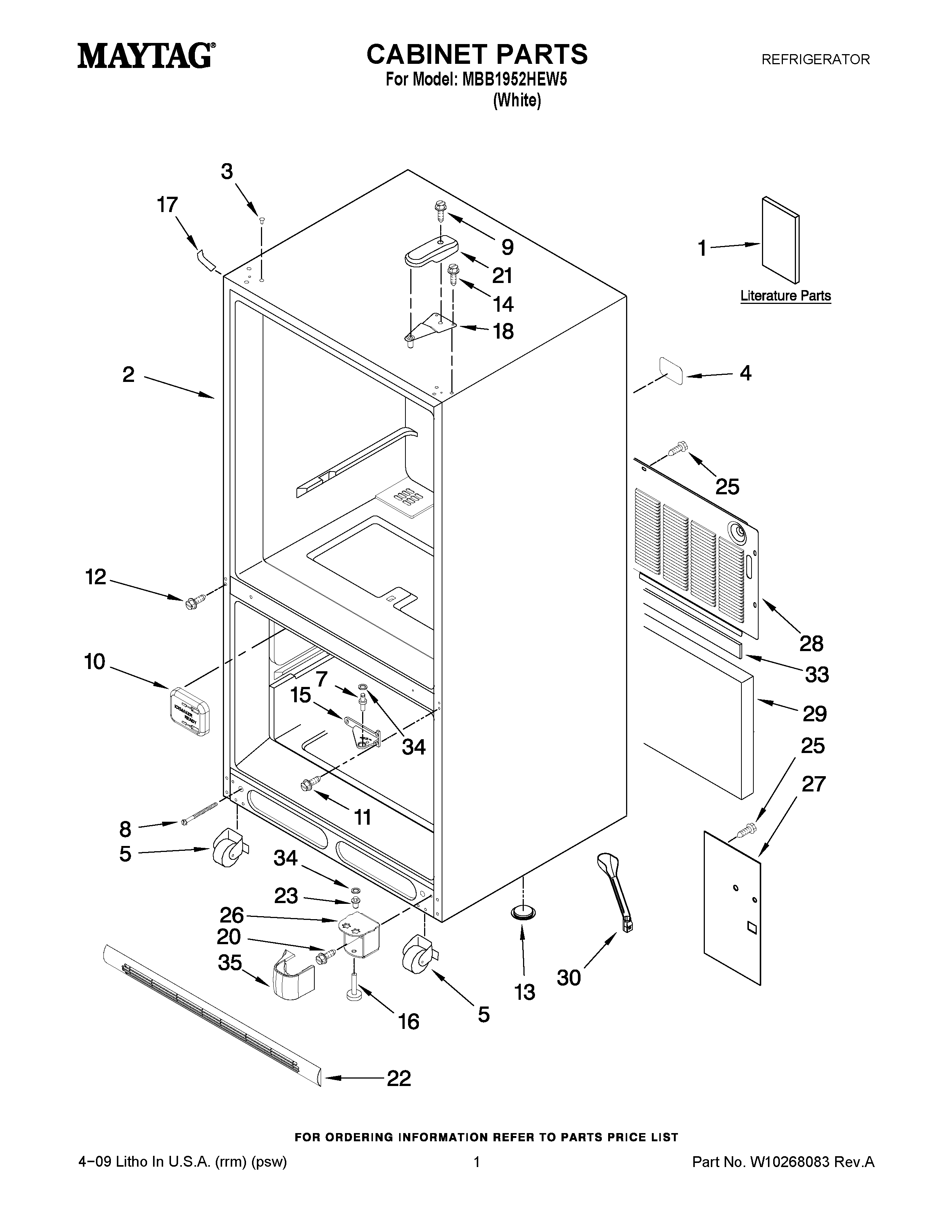

MBB1952HEW5 01 – CABINET PARTS

Products

Position	Product
1	MAY W10238839
1	Energy Guide
1	Owners Manual
3	MAY M0310729
4	LABEL-FILL TUBE
5	ROLLER ASSY.(REAR)
7	PIN, CENTER HINGE (REAR)
8	Bolt, Adjusting (Rear)
9	MAY 12992602
10	COVER-FILL TUBE
11	SCREW (6)
12	MAY 12990101
13	A3076901 Whirlpool Refrigerator Plug
14	SCREW (6)
15	MAY 12607103
16	Foot Brake (2)
17	Cover, Corner (2) (White)
18	MAY 12566606ED
20	Screw (8)
21	MAY 12477601W
22	Grille Assembly (Includes Clips) (White)
23	MAY 10200802
25	SCREW (10)
26	MAY 12465002WD
27	MAY W10217701
28	MAY W10210978
29	Insulation, Sound
30	MAY W10210987
33	MAY B5759655
34	MAY M0274057
35	MAY 12561901W
