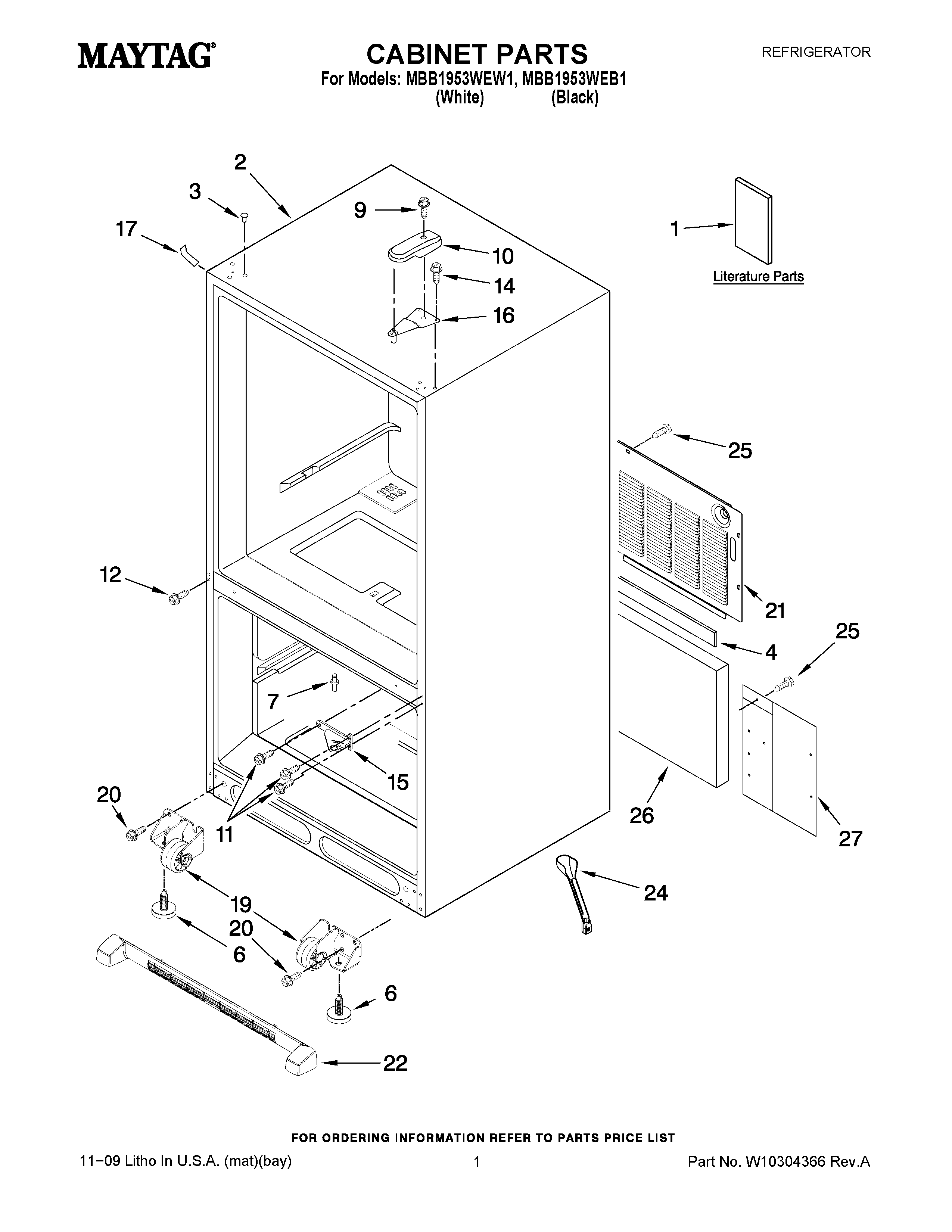

MBB1953WEB1 01 – CABINET PARTS

Products

Position	Product
1	MAY W10245040
1	OWNERS MANUAL
1	MAY W10279329
2	LINER (NOT A SERVICEABLE PART)
3	MAY M0310731
3	MAY M0310729
4	MAY B5759655
6	Foot Brake (2)
7	PIN, CENTER HINGE (REAR)
9	MAY 12992602
10	MAY 12477601W
10	COVER, HINGE(BLACK)
11	MAY 12990101
12	Screw (8)
14	SCREW (6)
15	MAY 12607104ED
15	MAY 12607103WD
16	MAY 12566606ED
17	Cover, Corner (2) (White)
17	COVER, CORNER (BLACK)
19	ROLLER ASSY.(REAR)
20	Screw (8)
21	MAY W10210978
22	Grille Assembly (Includes Clips) (Black)
22	Grille Assembly (Includes Clips) (White)
24	MAY W10210987
25	SCREW (10)
26	Insulation, Sound
27	MAY W10217701
