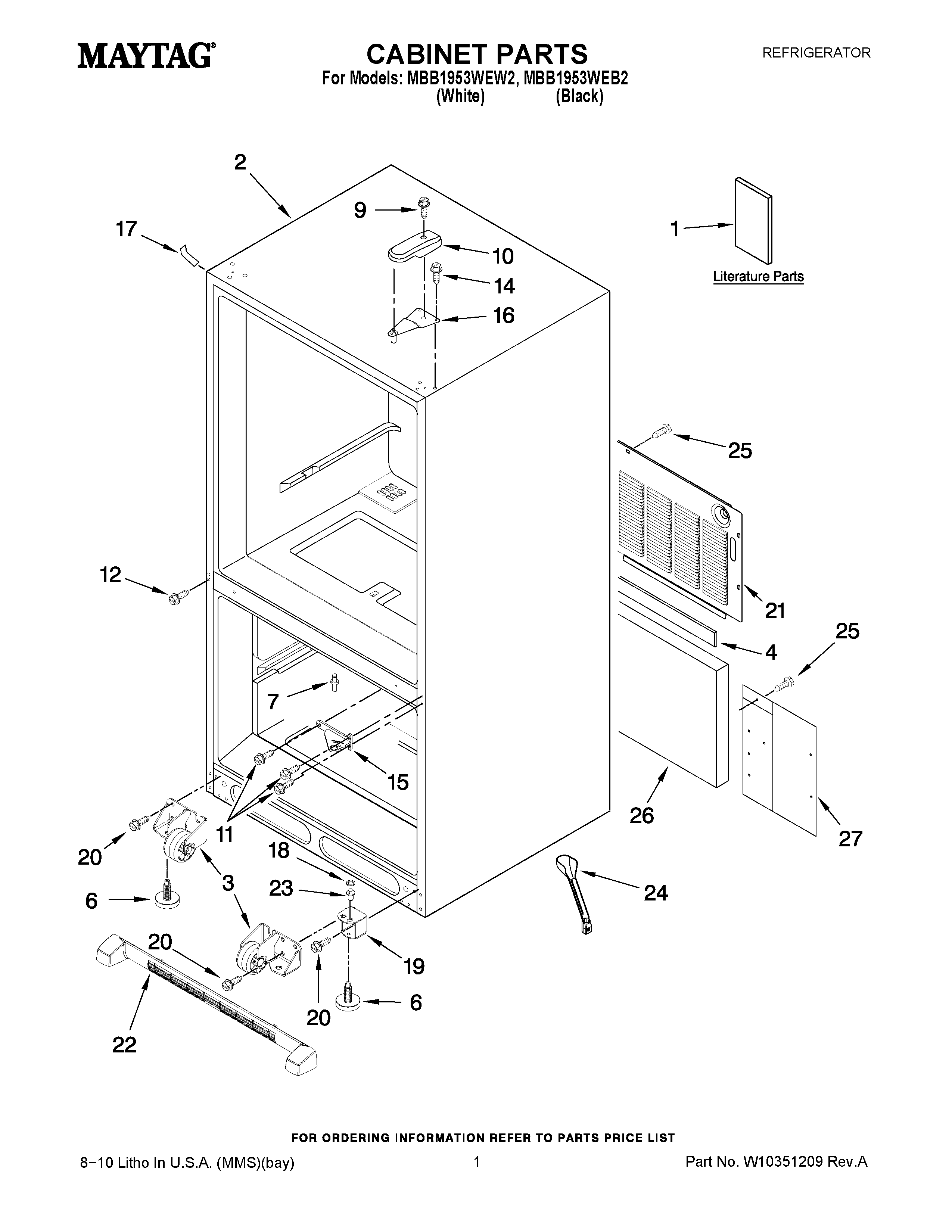

MBB1953WEB2 01 – CABINET PARTS

MBB1953WEB2 01 – CABINET PARTS

Written by

in

MBB1953WEB2 01 – CABINET PARTS

Products

PositionProduct
1MAY W10245040
1OWNERS MANUAL
1MAY W10322959
2LINER (NOT A SERVICEABLE PART)
3ROLLER ASSY. (FRONT) (RIGHT)
3ROLLER ASSY. (FRONT) (LEFT)
4MAY B5759655
6Brake, Foot
7PIN, CENTER HINGE (REAR)
9MAY 12992602
10MAY 12477601W
10COVER, HINGE(BLACK)
11MAY 12990101
12Screw (8)
14SCREW (6)
15MAY 12607103WD
15MAY 12607104ED
16MAY 12566606ED
17Cover, Corner (2) (White)
17COVER, CORNER (BLACK)
18MAY M0274062
18MAY M0274057
19MAY W10325141
19MAY W10315062
19ROLLER ASSY.(REAR)
20Screw (8)
21MAY W10210978
22MAY 10200802
22Grille Assembly (White)
22Grille Assembly (Black)
24MAY W10210987
25SCREW (10)
26Insulation, Sound
27MAY W10217701
