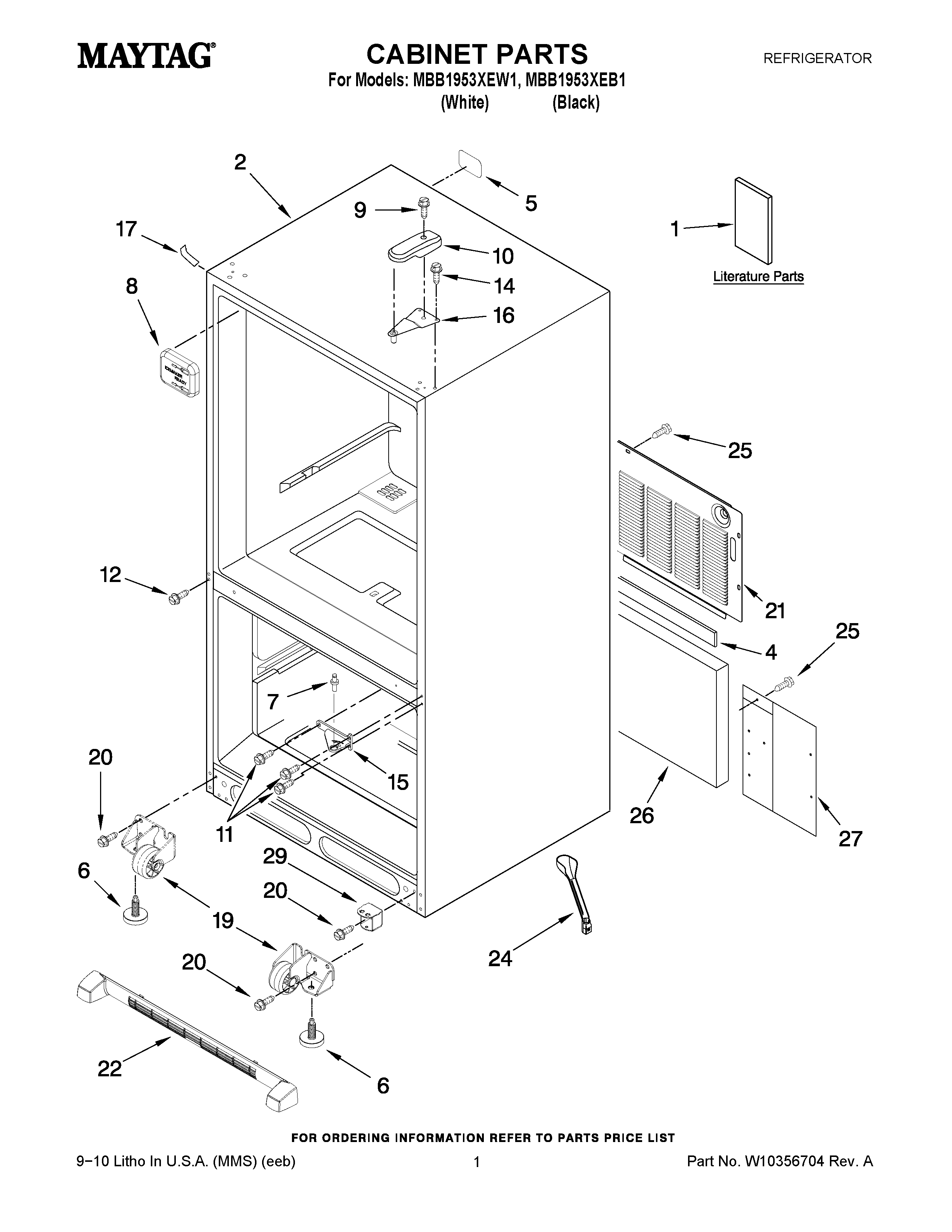

MBB1953XEB1 01 – CABINET PARTS

MBB1953XEB1 01 – CABINET PARTS

Written by

in

MBB1953XEB1 01 – CABINET PARTS

Products

PositionProduct
1MAY W10325961
1OWNERS MANUAL
1MAY W10322959
2LINER (NOT A SERVICEABLE PART)
4MAY B5759655
5LABEL-FILL TUBE
6Brake, Foot
7PIN, CENTER HINGE (REAR)
8COVER-FILL TUBE
9MAY 12992602
10MAY 12477601W
10COVER, HINGE(BLACK)
11MAY 12990101
12Screw (8)
14SCREW (6)
15MAY 12607103WD
15MAY 12607104ED
16MAY 12566606ED
17Cover, Corner (2) (White)
17COVER, CORNER (BLACK)
19ROLLER ASSY. (FRONT) (RIGHT)
19ROLLER ASSY. (FRONT) (LEFT)
20Screw (8)
21MAY W10210978
22Grille Assembly (Black)
22Grille Assembly (White)
24MAY W10210987
25SCREW (10)
26Insulation, Sound
27MAY W10217701
29MAY W10315062
29MAY W10325141
