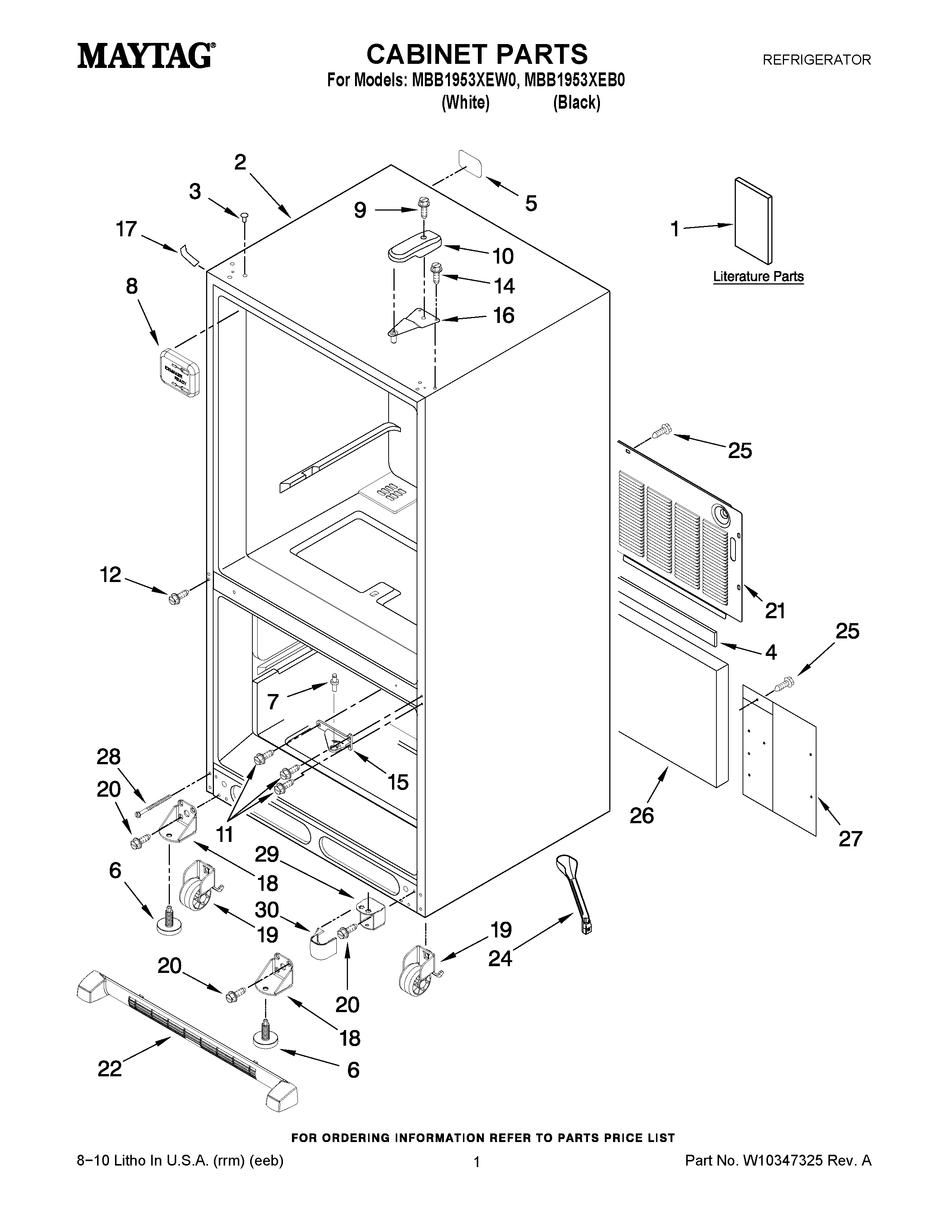

MBB1953XEW0 01 – CABINET PARTS

Products

Position	Product
1	MAY W10325961
1	OWNERS MANUAL
1	MAY W10308611
2	LINER (NOT A SERVICEABLE PART)
3	MAY M0310731
3	MAY M0310729
4	MAY B5759655
5	LABEL-FILL TUBE
6	Foot Brake (2)
7	PIN, CENTER HINGE (REAR)
8	COVER-FILL TUBE
9	MAY 12992602
10	COVER, HINGE(BLACK)
10	MAY 12477601W
11	MAY 12990101
12	Screw (8)
14	SCREW (6)
15	MAY 12607104ED
15	MAY 12607103WD
16	MAY 12566606ED
17	COVER, CORNER (BLACK)
17	Cover, Corner (2) (White)
18	BRACKET, FOOT
19	ROLLER ASSY.(REAR)
20	Screw (8)
21	MAY W10210978
22	Grille Assembly (Includes Clips) (White)
22	Grille Assembly (Includes Clips) (Black)
24	MAY W10210987
25	SCREW (10)
26	Insulation, Sound
27	MAY W10217701
28	Bolt, Adjusting (Rear)
29	MAY 12465005ED
29	MAY 12465002WD
30	Cover, Lw Hinge (Black)
30	MAY 12561901W
