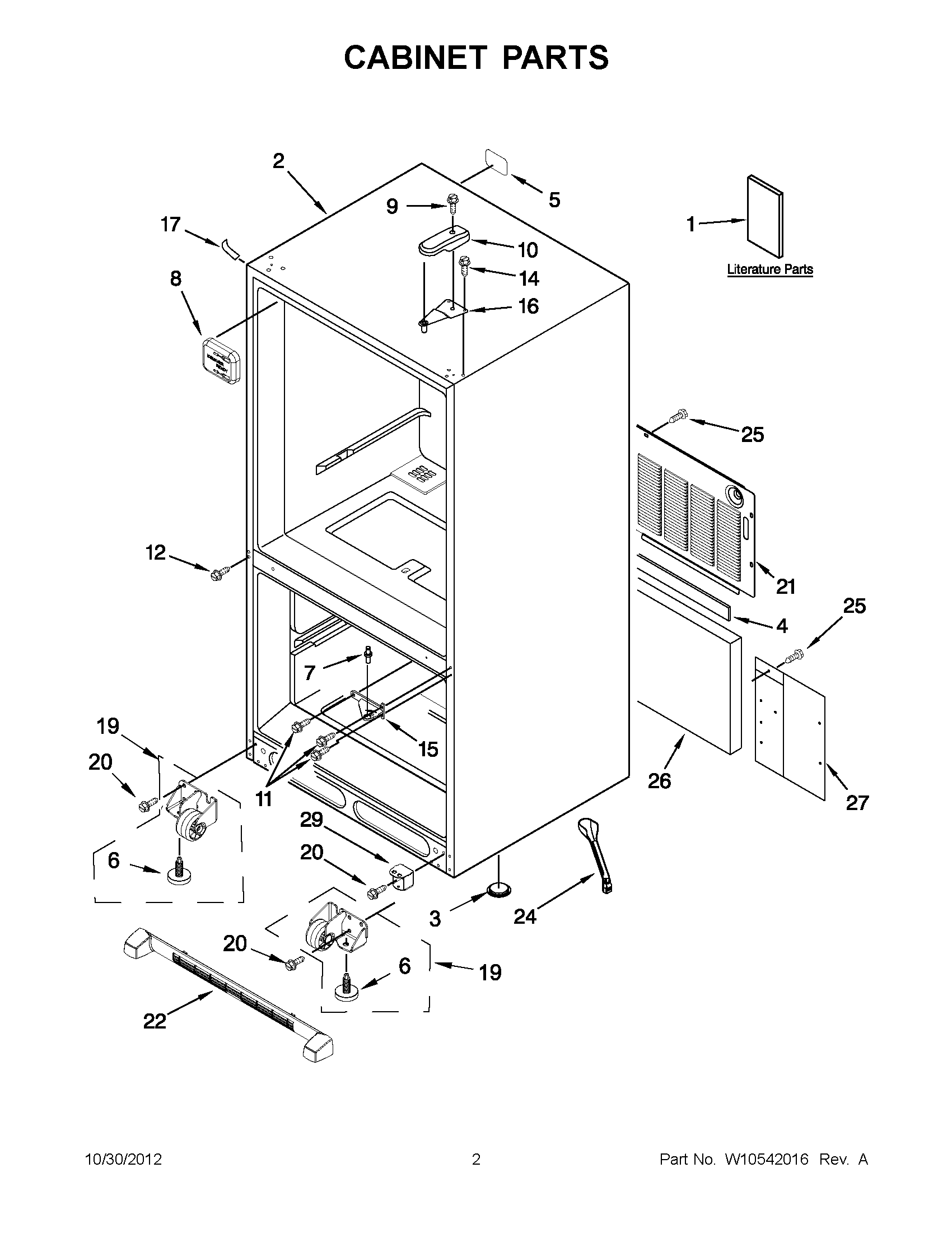

MBB1953XEW3 01 – CABINET PARTS

Products

PositionProduct
1MAY W10325961
1MAY W10366206SP
1MAY W10517966
2LINER (NOT A SERVICEABLE PART)
3A3076901 Whirlpool Refrigerator Plug
4MAY B5759655
5LABEL-FILL TUBE
6Brake, Foot
7PIN, CENTER HINGE (REAR)
8COVER-FILL TUBE
9MAY 12992602
10MAY 12477601W
11MAY W10339086
12Screw (8)
14SCREW (6)
15MAY 12607103WD
16MAY 12566606ED
17Cover, Corner (2) (White)
19ROLLER ASSEMBLY (RIGHT HAND)
19ROLLER ASSEMBLY (LEFT HAND)
20Screw (8)
21MAY W10210978
22Grille Assembly (White)
24TUBE-DRAIN
25SCREW (10)
26Insulation, Sound
27MAY W10217701
29MAY W10490811
