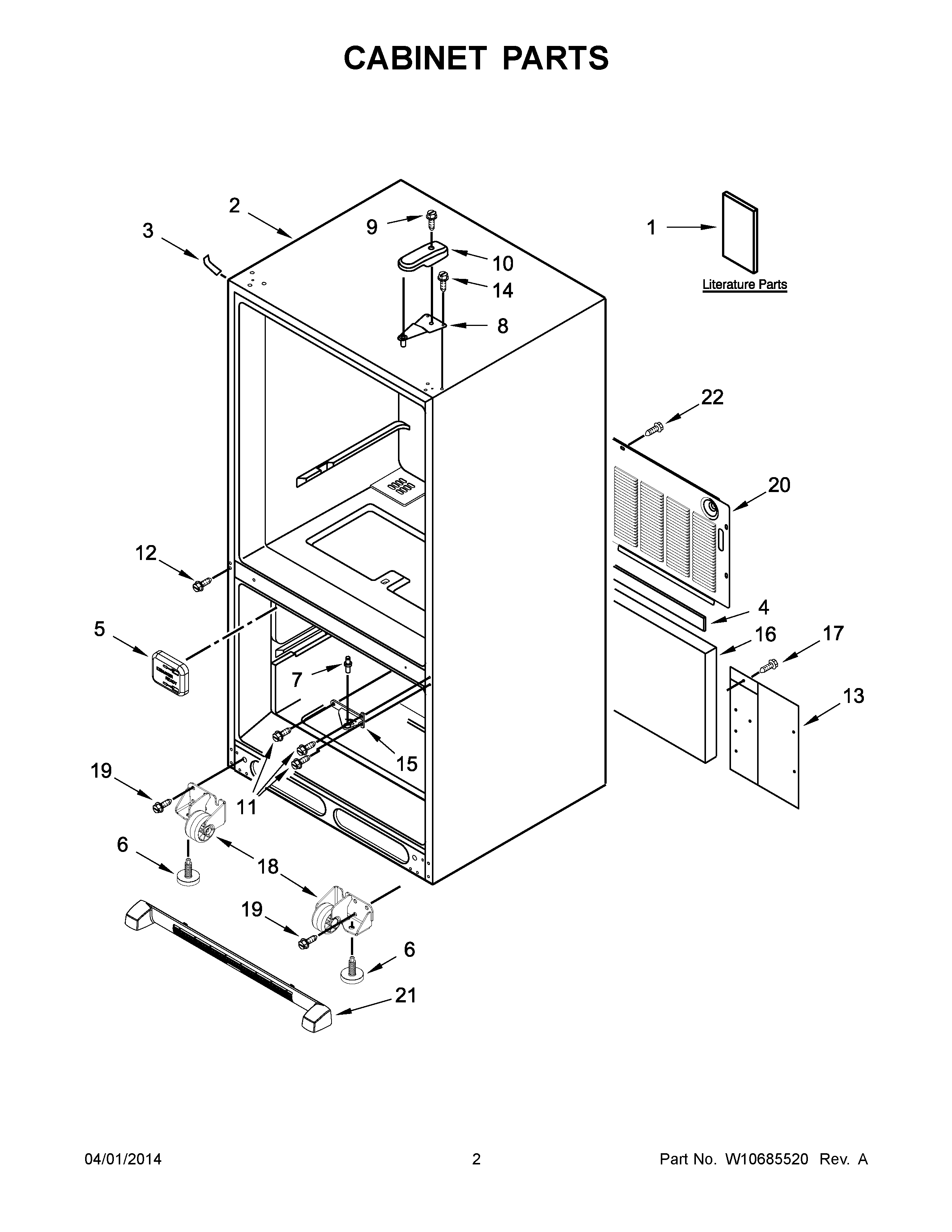

MBB1957DEE00 02 – CABINET PARTS

MBB1957DEE00 02 – CABINET PARTS

Written by

in

MBB1957DEE00 02 – CABINET PARTS

Products

PositionProduct
1MAY W10667463
1MAY W10621529
1MAY W10517966
2LINER (NOT A SERVICEABLE PART)
3COVER, CORNER (GREY)
3COVER, CORNER (BLACK)
3Cover, Corner (2) (White)
4MAY B5759655
5COVER-FILL TUBE
6Brake, Foot
7MAY 10351006
8MAY 12566606ED
9MAY 12992602
10MAY 12477601AP
10MAY 12477601W
10COVER, HINGE(BLACK)
11MAY 12990101
12Screw (8)
13MAY W10217701
14SCREW (6)
15MAY 12607104ED
15MAY 12607103WD
15MAY 12607103AP
16Insulation, Sound
17MAY 12991604
18ROLLER ASSEMBLY (RIGHT HAND)
18ROLLER ASSEMBLY (LEFT HAND)
19Screw (8)
20MAY W10210978
21ASSEMBLY, GRILLE (WHITE)
21ASSEMBLY, GRILLE (BLACK)
22SCREW (10)
