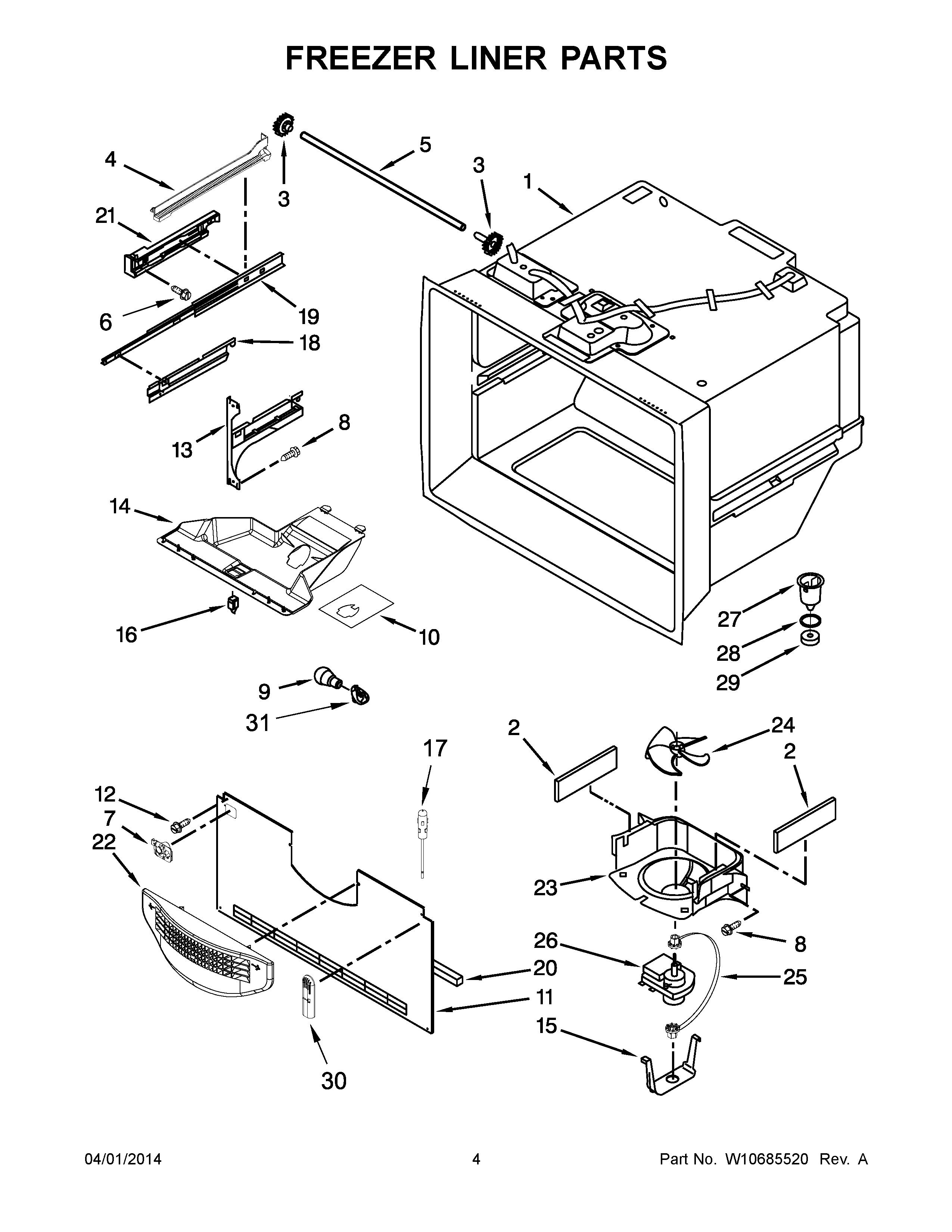

MBB1957DEM00 03 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	MAY W10516603
4	MAY W10516602
5	SHAFT-RACK
6	Screw (6)
7	MAY 12932103
8	Screw (8)
9	MAY W10565137
10	FOIL-FZ LIGHT
11	MAY W10308414
12	MAY 12990101
13	MAY W10330991
13	MAY W10330993
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	MAY 12466105
17	MAY 12791409SP
18	CRADLE-BASKET (LEFT HAND)
18	CRADLE-BASKET (RIGHT HAND)
19	MAY W10120018
20	MAY A3189394
21	ADAPTER, SLIDE (RIGHT HAND)
21	ADAPTER, SLIDE (LEFT HAND)
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10121318
26	MAY W10128551
27	MAY W10585187
28	MAY M0500703
29	Gasket
30	MAY 12815301
31	W11447232 Whirlpool Refrigerator Socket
