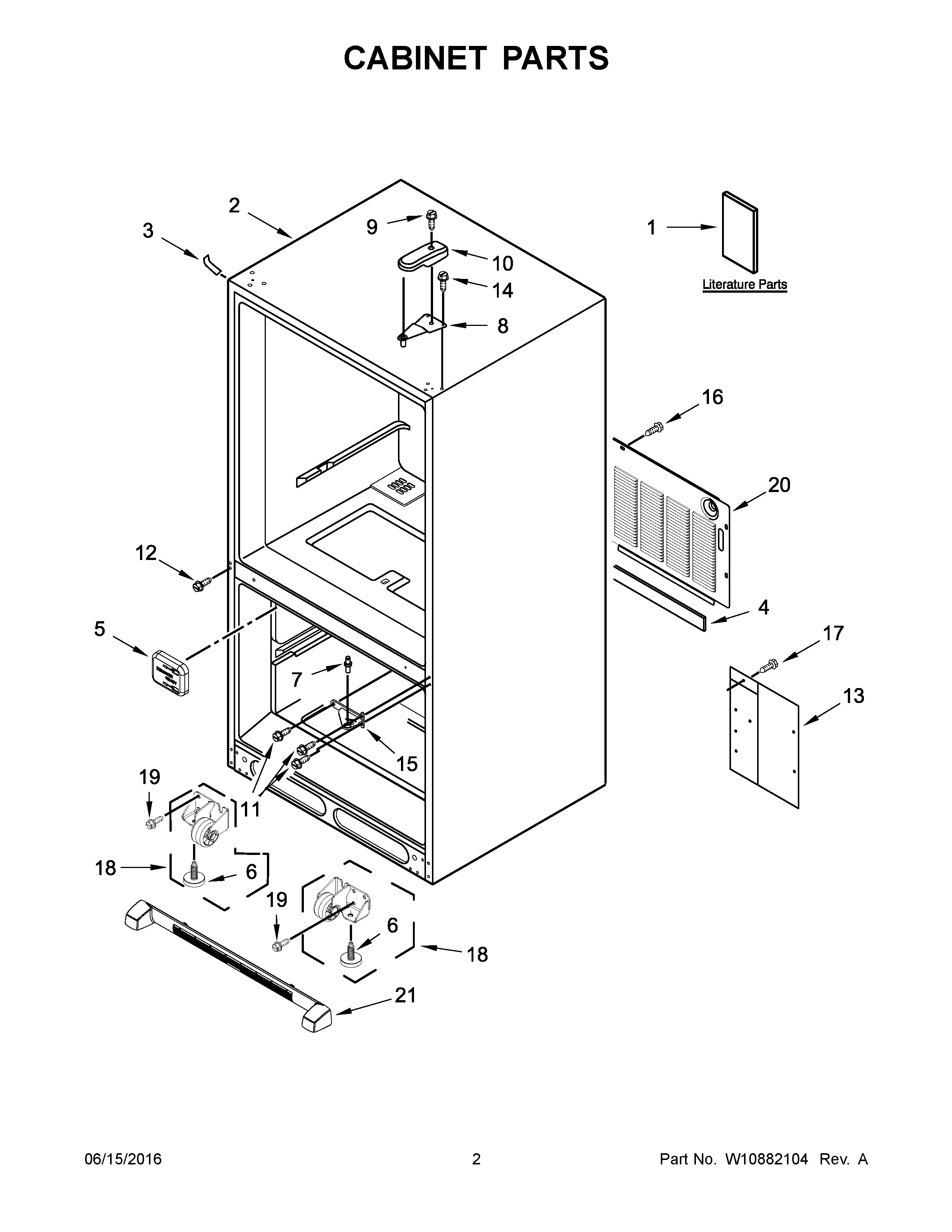

MBB1957FEH00 02 – CABINET PARTS

MBB1957FEH00 02 – CABINET PARTS

Written by

in

MBB1957FEH00 02 – CABINET PARTS

Products

Position	Product
1A	MAY W10853956
1	MAY W10621529
1B	MAY W10517966
2	LINER (NOT A SERVICEABLE PART)
3A	COVER, CORNER (BLACK)
3	Cover, Corner (2) (White)
4	MAY B5759655
5	COVER-FILL TUBE
6	Brake, Foot
7	MAY 10351006
8	MAY 12566606ED
9	MAY 12992602
10	MAY 12477601W
10A	COVER, HINGE(BLACK)
11	MAY 12990101
12	Screw (8)
13	MAY W10217701
14	SCREW (6)
15A	MAY 12607104ED
15	MAY 12607103WD
16	SCREW (10)
17	MAY 12991604
18A	ROLLER ASSEMBLY (RIGHT HAND)
18	ROLLER ASSEMBLY (LEFT HAND)
19	MAY W10709365
20	MAY W10210978
21	ASSEMBLY, GRILLE (WHITE)
21A	ASSEMBLY, GRILLE (BLACK)
