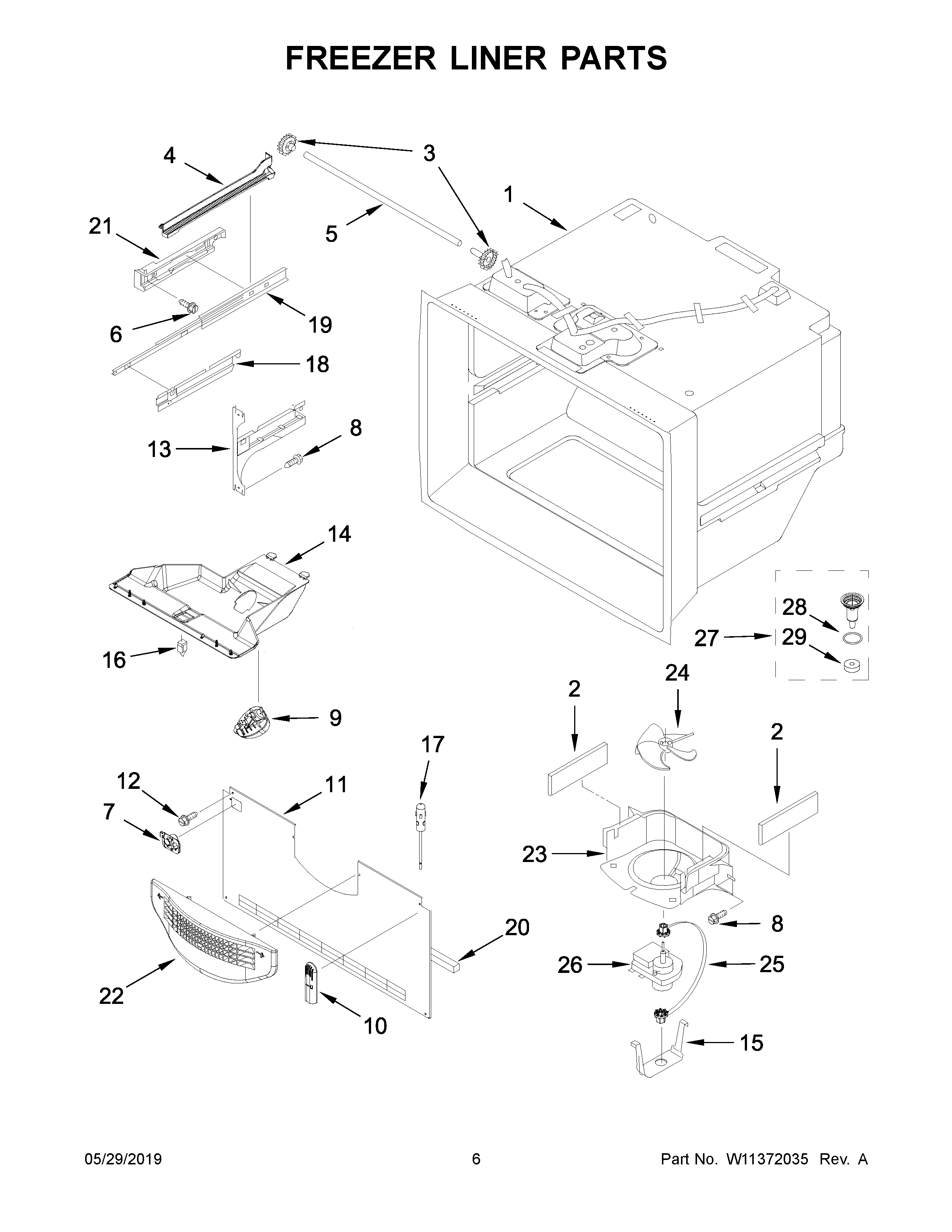

MBB1957FEW01 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	MAY W10516603
4A	MAY W10516602
5	MAY W10802340
6	Screw (6)
7	MAY W11261524
8	Screw (8)
9	MAY W11251749
10	MAY 12815301
11	MAY W10308414
12	MAY 12990101
13	MAY W10330991
13A	MAY W10330993
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	SWITCH, LIGHT
17	MAY 12791409SP
18	CRADLE-BASKET (LEFT HAND)
18A	CRADLE-BASKET (RIGHT HAND)
19	MAY W10120018
20	MAY A3189394
21A	ADAPTER, SLIDE (RIGHT HAND)
21	ADAPTER, SLIDE (LEFT HAND)
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10121318
26	MAY W10128551
27	MAY W10662407
28	MAY M0500703
29	Gasket
