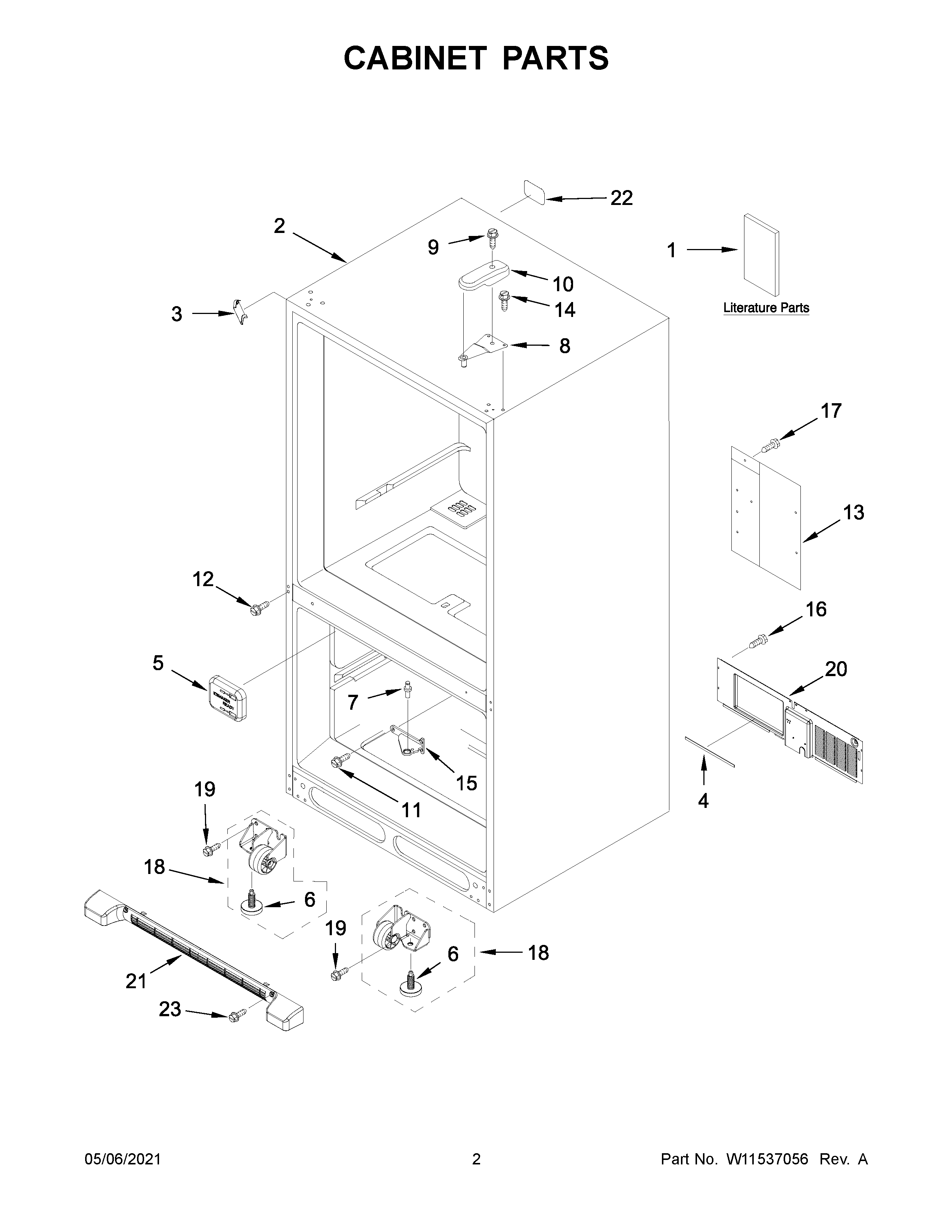

MBB1957FEW03 02 – CABINET PARTS

MBB1957FEW03 02 – CABINET PARTS

Written by

in

MBB1957FEW03 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1OWNER'S MANUAL
1BTECH SHEET
2CABINET (NOT A SERVICEABLE PART)
312587703W Whirlpool Refrigerator Cover
4B5759655 Whirlpool Refrigerator Gasket
5COVER. FILL TUBE
6WPW10141622 Whirlpool Leveler
7WP67006642 Whirlpool Refrigerator Pin
8WP12566606ED Whirlpool Refrigerator Door Hinge
9WP8281196 Whirlpool Screw
1067001014 Whirlpool Refrigerator Top Hinge Cover White
11W11573362 Whirlpool Screw Assembly
13W11684617 Whirlpool Valve Cover
14WP489349 Whirlpool Refrigerator Screw
15WP12607103WD Whirlpool Refrigerator Center Hinge
16SCREW
17WP489128 Whirlpool Refrigerator Screw
18AWPW10515762 Whirlpool Refrigerator Cabinet Roller
18WPW10515763 Whirlpool Refrigerator Cabinet Roller
1967006564 Whirlpool Refrigerator Screw
20W10210978 Whirlpool Refrigerator Back Cover
21WPW10534166 Whirlpool Refrigerator Front Grille
22W11685757 Whirlpool Label
23WP98165 Whirlpool Screw
