MBB1957FEW05 03 – REFRIGERATOR LINER PARTS
Written by
in

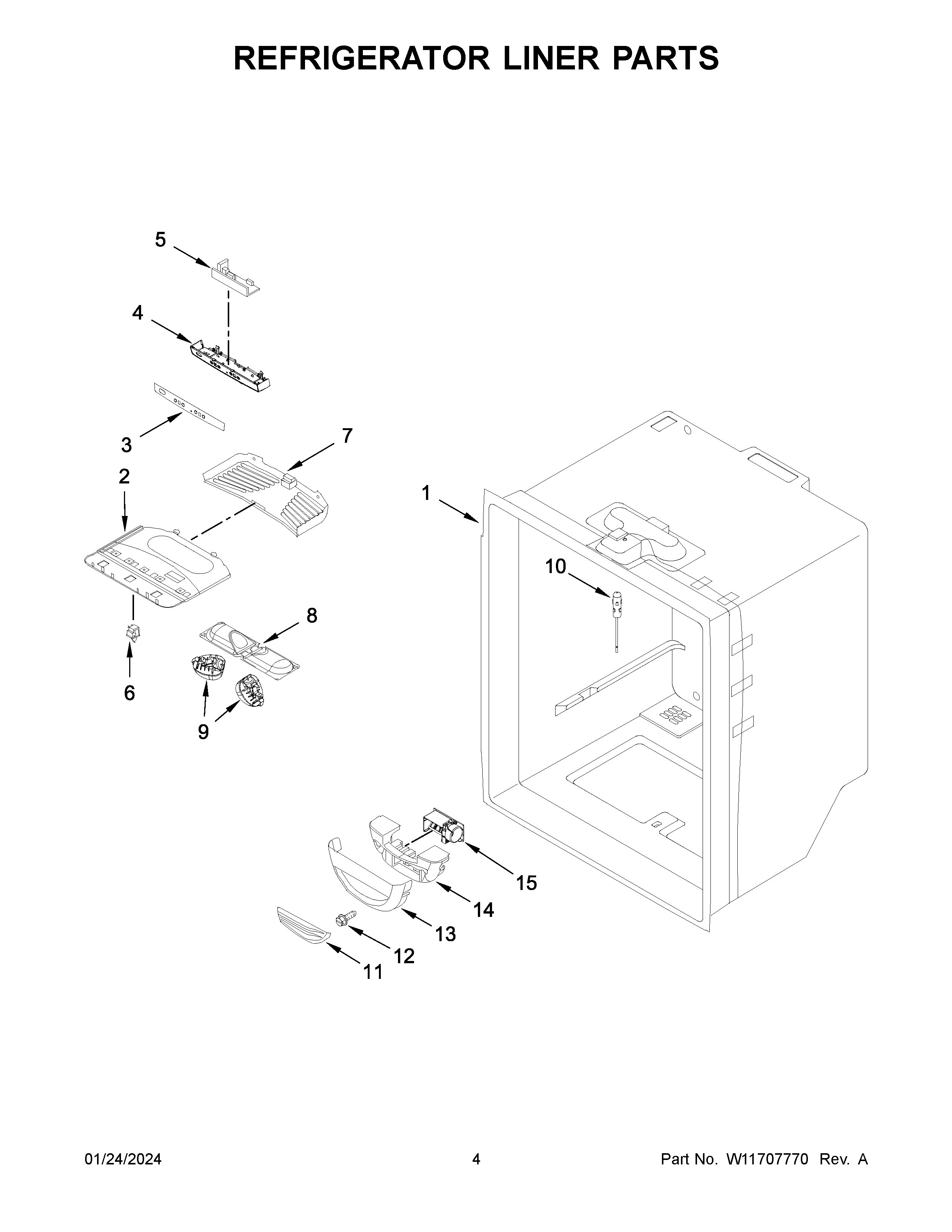

MBB1957FEW05 03 – REFRIGERATOR LINER PARTS
Products
Position
Product
NI
W11619328 Whirlpool Wire Harness
NI
FOLLOWING PARTS NOT ILLUSTRATED
1
LINER (NOT A SERVICEABLE PART)
2
W10464757 Whirlpool Refrigerator Housing
3
W10593588 Whirlpool Refrigerator Overlay
4
WPW10464769 Whirlpool Refrigerator Housing
5
W11524469-includeCORE Whirlpool W11524469 Refrigerator Electronic Control Board
6
W11123941 Whirlpool Refrigerator Switch
7
W11284721 Whirlpool Refrigerator Cover
8
W10443023 Whirlpool Refrigerator Housing
9
MODULE
10
12002355 Whirlpool Refrigerator Thermistor Kit
11
67003900 Whirlpool Refrigerator Insert Damper Cover
12
WP400021-1 Whirlpool Screw
13
WP12806701 Whirlpool Refrigerator Box Cover
14
INSULATION
15
WPW10594330 Whirlpool Refrigerator Control
←
