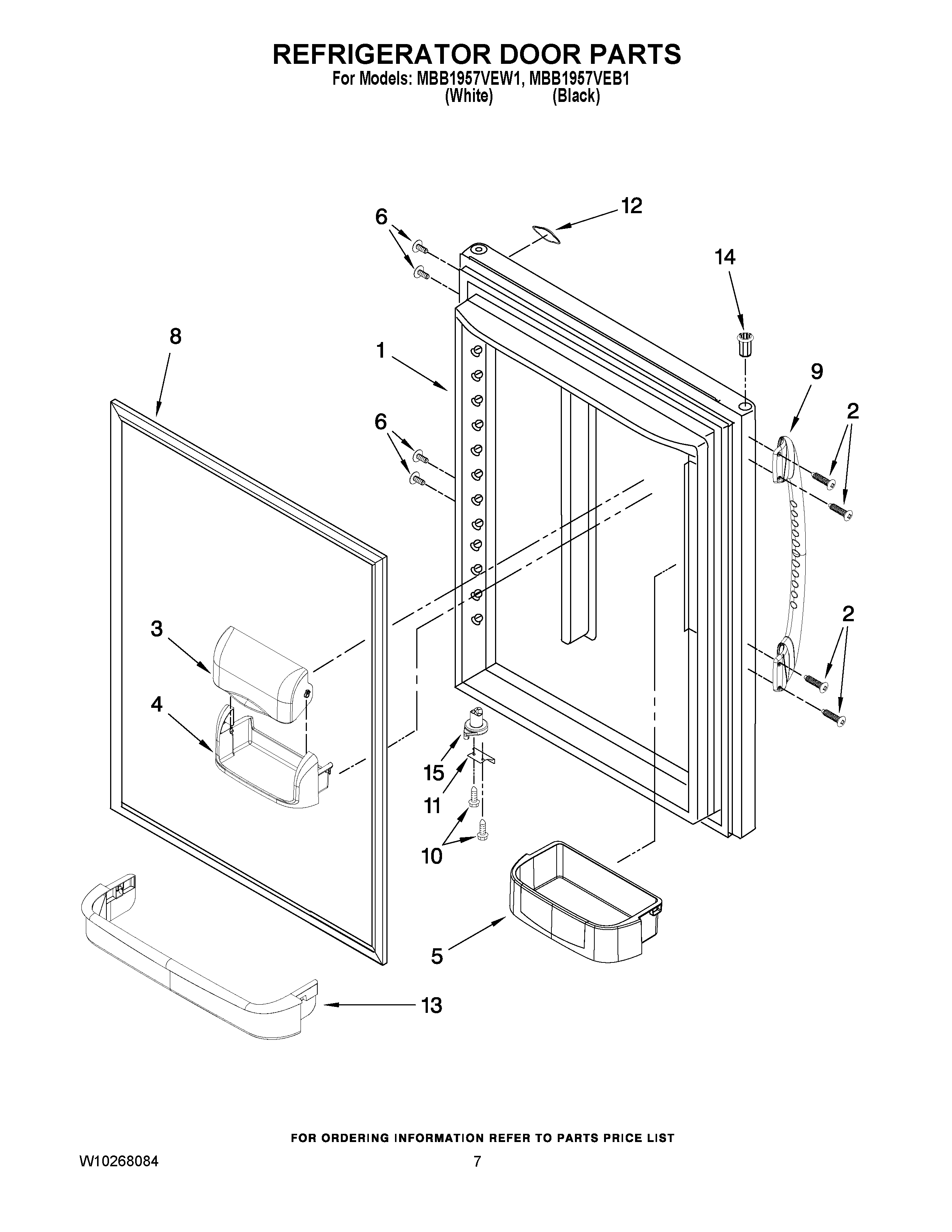

MBB1957VEW1 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (BLACK)
1	REFRIGERATOR DOOR (WHITE)
2	Screw
2	Screw
3	MAY 12804701SP
4	MAY 12369502SP
5	MAY 12801901V
5	MAY 12801902V
6	MAY 12991103
6	Screw,Handle Hole (Black)
8	MAY W10164030
8	Gasket, Door Magnetic (Black)
9	MAY 12781004W
9	MAY 12781004B
10	MAY 12990504
11	Stop, Door (Black)
11	MAY 10447111
12	Nameplate
13	RETAINER, DOOR
14	BUSHING, DOOR UPPER RIGHT (WHITE)
14	Bushing (Black)
15	MAY 12028505W
15	MAY 12028505B
