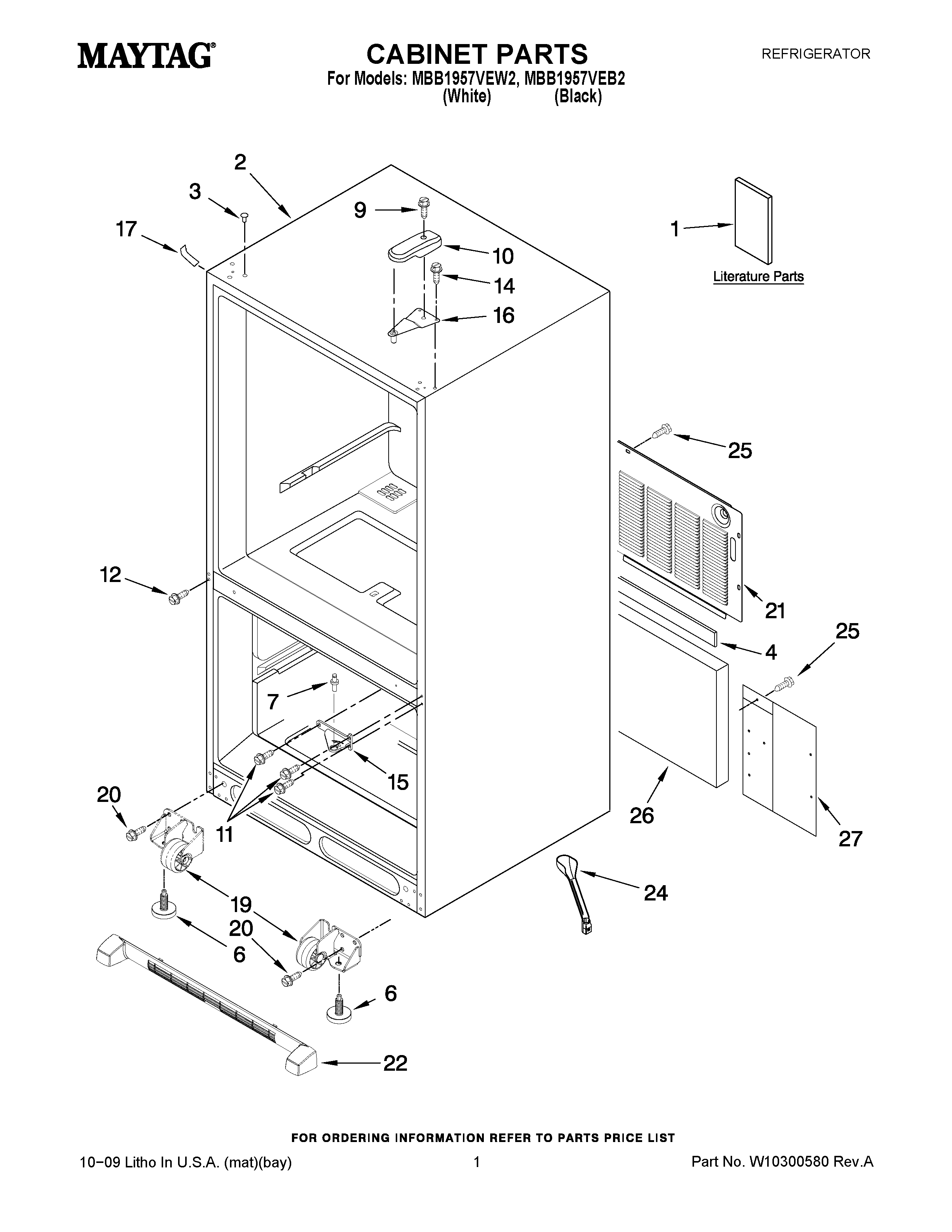

MBB1957VEW2 01 – CABINET PARTS

MBB1957VEW2 01 – CABINET PARTS

Written by

in

MBB1957VEW2 01 – CABINET PARTS

Products

PositionProduct
1MAY W10206543
1OWNERS MANUAL
1MAY W10279329
2LINER (NOT A SERVICEABLE PART)
3MAY M0310731
3MAY M0310729
4MAY B5759655
6Brake, Foot
7MAY 10351006
9MAY 12992602
10MAY 12477601W
10COVER, HINGE(BLACK)
11MAY 12990101
12Screw (8)
14SCREW (6)
15MAY 12607103WD
15MAY 12607104ED
16MAY 12566606ED
17COVER, CORNER (BLACK)
17Cover, Corner (2) (White)
19ROLLER ASSY. (FRONT) (LEFT)
19ROLLER ASSY. (FRONT) (RIGHT)
20Screw (8)
21MAY W10210978
22Grille Assembly (Black)
22Grille Assembly (White)
24MAY W10210987
25SCREW (10)
26Insulation, Sound
27MAY W10217701
