MBB1957WEB1 01 – CABINET PARTS – Aparts

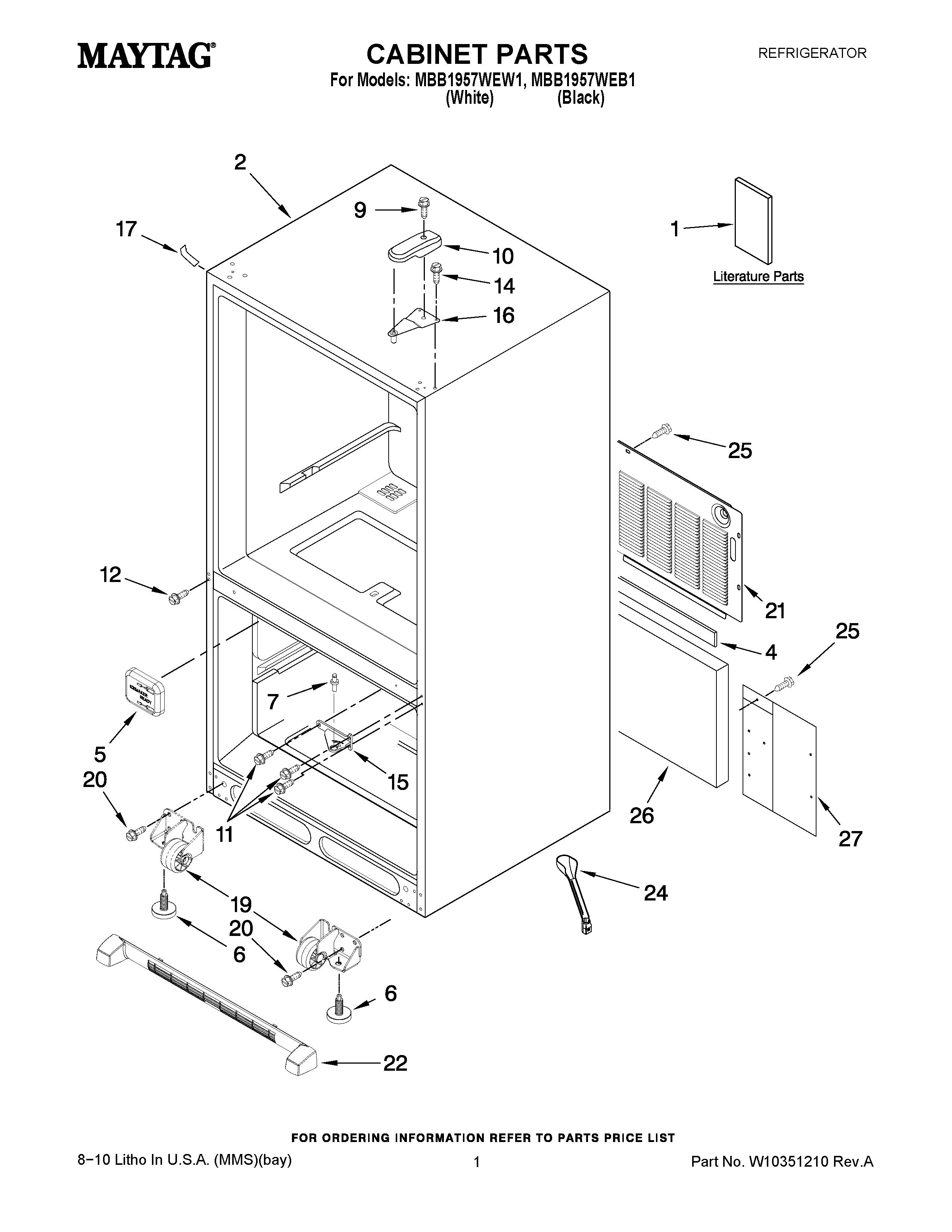

MBB1957WEB1 01 – CABINET PARTS

Products

Position	Product
1	MAY W10299310
1	OWNERS MANUAL
1	MAY W10322959
2	LINER (NOT A SERVICEABLE PART)
4	MAY B5759655
5	COVER-FILL TUBE
6	Brake, Foot
7	MAY 10351006
9	MAY 12992602
10	COVER, HINGE(BLACK)
10	MAY 12477601W
11	MAY 12990101
12	Screw (8)
14	SCREW (6)
15	MAY 12607103WD
15	MAY 12607104ED
16	MAY 12566606ED
17	COVER, CORNER (BLACK)
17	Cover, Corner (2) (White)
19	ROLLER ASSY. (FRONT) (LEFT)
19	ROLLER ASSY. (FRONT) (RIGHT)
20	Screw (8)
21	MAY W10210978
22	Grille Assembly (White)
22	Grille Assembly (Black)
24	MAY W10210987
25	SCREW (10)
26	Insulation, Sound
27	MAY W10217701
