MBB1957WEB3 01 – CABINET PARTS – Aparts

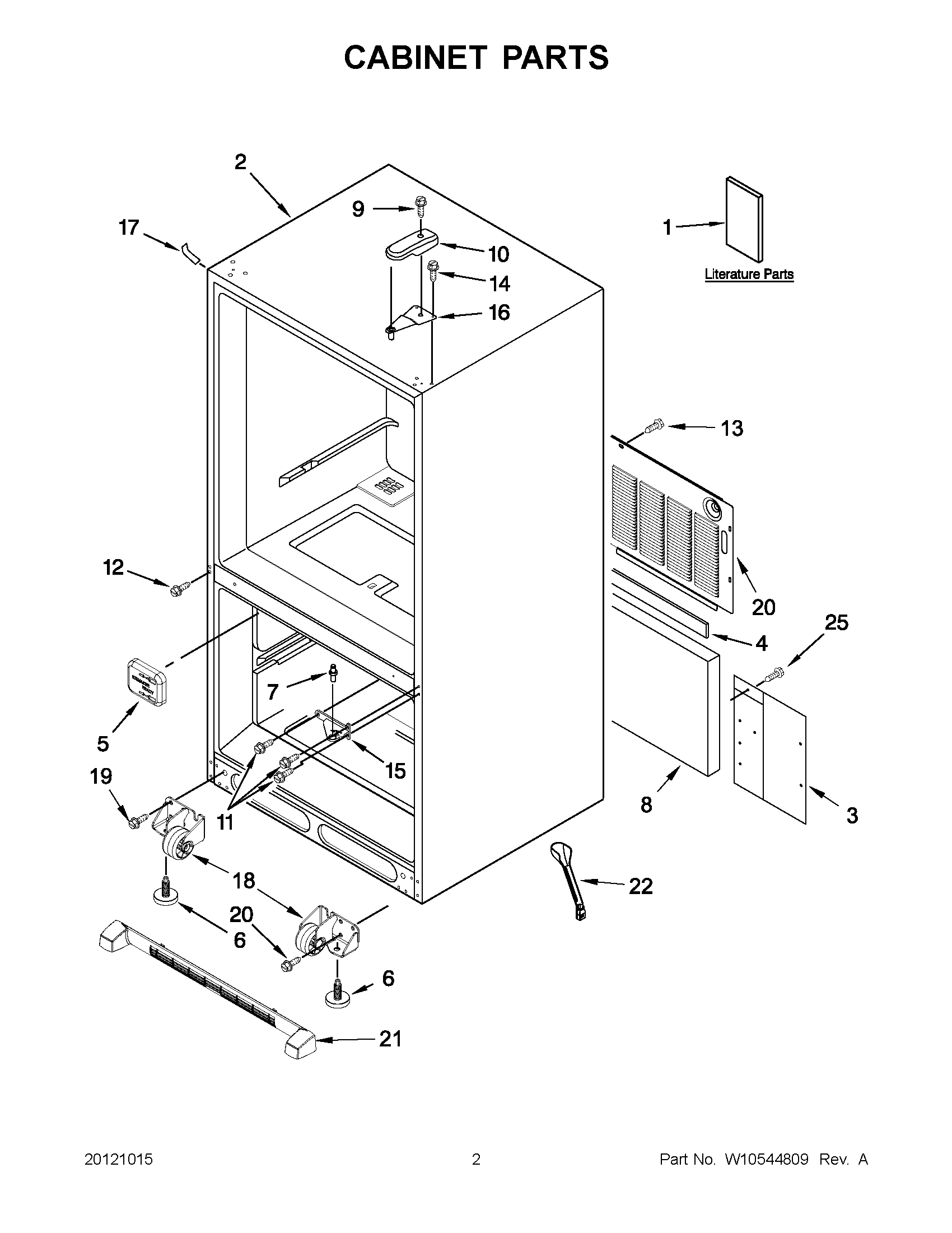

MBB1957WEB3 01 – CABINET PARTS

Products

Position	Product
1	MAY W10366206SP
1	MAY W10299310
1	MAY W10517966
2	LINER (NOT A SERVICEABLE PART)
3	MAY W10217701
4	MAY B5759655
5	COVER-FILL TUBE
6	Brake, Foot
7	MAY 10351006
8	Insulation, Sound
9	MAY 12992602
10	COVER, HINGE(BLACK)
10	MAY 12477601W
11	MAY 12990101
12	Screw (8)
13	SCREW (10)
14	SCREW (6)
15	MAY 12607104ED
15	MAY 12607103WD
16	MAY 12566606ED
17	COVER, CORNER (BLACK)
17	Cover, Corner (2) (White)
18	ROLLER ASSEMBLY (LEFT HAND)
18	ROLLER ASSEMBLY (RIGHT HAND)
19	Screw (8)
20	MAY W10210978
21	Grille Assembly (White)
21	Grille Assembly (Black)
22	MAY W10210987
