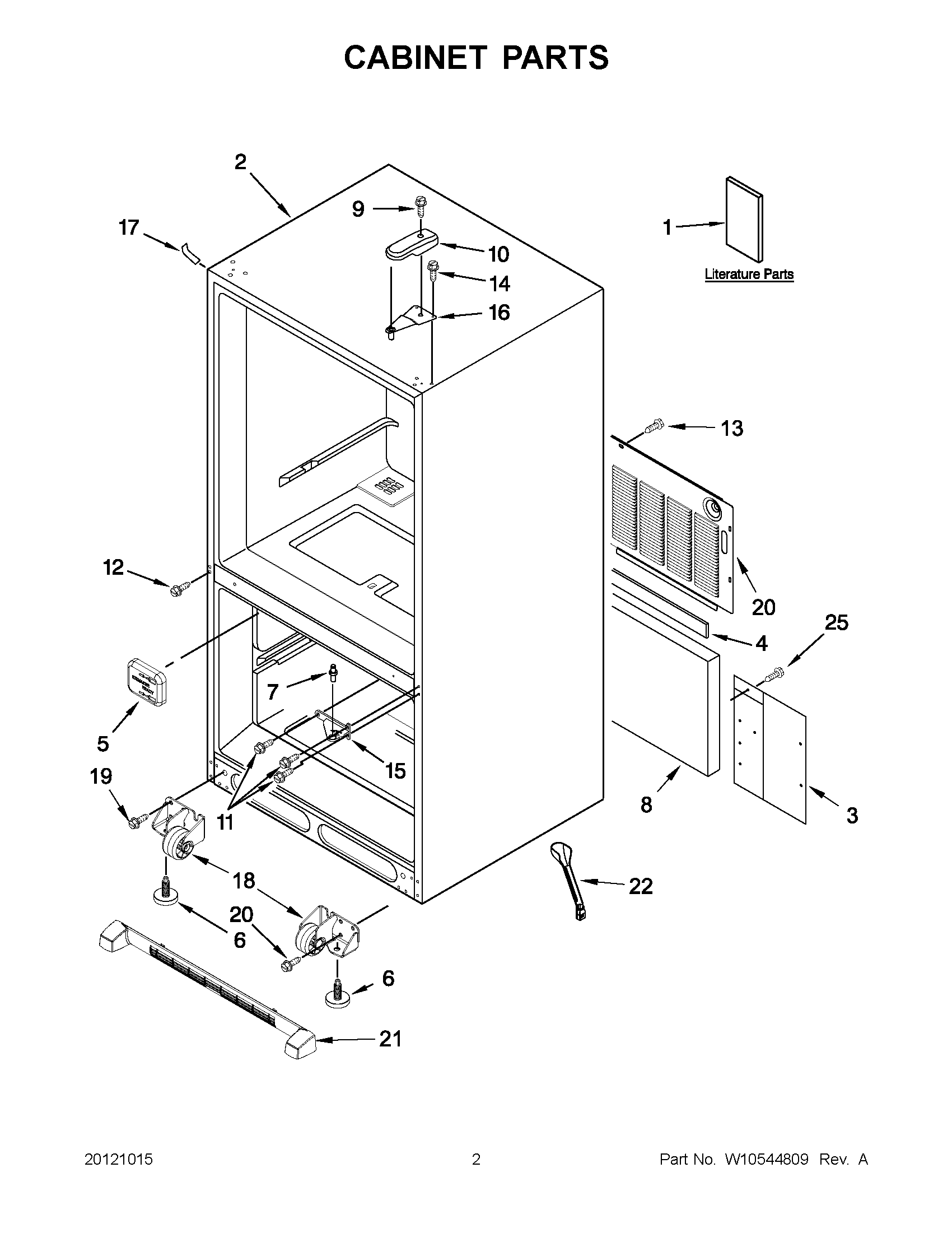

MBB1957WEW3 01 – CABINET PARTS

MBB1957WEW3 01 – CABINET PARTS

Written by

in

MBB1957WEW3 01 – CABINET PARTS

Products

PositionProduct
1MAY W10366206SP
1MAY W10299310
1MAY W10517966
2LINER (NOT A SERVICEABLE PART)
3MAY W10217701
4MAY B5759655
5COVER-FILL TUBE
6Brake, Foot
7MAY 10351006
8Insulation, Sound
9MAY 12992602
10COVER, HINGE(BLACK)
10MAY 12477601W
11MAY 12990101
12Screw (8)
13SCREW (10)
14SCREW (6)
15MAY 12607104ED
15MAY 12607103WD
16MAY 12566606ED
17COVER, CORNER (BLACK)
17Cover, Corner (2) (White)
18ROLLER ASSEMBLY (LEFT HAND)
18ROLLER ASSEMBLY (RIGHT HAND)
19Screw (8)
20MAY W10210978
21Grille Assembly (White)
21Grille Assembly (Black)
22MAY W10210987
