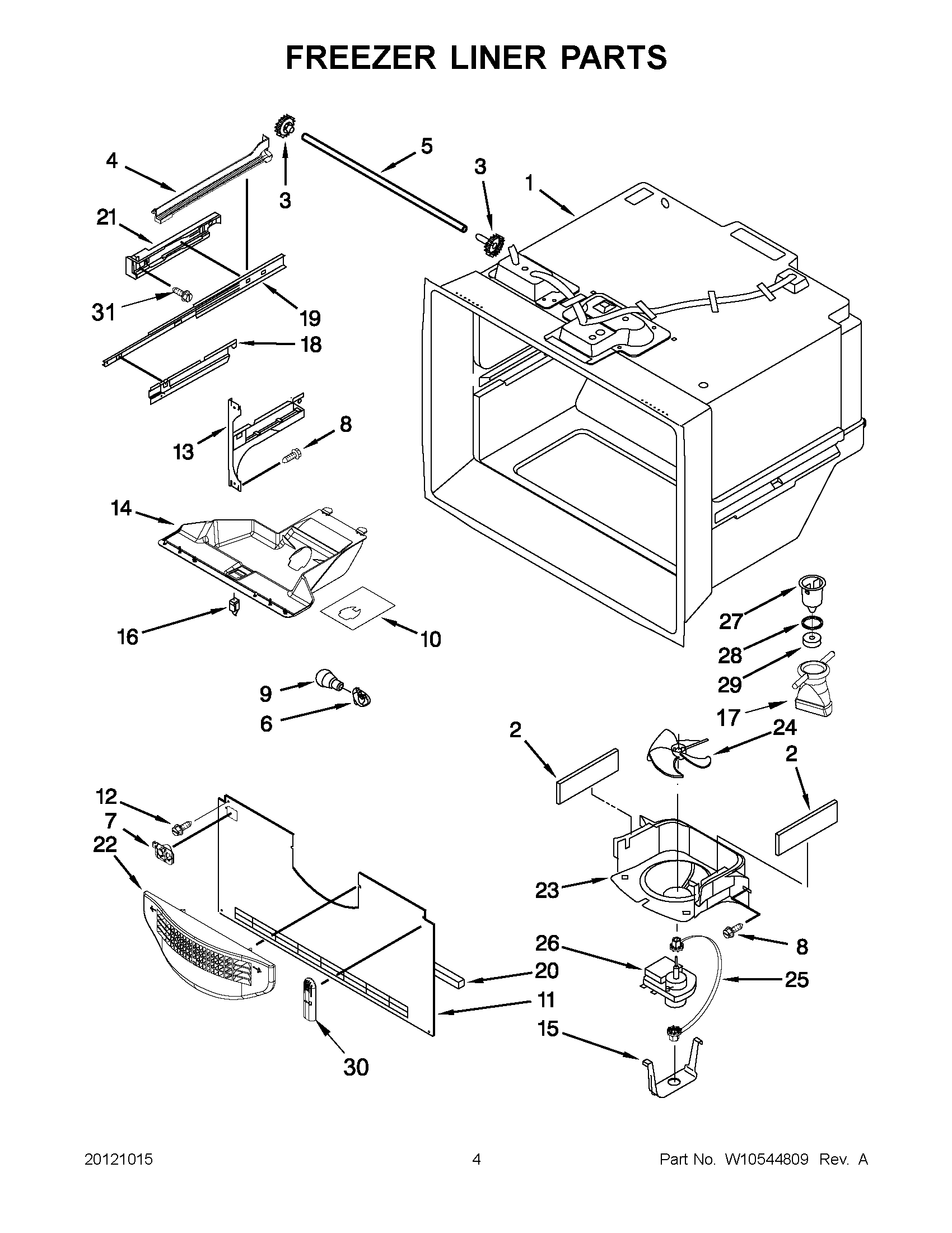

MBB1957WEW3 02 – FREEZER LINER PARTS

MBB1957WEW3 02 – FREEZER LINER PARTS

Written by

in

MBB1957WEW3 02 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
312002497 Whirlpool Refrigerator Drawer Gear Kit
4MAY W10516603
4MAY W10516602
5SHAFT-RACK
6W11447232 Whirlpool Refrigerator Socket
7MAY 12932103
8Screw (8)
9BULB, LIGHT
10FOIL-FZ LIGHT
11MAY W10308414
12MAY 12990101
13MAY W10330991
13MAY W10330993
14MODULE-FZ LIGHT
15CLIP, EVAP. MOTOR
16MAY 12466105
17MAY W10309238
18CRADLE-BASKET (RIGHT HAND)
18CRADLE-BASKET (LEFT HAND)
19SLIDE, DRAWER (2)
20MAY A3189394
21ADAPTER, SLIDE (RIGHT HAND)
21ADAPTER, SLIDE (LEFT HAND)
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25MAY W10121318
26MAY W10128551
27MAY D7753903
28MAY M0500703
29Gasket
30MAY 12815301
31Screw (6)
