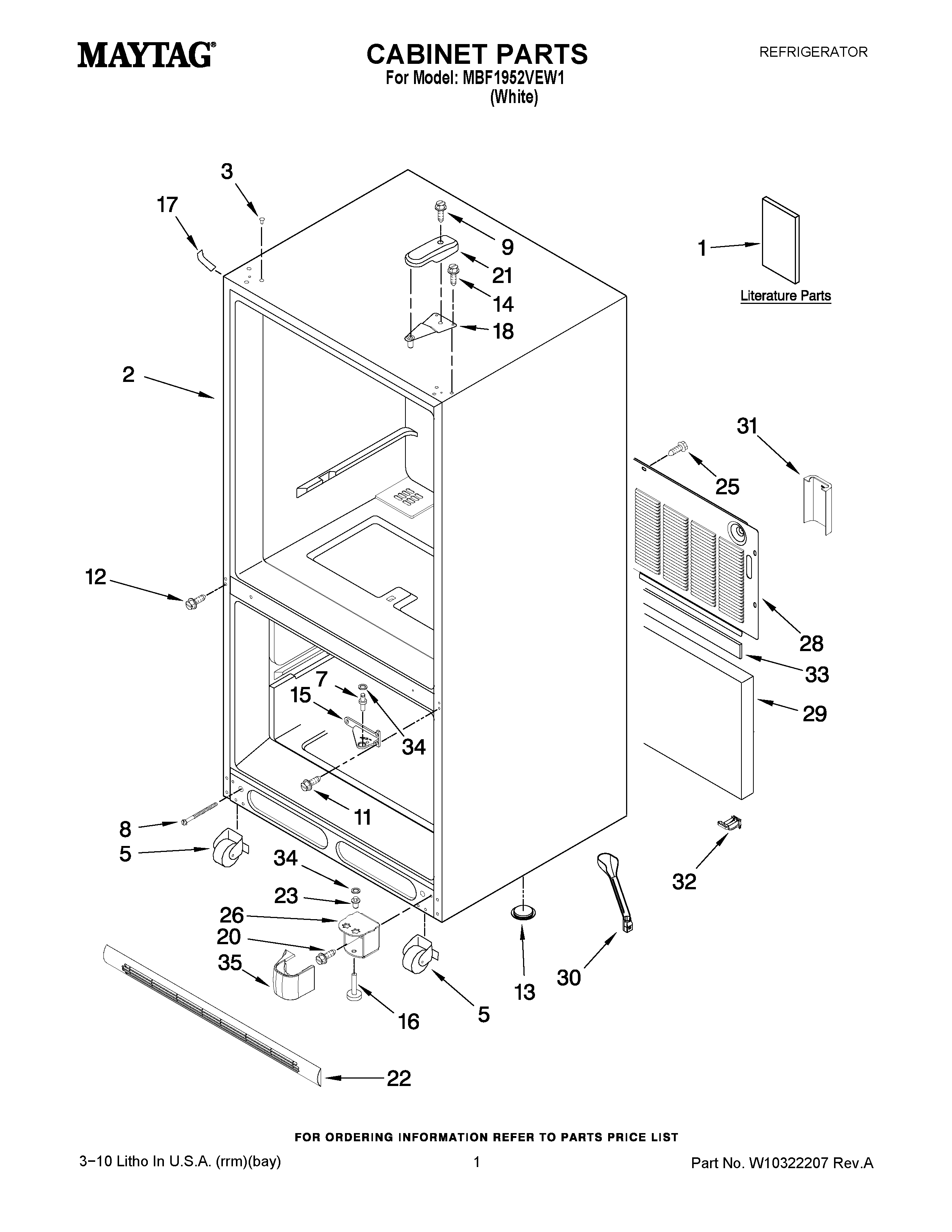

MBF1952VEW1 01 – CABINET PARTS

Products

Position	Product
1	MAY W10237973
1	OWNERS MANUAL
1	MAY W10238840
2	LINER (NOT A SERVICEABLE PART)
3	MAY M0310729
5	ROLLER ASSY.(REAR)
7	PIN, CENTER HINGE (REAR)
8	Bolt, Adjusting (Rear)
9	MAY 12992602
11	SCREW (6)
12	MAY 12990101
13	A3076901 Whirlpool Refrigerator Plug
14	SCREW (6)
15	MAY 12607103WD
16	Foot Brake (2)
17	Cover, Corner (2) (White)
18	MAY 12566606ED
20	Screw (8)
21	MAY 12477601W
22	Grille Assembly (Includes Clips) (White)
23	MAY 10200802
25	SCREW (10)
26	MAY 12465002WD
28	MAY W10210978
29	Insulation, Sound
30	MAY W10210987
31	GUARD-WATER VALVE
32	MAY W10216614
33	MAY B5759655
34	MAY M0274057
35	MAY 12561901W
