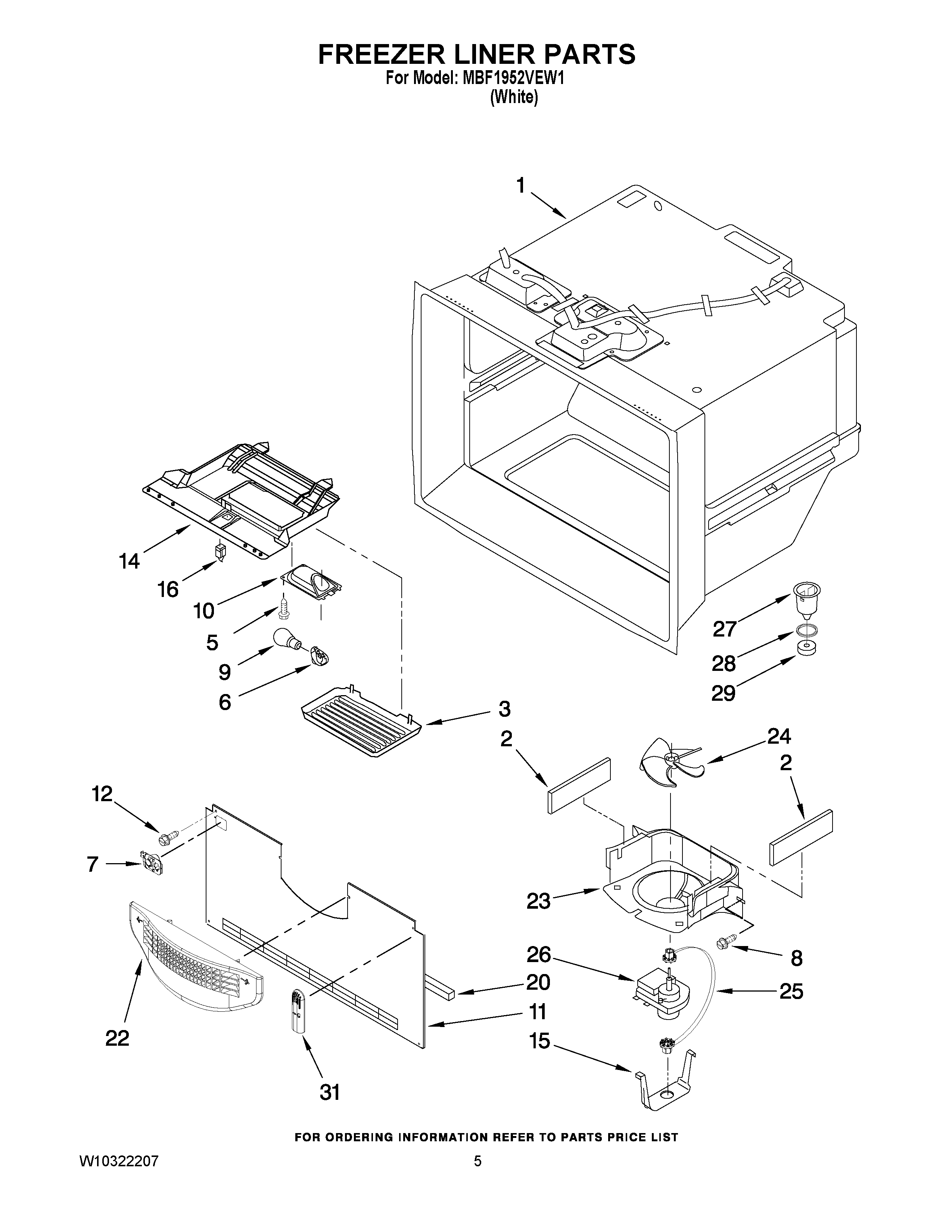

MBF1952VEW1 03 – FREEZER LINER PARTS

MBF1952VEW1 03 – FREEZER LINER PARTS

Written by

in

MBF1952VEW1 03 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	MAY 12804901
5	MAY 12991603V
6	Socket, Light
7	MAY 12932103
8	MAY 12990504
9	BULB, LIGHT (2)
10	MAY 12476401V
11	MAY W10308414
12	MAY 12990101
14	MODULE, FZ CONTROL
15	CLIP, EVAP. MOTOR
16	MAY 12466105
20	Gasket, Bottom
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10121318
26	MAY W10128551
27	MAY D7753903
28	MAY M0500703
29	Gasket
31	MAY 12815301
