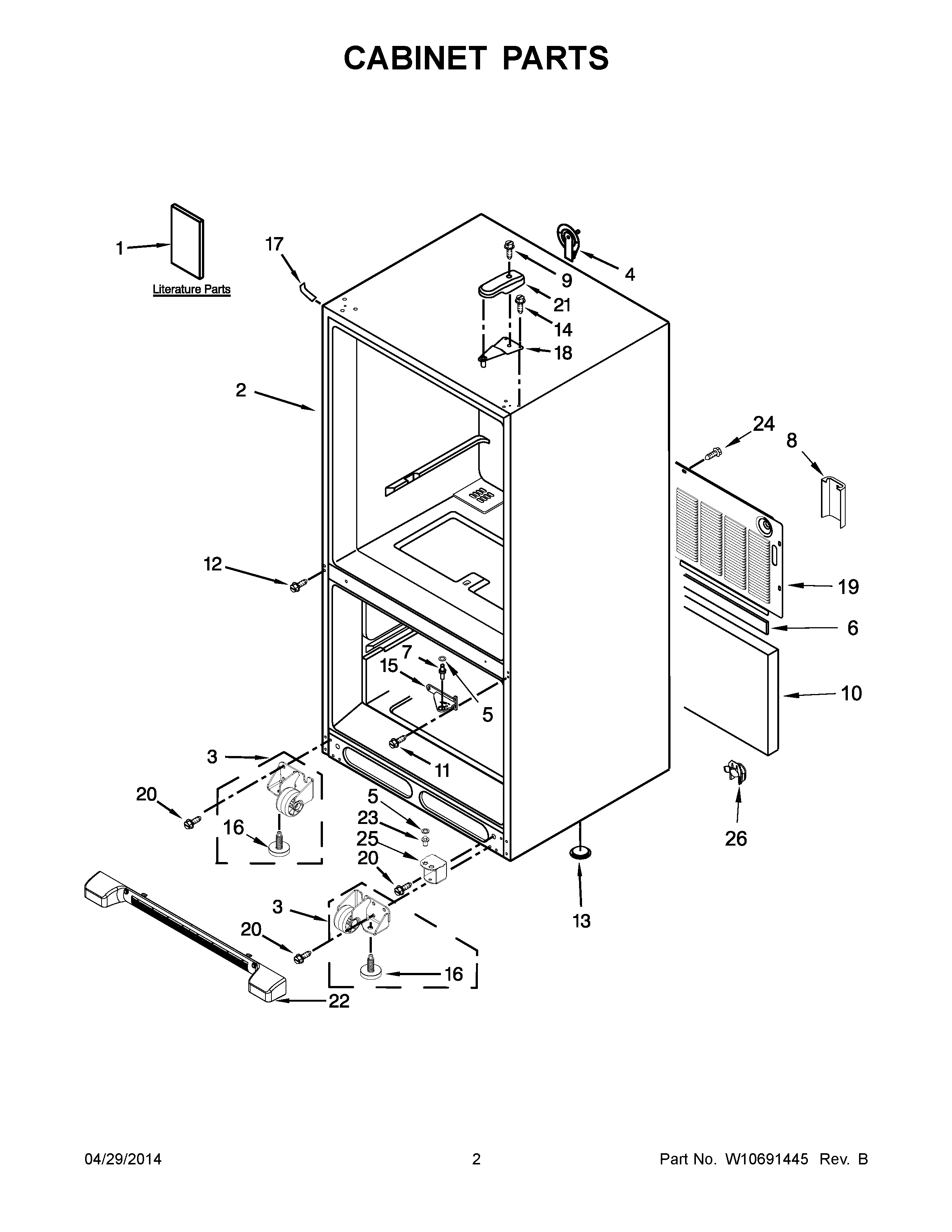

MBF1953DEM00 02 – CABINET PARTS

Products

Position	Product
1	MAY W10667461
1	MAY W10517966
1	MAY W10621529
2	LINER (NOT A SERVICEABLE PART)
3	ROLLER ASSEMBLY (LEFT HAND)
3	ROLLER ASSEMBLY (RIGHT HAND)
4	MAY 12726003
5	MAY M0274057
5	MAY M0274062
6	MAY B5759655
7	PIN, CENTER HINGE (REAR)
8	GUARD-WATER VALVE
9	MAY 12992602
10	Insulation, Sound
11	MAY W10339086
12	MAY 12990101
13	A3076901 Whirlpool Refrigerator Plug
14	SCREW (6)
15	MAY 12607103WD
15	MAY 12607104ED
15	MAY 12607103AP
16	Brake, Foot
17	COVER, CORNER (BLACK)
17	Cover, Corner (2) (White)
17	COVER, CORNER (GREY)
18	MAY 12566606ED
19	MAY W10210978
20	Screw (8)
21	MAY 12477601W
21	COVER, HINGE(BLACK)
21	MAY 12477601AP
22	ASSEMBLY, GRILLE (BLACK)
22	ASSEMBLY, GRILLE (WHITE)
22	ASSEMBLY, GRILLE (GREY)
23	MAY 10200802
24	SCREW (10)
25	HINGE, BOTTOM (GREY)
25	HINGE, BOTTOM (BLACK)
25	MAY W10490811
26	MAY W10485986
