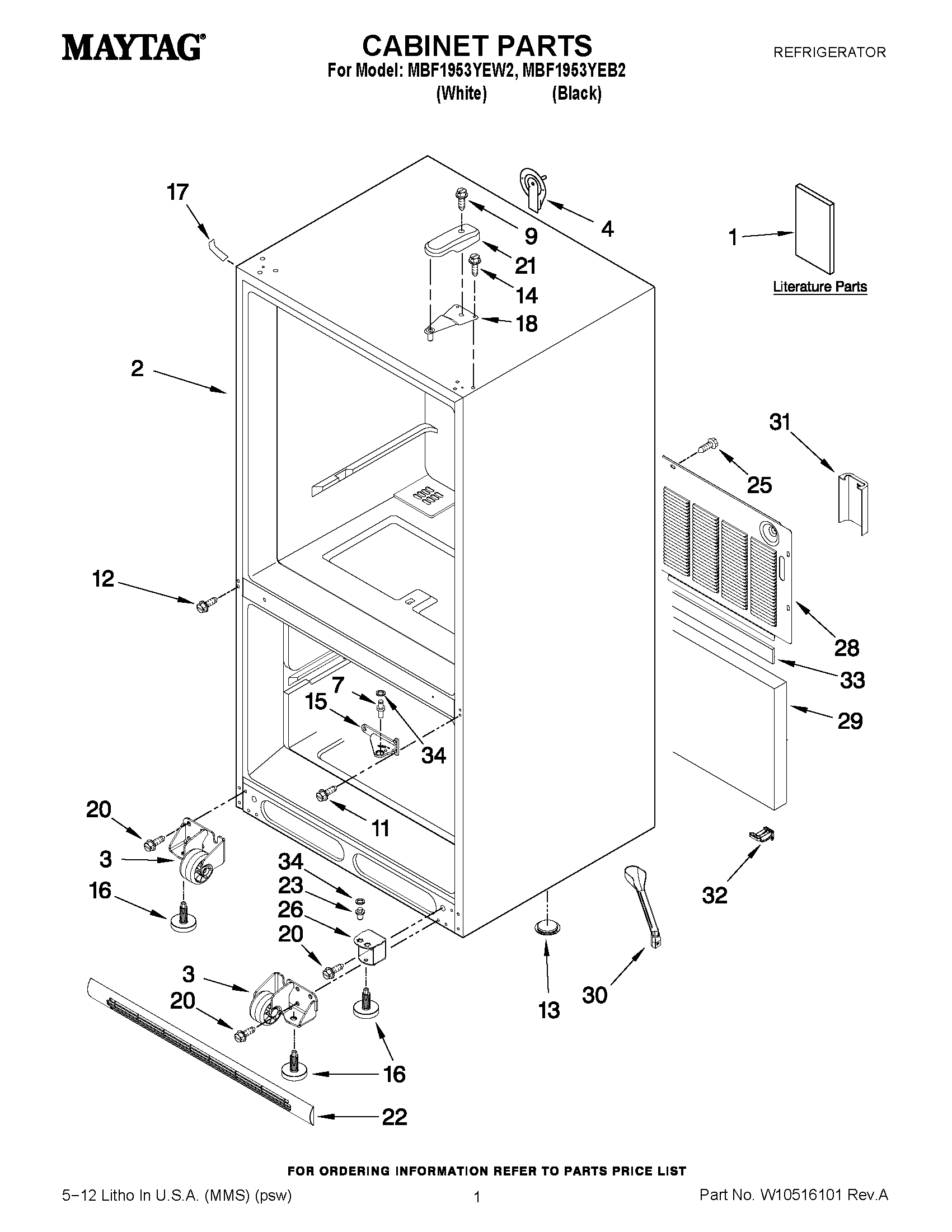

MBF1953YEB2 01 – CABINET PARTS

MBF1953YEB2 01 – CABINET PARTS

Written by

in

MBF1953YEB2 01 – CABINET PARTS

Products

PositionProduct
1MAY W10450362
1MAY W10366206SP
1MAY W10475386
2LINER (NOT A SERVICEABLE PART)
3ROLLER ASSY. (FRONT) (LEFT)
3ROLLER ASSY. (FRONT) (RIGHT)
4MAY 12726003
7PIN, CENTER HINGE (REAR)
9MAY 12992602
11MAY W10339086
12MAY 12990101
13A3076901 Whirlpool Refrigerator Plug
14SCREW (6)
15MAY 12607103WD
15MAY 12607104ED
16Brake, Foot
17COVER, CORNER (BLACK)
17Cover, Corner (2) (White)
18MAY 12566606ED
20Screw (8)
21MAY 12477601W
21COVER, HINGE(BLACK)
22Grille Assembly (White)
22Grille Assembly (Black)
23MAY 10200802
25SCREW (10)
26MAY W10315062
28MAY W10210978
29Insulation, Sound
30MAY W10210987
31GUARD-WATER VALVE
32MAY W10216614
33MAY B5759655
34MAY M0274057
