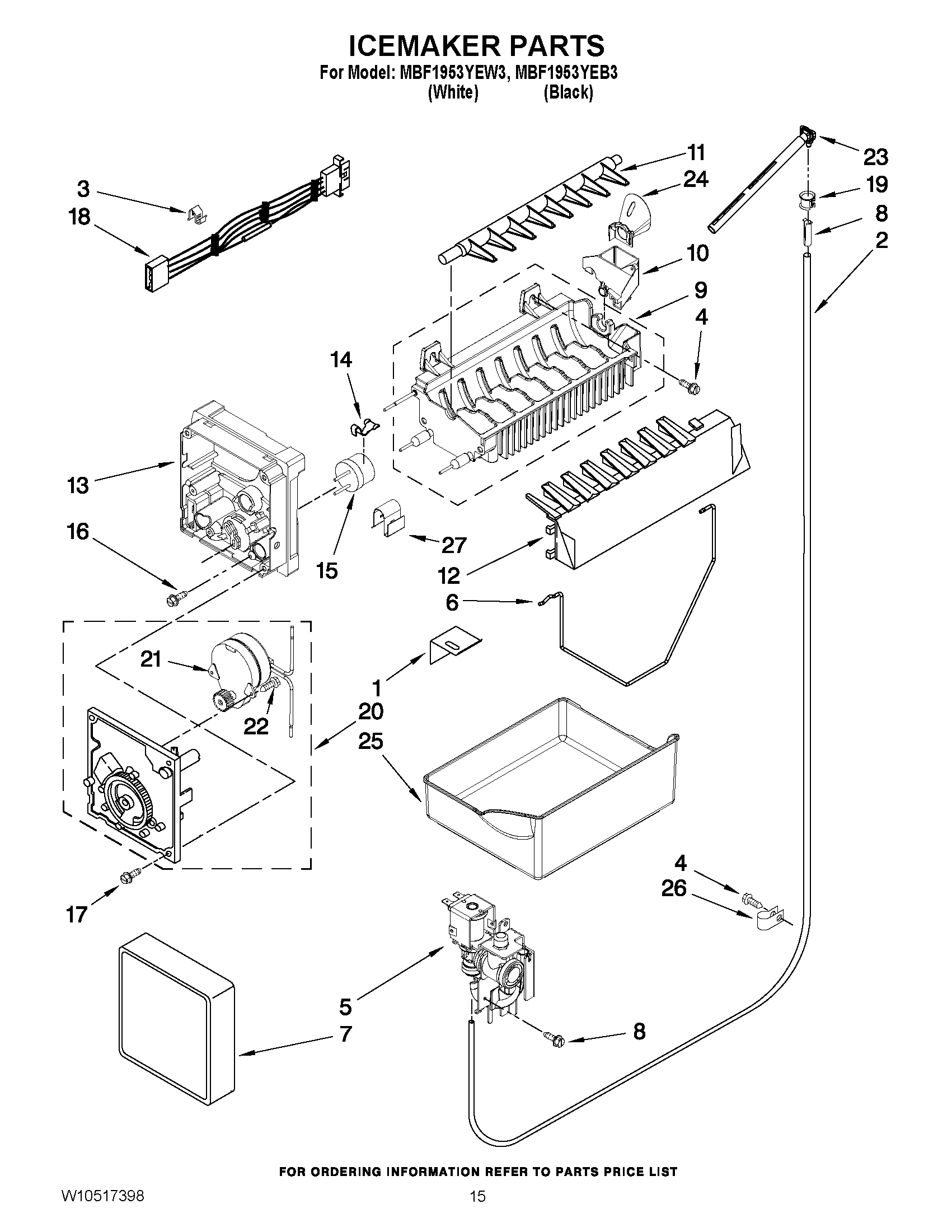

MBF1953YEB3 08 – ICEMAKER PARTS

Products

Position	Product
1	MAY 2256086
2	MAY W10449192
3	CLAMP, WIRE
4	MAY 489276
5	MAY W10219716
6	ARM-SHUT OFF
7	Cover
8	MAY A3223101
9	MAY W10122527
10	Cup, Fill
11	MAY 627843
12	MAY 2182124
13	MAY 2194712
14	MAY 2315522
15	Thermostat (Also Order 542369 Cement Alumilastic)
16	Screw (2)
17	Screw (3)
18	MAY D7813011
19	Clip
20	MODULE ASSEMBLY (INCLUDES ITEM 24)
21	LINER (NOT A SERVICEABLE PART)
22	MAY 489136
23	MAY 10463203
24	MAY 12918001
25	MAY 12695001V
26	CLAMP, TUBE
27	Clip
100	ICEMAKER ASSEMBLY (COMPLETE)
