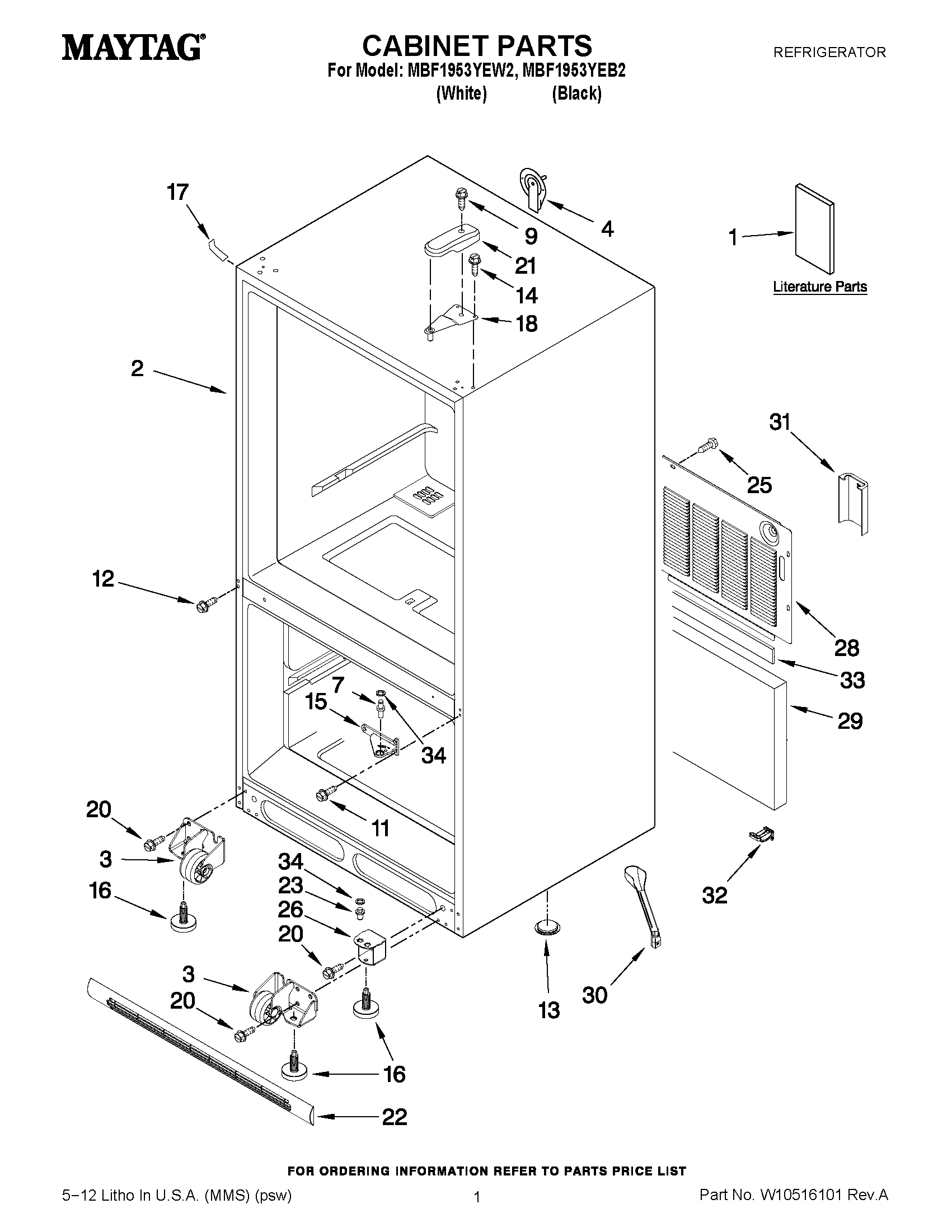

MBF1953YEW2 01 – CABINET PARTS

Products

Position	Product
1	MAY W10450362
1	MAY W10366206SP
1	MAY W10475386
2	LINER (NOT A SERVICEABLE PART)
3	ROLLER ASSY. (FRONT) (LEFT)
3	ROLLER ASSY. (FRONT) (RIGHT)
4	MAY 12726003
7	PIN, CENTER HINGE (REAR)
9	MAY 12992602
11	MAY W10339086
12	MAY 12990101
13	A3076901 Whirlpool Refrigerator Plug
14	SCREW (6)
15	MAY 12607103WD
15	MAY 12607104ED
16	Brake, Foot
17	COVER, CORNER (BLACK)
17	Cover, Corner (2) (White)
18	MAY 12566606ED
20	Screw (8)
21	MAY 12477601W
21	COVER, HINGE(BLACK)
22	Grille Assembly (White)
22	Grille Assembly (Black)
23	MAY 10200802
25	SCREW (10)
26	MAY W10315062
28	MAY W10210978
29	Insulation, Sound
30	MAY W10210987
31	GUARD-WATER VALVE
32	MAY W10216614
33	MAY B5759655
34	MAY M0274057
