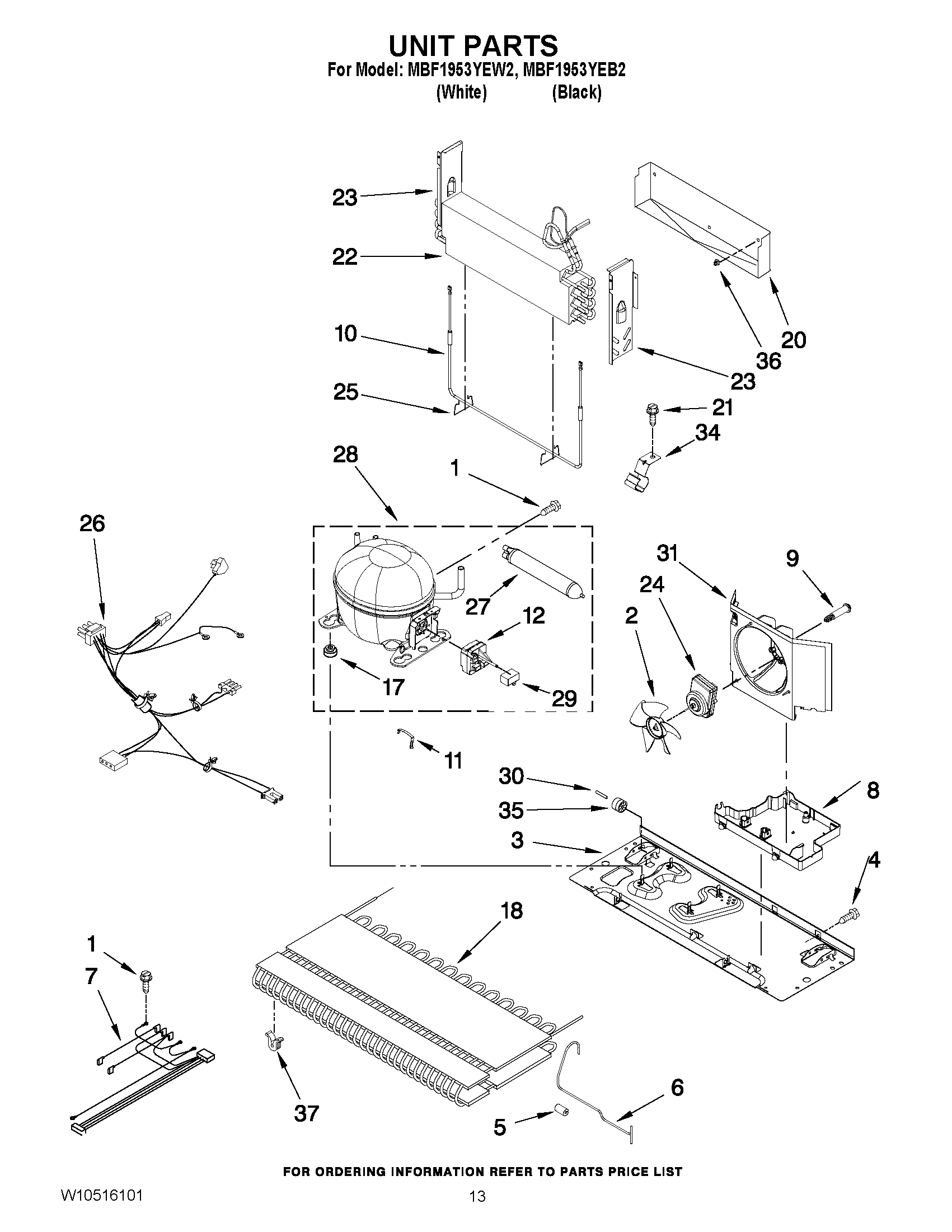

MBF1953YEW2 07 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
NI	MAY 876764
1	MAY 12992301
2	MAY 12825803
3	MAY W10480107
4	SCREW (10)
5	GROMMET, CONDENSER
6	MAY W10294014
7	HARNESS, EVAPORATOR (INCLUDES HEATER)
8	MAY W10296784
9	MAY W10216919
10	HEATER, EVAPORATOR
11	MAY W10216075
12	START DEVICE, COMBINATION (START RELAY AND OVERLOAD) (PRODUCTION)
17	Grommet (4)
18	MAY W10346423
20	MAY W10292801
21	MAY 12990701
22	MAY W10317012
23	DAM (LEFT SIDE)
23	Dam (Right Side)
24	MAY W10239053
25	W11673433 Whirlpool Clip
26	HARNESS, UNIT (INCLUDES POWER CORD)
27	Drier
28	COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
29	Capacitator (Production)
30	Axle, Roller (2)
31	SHROUD
34	MAY W10281329
35	Roller (2)
36	MAY 10623002
37	GROMMET, COND (4)
