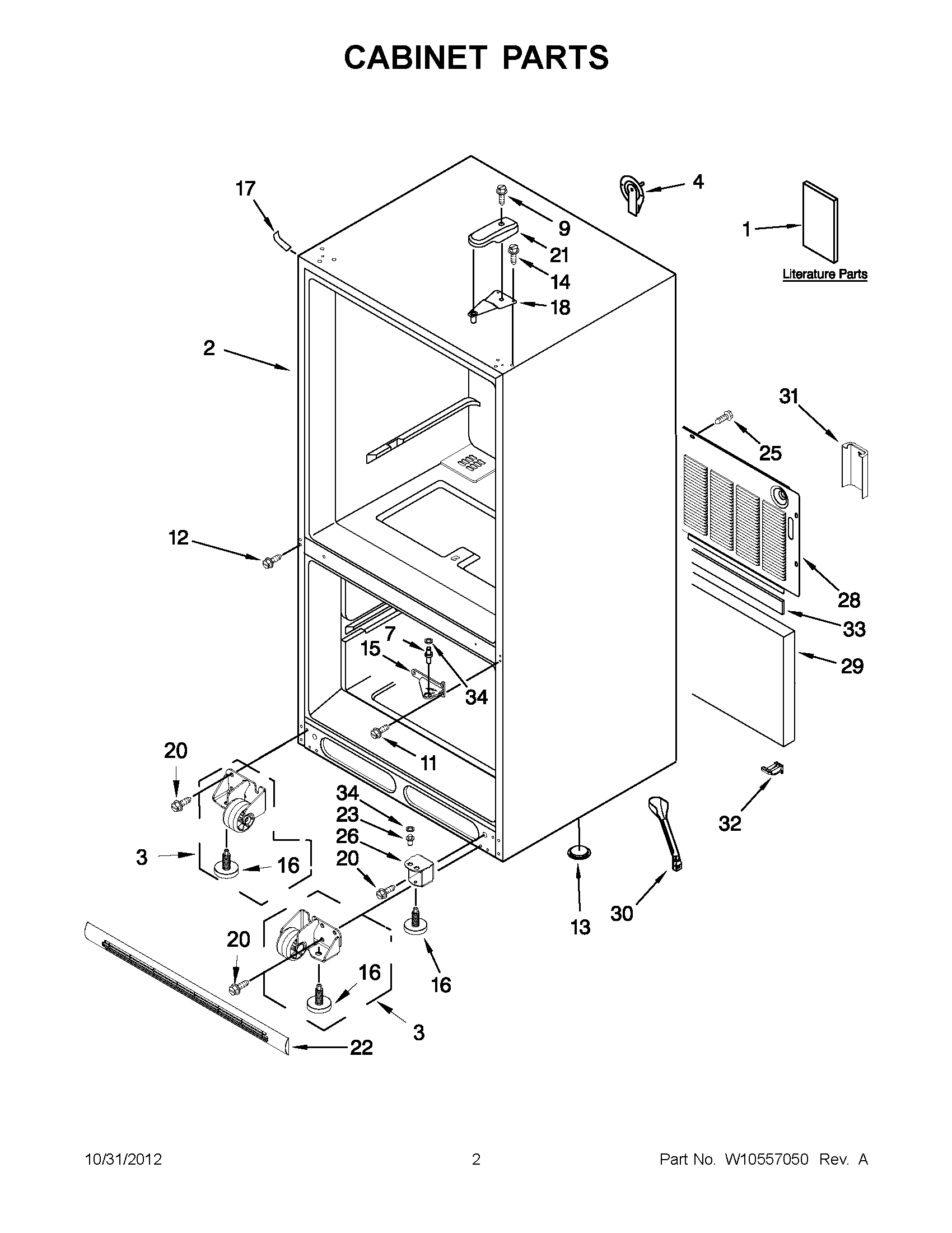

MBF1953YEW4 01 – CABINET PARTS

Products

Position	Product
1	MAY W10450362
1	MAY W10366206SP
1	MAY W10517966
2	LINER (NOT A SERVICEABLE PART)
3	ROLLER ASSEMBLY (RIGHT HAND)
3	ROLLER ASSEMBLY (LEFT HAND)
4	MAY 12726003
7	PIN, CENTER HINGE (REAR)
9	MAY 12992602
11	MAY W10339086
12	MAY 12990101
13	A3076901 Whirlpool Refrigerator Plug
14	SCREW (6)
15	MAY 12607103WD
15	MAY 12607104ED
16	Brake, Foot
17	COVER, CORNER (BLACK)
17	Cover, Corner (2) (White)
18	MAY 12566606ED
20	Screw (8)
21	MAY 12477601W
21	COVER, HINGE(BLACK)
22	Grille Assembly (Black)
22	Grille Assembly (White)
23	MAY 10200802
25	SCREW (10)
26	HINGE, BOTTOM (BLACK)
26	MAY W10490811
28	MAY W10210978
29	Insulation, Sound
30	TUBE-DRAIN
31	GUARD-WATER VALVE
32	MAY W10485986
33	MAY B5759655
34	MAY M0274062
34	MAY M0274057
