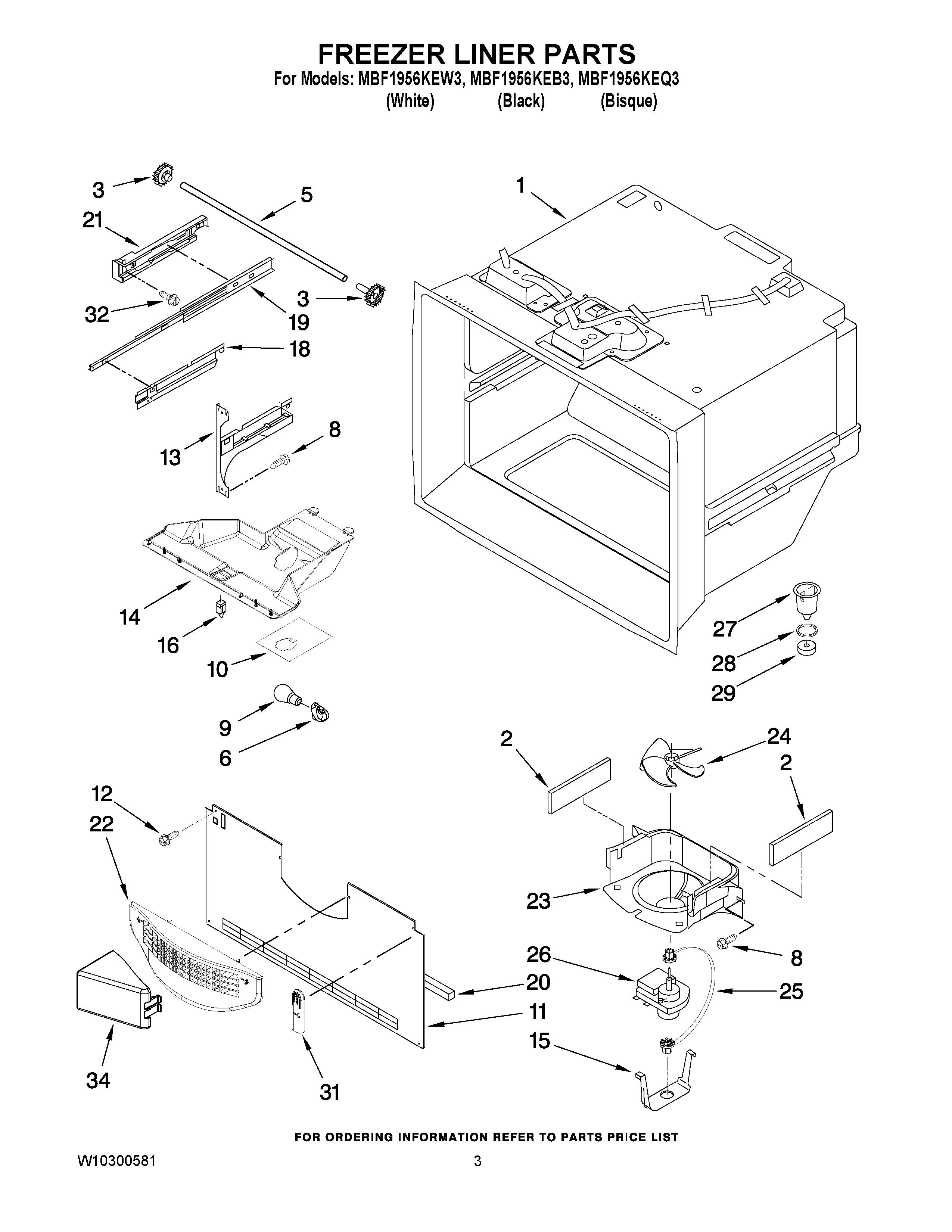

MBF1956KEB3 02 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
312002497 Whirlpool Refrigerator Drawer Gear Kit
5SHAFT-RACK
6Socket, Light
8Screw (8)
9Bulb, Light (2)
10FOIL-FZ LIGHT
11MAY 12226110
12MAY 12990101
13BRACKET, DOOR (LEFT)
13BRACKET, DOOR (RIGHT)
14MODULE-FZ LIGHT
15CLIP, EVAP. MOTOR
16MAY 12466105
18CRADLE-BASKET (LEFT HAND)
18CRADLE-BASKET (RIGHT HAND)
19MAY W10120018
20Gasket, Bottom
21CRADLE-BASKET (RIGHT)
21MAY W0284680
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25MAY W10121318
26MAY W10128551
27MAY D7753903
28MAY M0500703
29Gasket
31MAY 12815301
32Screw (6)
34MAY W10157765
