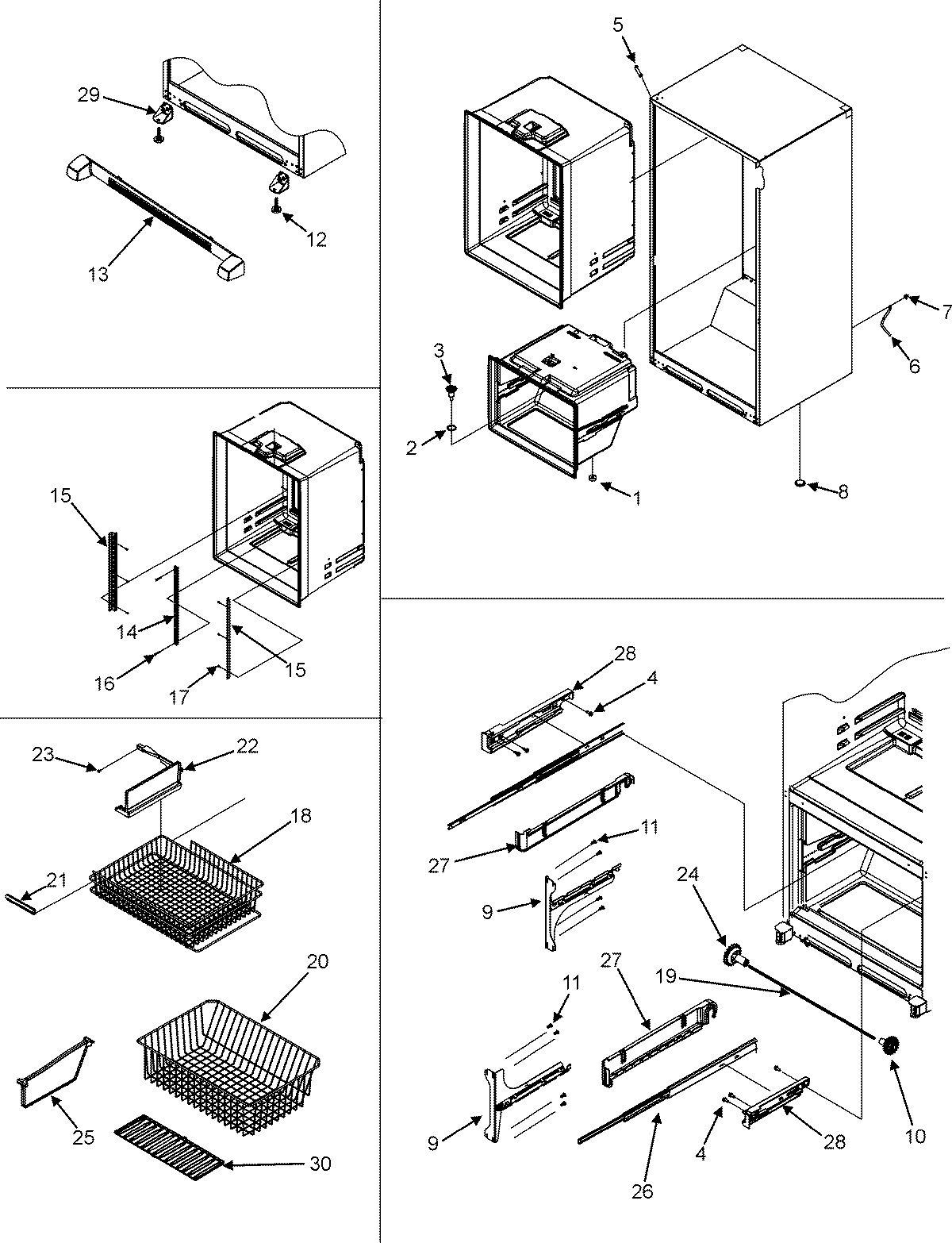

MBF1956KEQ 08 – INTERIOR CABINET/FRZ SHELVES/TOE GRILLE

MBF1956KEQ 08 – INTERIOR CABINET/FRZ SHELVES/TOE GRILLE

Written by

in

MBF1956KEQ 08 – INTERIOR CABINET/FRZ SHELVES/TOE GRILLE

Products

PositionProduct
1Gasket
2MAY M0500703
3MAY D7753903
4Screw (6)
5MAY 67003486
6MAY 67001066
767001067 Whirlpool Refrigerator Drain Tube Clip
8A3076901 Whirlpool Refrigerator Plug
9BRACKET, DRAWER SLIDE (LT)
9BRACKET, DRAWER SLIDE (RT)
10GEAR (RT)
11Screw (8)
12W11177593 Whirlpool Leveling Feet
13MAY 67006904
13Clip, Grille
1467001073 Whirlpool Refrigerator Center Ladder
15MAY 67001302
16W10709795 Whirlpool Refrigerator Screw
17MAY 67006400
18MAY 67004985
19W10802329 Whirlpool Refrigerator Shaft
20W10503182 Whirlpool Refrigerator Freezer Basket
21HANDLE, BASKET/SHELF
22Divider, Upper Basket
23MAY 67006608
24GEAR (LT)
25Divider, Lower Basket
26W11658402 Whirlpool Drawer Slide Rail
27WPW10280608 Whirlpool Refrigerator Bracket
27WPW10280613 Whirlpool Refrigerator Bracket
28ADAPTER, SIDE (LT)
28ADAPTER, SIDE (RT)
2912906303WD Whirlpool Refrigerator Bracket
29MAY 67006491
