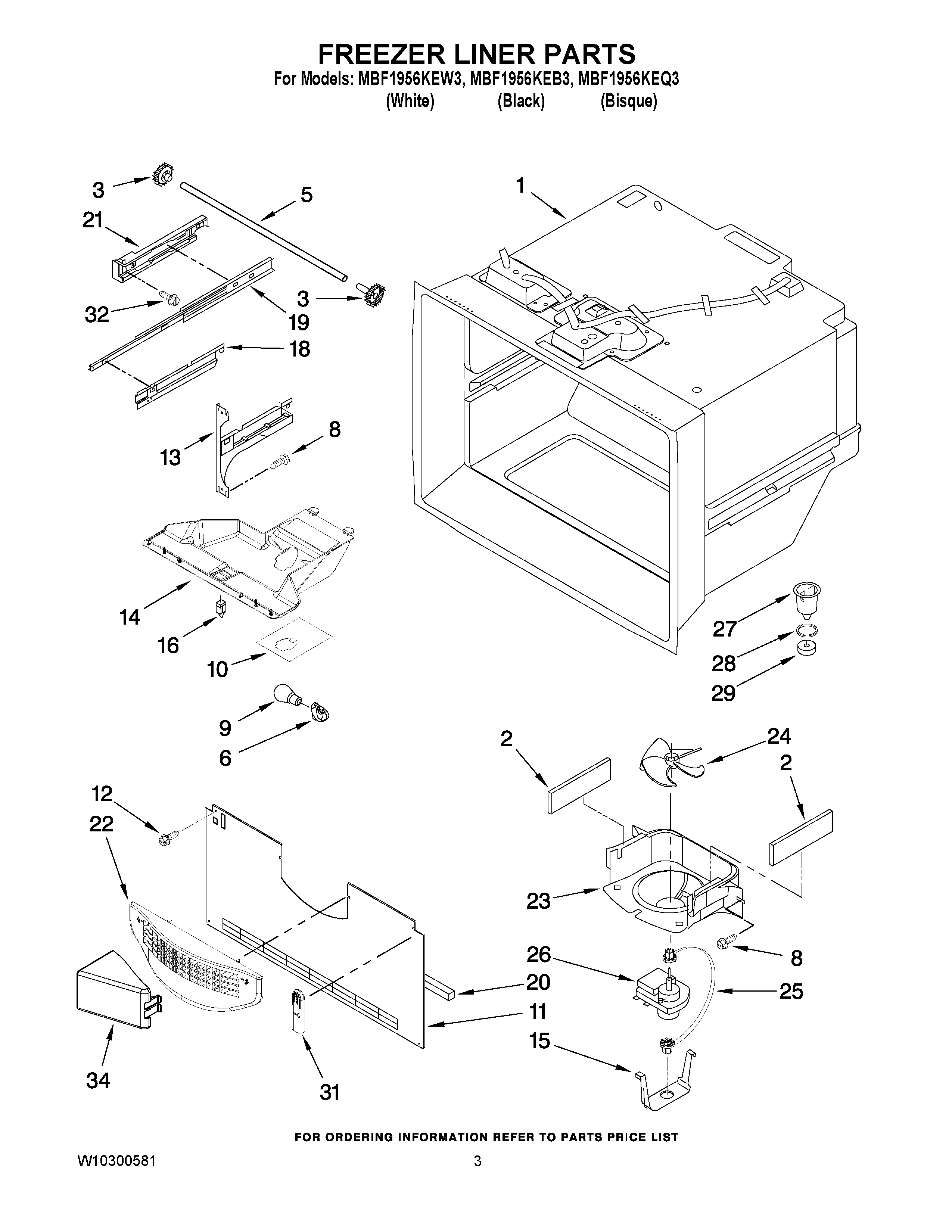

MBF1956KEW3 02 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
5	SHAFT-RACK
6	Socket, Light
8	Screw (8)
9	Bulb, Light (2)
10	FOIL-FZ LIGHT
11	MAY 12226110
12	MAY 12990101
13	BRACKET, DOOR (LEFT)
13	BRACKET, DOOR (RIGHT)
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	MAY 12466105
18	CRADLE-BASKET (LEFT HAND)
18	CRADLE-BASKET (RIGHT HAND)
19	MAY W10120018
20	Gasket, Bottom
21	CRADLE-BASKET (RIGHT)
21	MAY W0284680
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10121318
26	MAY W10128551
27	MAY D7753903
28	MAY M0500703
29	Gasket
31	MAY 12815301
32	Screw (6)
34	MAY W10157765
