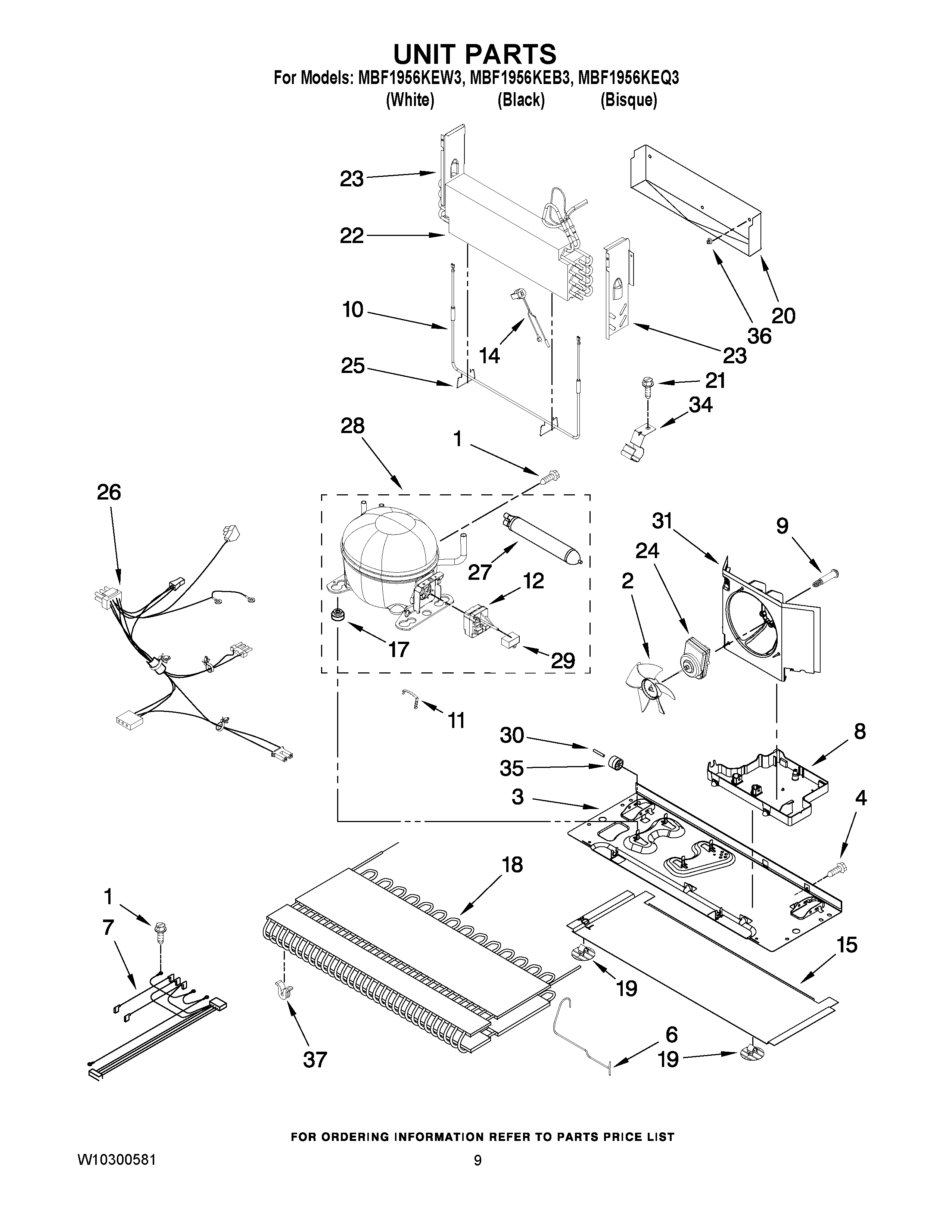

MBF1956KEW3 06 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (5/16“)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/4“)
1	MAY 12992301
2	MAY 12825803
3	MAY W10210982
4	SCREW (10)
6	MAY W10217744
7	HARNESS, EVAP HEATER
8	MAY W10296784
9	MAY W10216919
10	HEATER, EVAPORATOR
11	MAY W10216075
12	MAY W10136414
12	START-DEVICE, COMBINATION (START RELAY AND OVERLOAD) (PRODUCTION)
14	Thermostat
15	MAY W10206336
17	Grommet (4)
18	MAY W10135028
19	MAY W10206339
20	MAY 12225401WD
21	MAY 12990701
22	MAY 12726401
23	Dam (Right Side)
23	DAM (LEFT SIDE)
24	MAY 12825101
25	W11673433 Whirlpool Clip
26	HARNESS, UNIT (INCLUDES POWER CORD)
27	Drier
28	COMPRESSOR KIT CONTAINS ITEMS 12, 17, 27, & 29)
29	Capacitator (Production)
30	Axle, Roller (2)
31	SHROUD
34	MAY 10547003
35	Roller (2)
36	MAY 10623002
37	GROMMET, COND (4)
