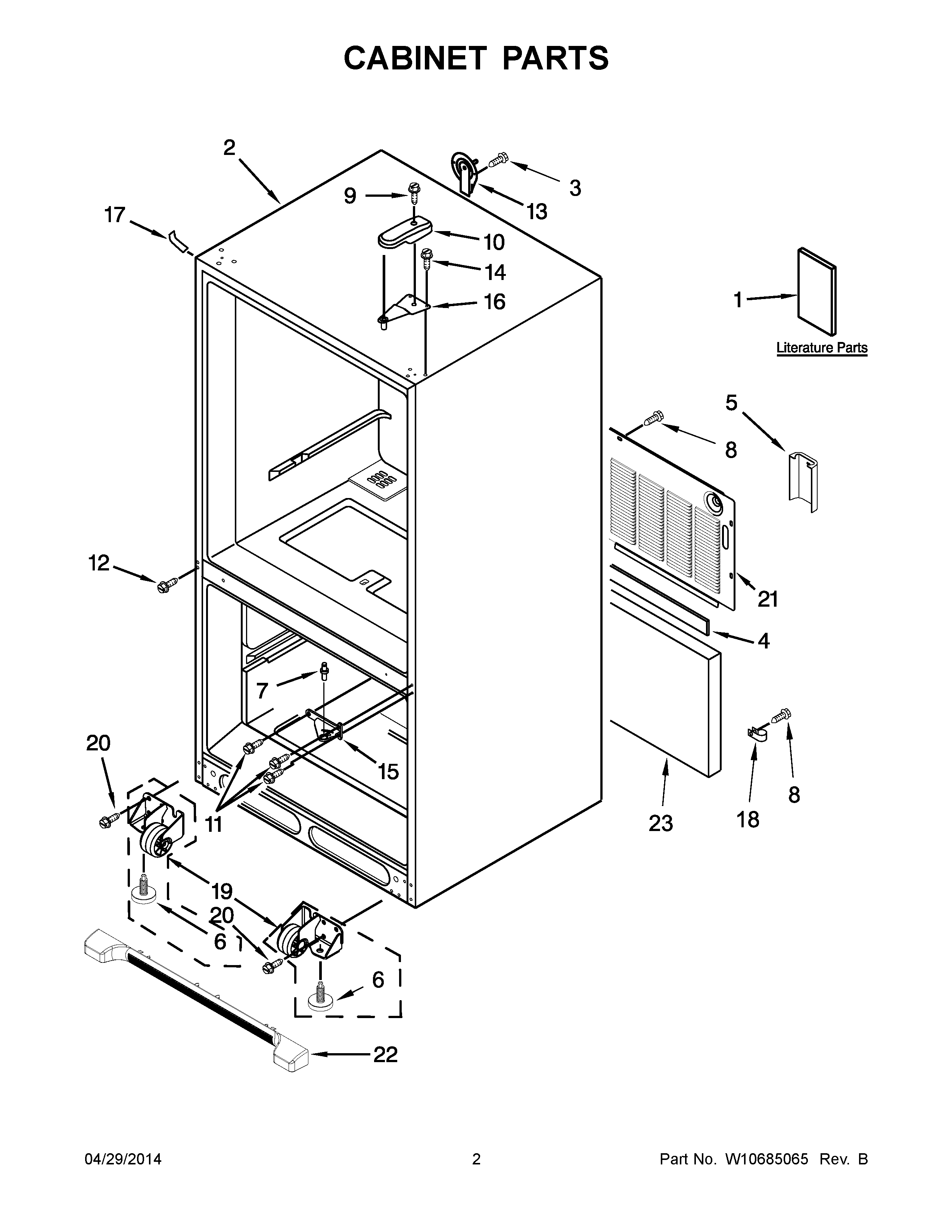

MBF1958DEH00 02 – CABINET PARTS

MBF1958DEH00 02 – CABINET PARTS

Written by

in

MBF1958DEH00 02 – CABINET PARTS

Products

Position	Product
1	MAY W10667462
1	MAY W10621529
1	MAY W10517966
2	LINER (NOT A SERVICEABLE PART)
3	MAY 12990504
4	MAY B5759655
5	GUARD-WATER VALVE
6	Brake, Foot
7	MAY 10351006
8	SCREW (10)
9	MAY 12992602
10	MAY 12477601AP
10	MAY 12477601W
10	COVER, HINGE(BLACK)
11	MAY 12990101
12	Screw (8)
13	MAY 12726003
14	SCREW (6)
15	MAY 12607104ED
15	MAY 12607103WD
15	MAY 12607103AP
16	MAY 12566606ED
17	Cover, Corner (2) (White)
17	COVER, CORNER (GREY)
17	COVER, CORNER (BLACK)
18	CLAMP, TUBE
19	ROLLER ASSEMBLY (LEFT HAND)
19	ROLLER ASSEMBLY (RIGHT HAND)
20	Screw (8)
21	MAY W10210978
22	ASSEMBLY, GRILLE (GREY)
22	ASSEMBLY, GRILLE (BLACK)
22	ASSEMBLY, GRILLE (WHITE)
23	Insulation, Sound
