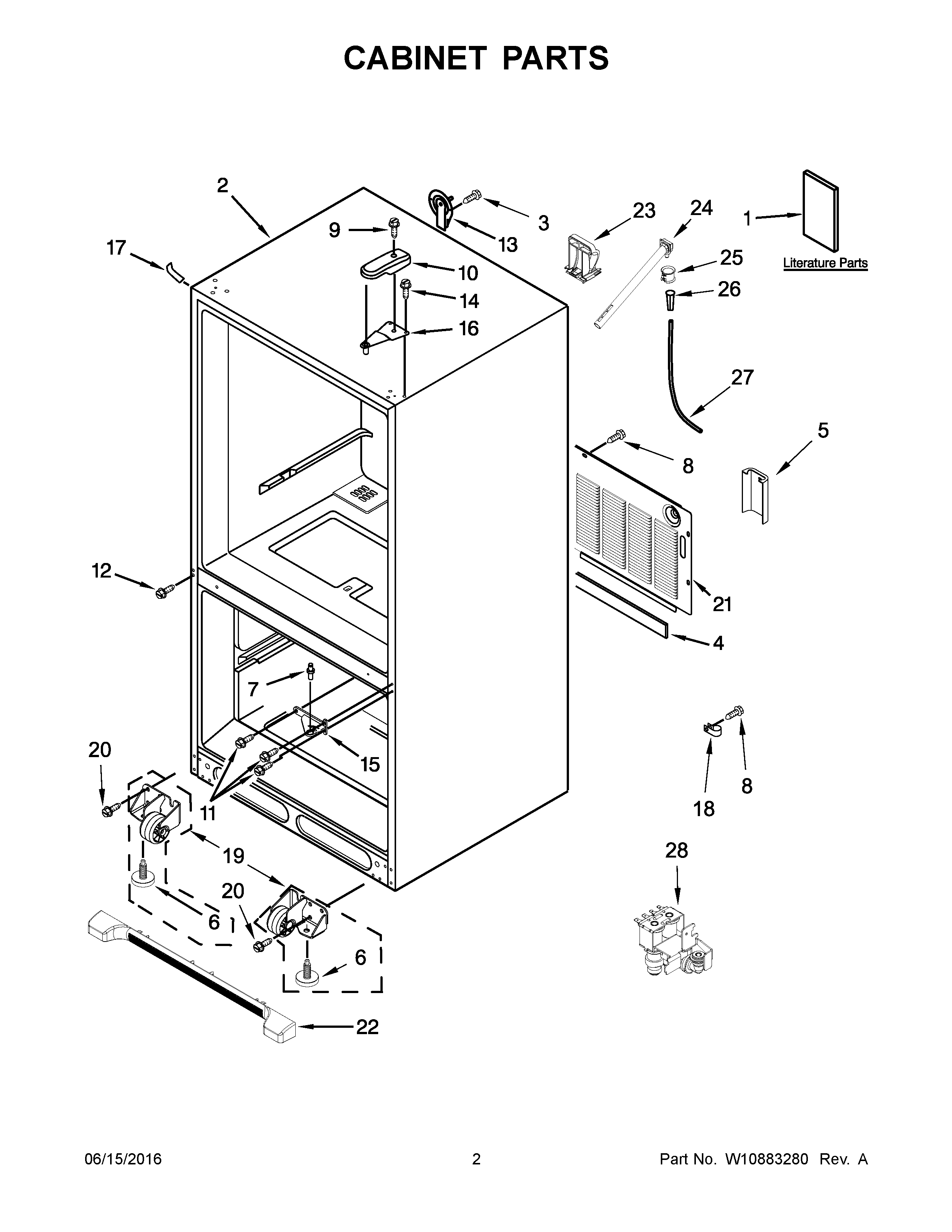

MBF1958FEE00 02 – CABINET PARTS

MBF1958FEE00 02 – CABINET PARTS

Written by

in

MBF1958FEE00 02 – CABINET PARTS

Products

PositionProduct
1AMAY W10853961
1MAY W10621529
1BMAY W10517966
2LINER (NOT A SERVICEABLE PART)
3MAY 12990504
4MAY B5759655
5GUARD-WATER VALVE
6Brake, Foot
7MAY 10351006
8SCREW (10)
9MAY 12992602
10BMAY 12477601AP
10MAY 12477601W
10ACOVER, HINGE(BLACK)
11MAY 12990101
12Screw (8)
13MAY 12726003
14SCREW (6)
15MAY 12607103WD
15AMAY 12607104ED
15BMAY 12607103AP
16MAY 12566606ED
17Cover, Corner (2) (White)
17BCOVER, CORNER (GREY)
17ACOVER, CORNER (BLACK)
18CLAMP, TUBE
19AROLLER ASSEMBLY (RIGHT HAND)
19ROLLER ASSEMBLY (LEFT HAND)
20MAY W10709365
21MAY W10210978
22ASSEMBLY, GRILLE (WHITE)
22AASSEMBLY, GRILLE (BLACK)
22BASSEMBLY, GRILLE (GREY)
23MAY W10485986
24MAY 10463203
25Clip
26MAY A3223101
27MAY W10449192
28MAY W10498976
