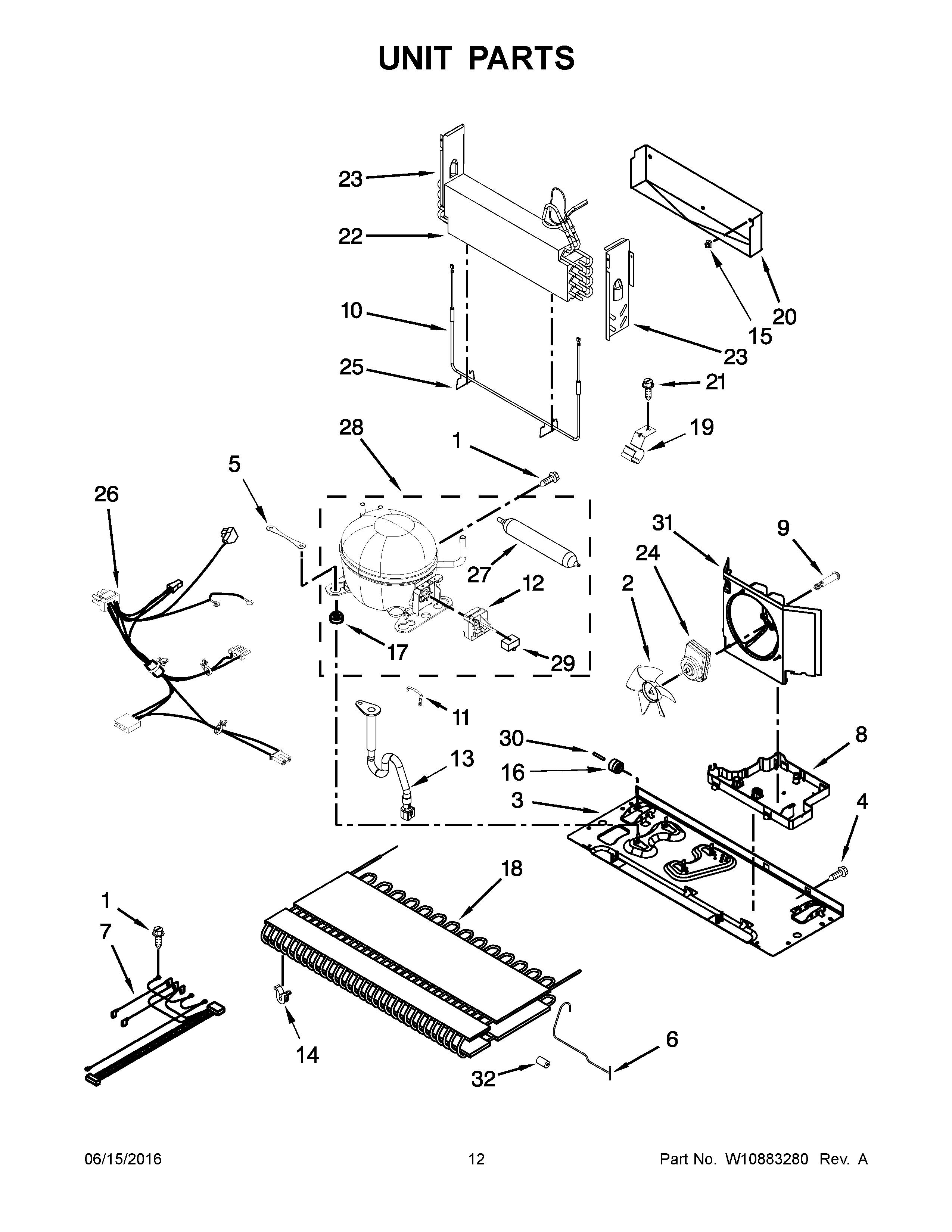

MBF1958FEE00 07 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
1	MAY 12992301
2	MAY 12825803
3	MAY W10480107
4	SCREW (10)
5	MAY W10236396
6	MAY W10294014
7	HARNESS, EVAPORATOR (INCLUDES HEATER)
8	MAY W10655367
9	MAY W10622701
10	HEATER, EVAPORATOR
11	MAY W10216075
12	MAY W10796752
13	MAY W10622098
14	GROMMET, COND (4)
15	MAY 10623002
16	Roller (2)
17	Grommet (4)
18	MAY W10346423
19	MAY W10281329
20	MAY W10292801
21	MAY 12990701
22	MAY W10317012
23	DAM (LEFT SIDE)
23A	Dam (Right Side)
24	MAY W10609117
25	W11673433 Whirlpool Clip
26	MAY W10679216
27	Drier
28	MAY W10485433
29	MAY W10350564
30	Axle, Roller (2)
31	SHROUD
32	GROMMET, CONDENSER
