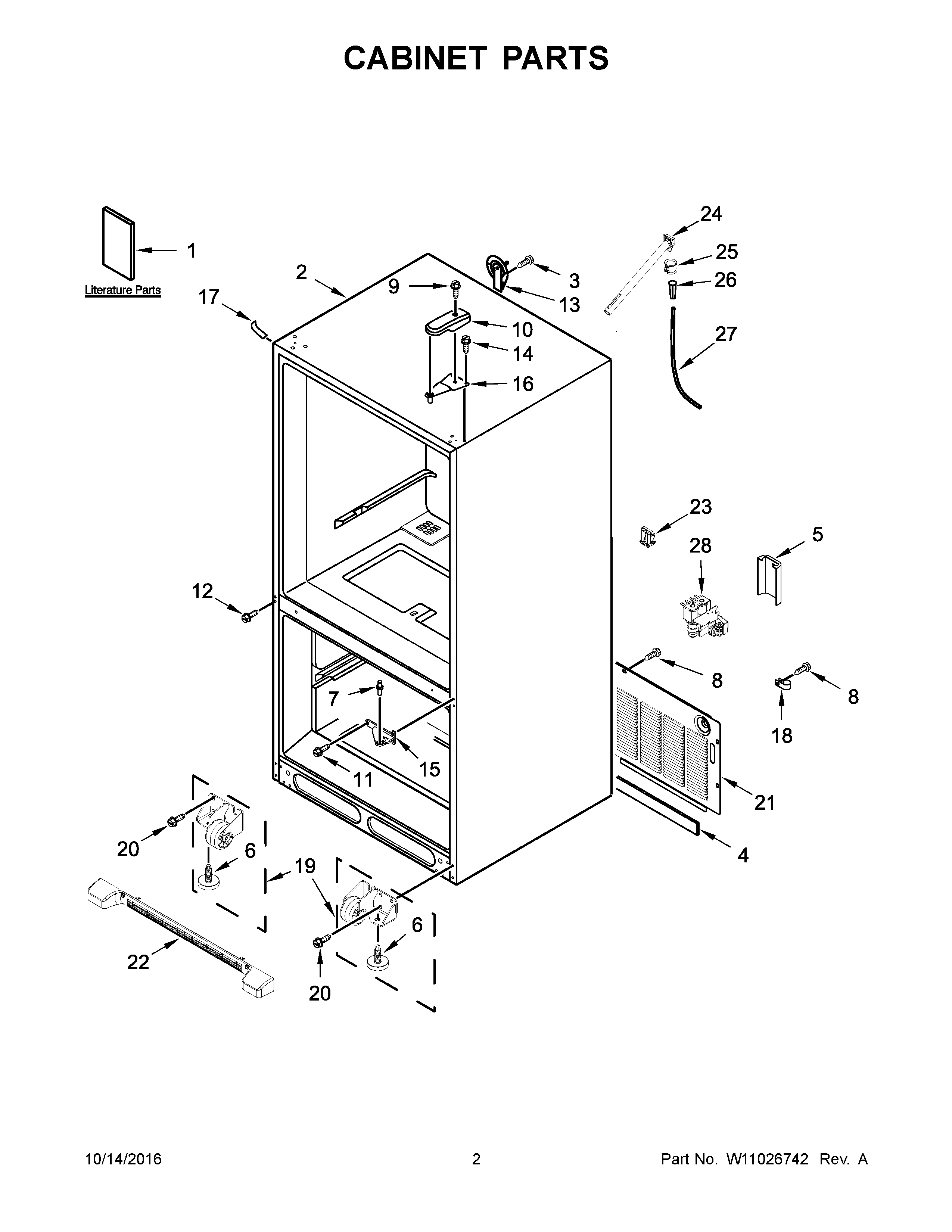

MBF1958FEZ01 02 – CABINET PARTS

MBF1958FEZ01 02 – CABINET PARTS

Written by

in

MBF1958FEZ01 02 – CABINET PARTS

Products

Position	Product
1A	MAY W10853961
1	MAY W10621529
1B	MAY W10517966
2	LINER (NOT A SERVICEABLE PART)
3	MAY 12990504
4	MAY B5759655
5	GUARD-WATER VALVE
6	Brake, Foot
7	MAY 10351006
8	SCREW (10)
9	MAY 12992602
10	MAY 12477601AP
11	MAY W10673840
12	Screw (8)
13	MAY 12726003
14	SCREW (6)
15	MAY 12607103AP
16	MAY 12566606ED
17	COVER, CORNER (GREY)
18	CLAMP, TUBE
19A	ROLLER ASSEMBLY (RIGHT HAND)
19	ROLLER ASSEMBLY (LEFT HAND)
20	MAY W10709365
21	MAY W10210978
22	ASSEMBLY, GRILLE (GREY)
23	MAY W10485986
24	MAY 10463203
25	Clip
26	MAY A3223101
27	MAY W10449192
28	MAY W10498976
