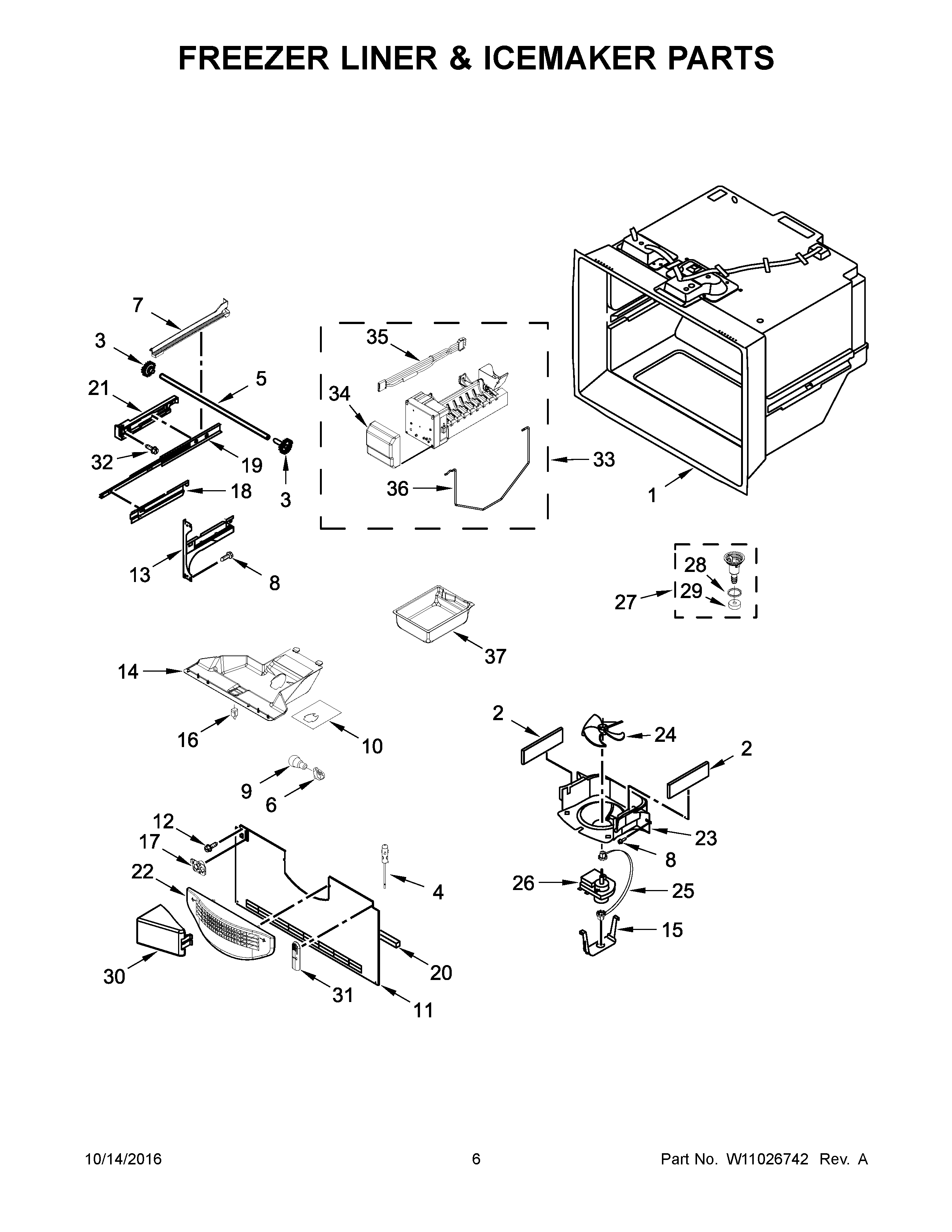

MBF1958FEZ01 04 – FREEZER LINER & ICEMAKER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	MAY 12791409SP
5	MAY W10802329
6	W11447232 Whirlpool Refrigerator Socket
7	MAY W10516603
7A	MAY W10516602
8	Screw (8)
9	MAY W10820003
10	FOIL-FZ LIGHT
11	MAY W10308414
12	MAY 12990101
13A	MAY W10330993
13	MAY W10330991
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	MAY 12466105
17	MAY 12932103
18	CRADLE-BASKET (LEFT HAND)
18A	CRADLE-BASKET (RIGHT HAND)
19	MAY W10120018
20	MAY A3189394
21A	ADAPTER, SLIDE (RIGHT HAND)
21	ADAPTER, SLIDE (LEFT HAND)
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10150583
26	MAY 13062901
27	MAY W10662407
28	MAY M0500703
29	Gasket
30	MAY W10157765
31	MAY 12815301
32	Screw (6)
33	ASSEMBLY, ICEMAKER (COMPLETE)
34	COVER, ICEMAKER
35	MAY W10793621
36	ARM-SHUT OFF
37	MAY W10740448
