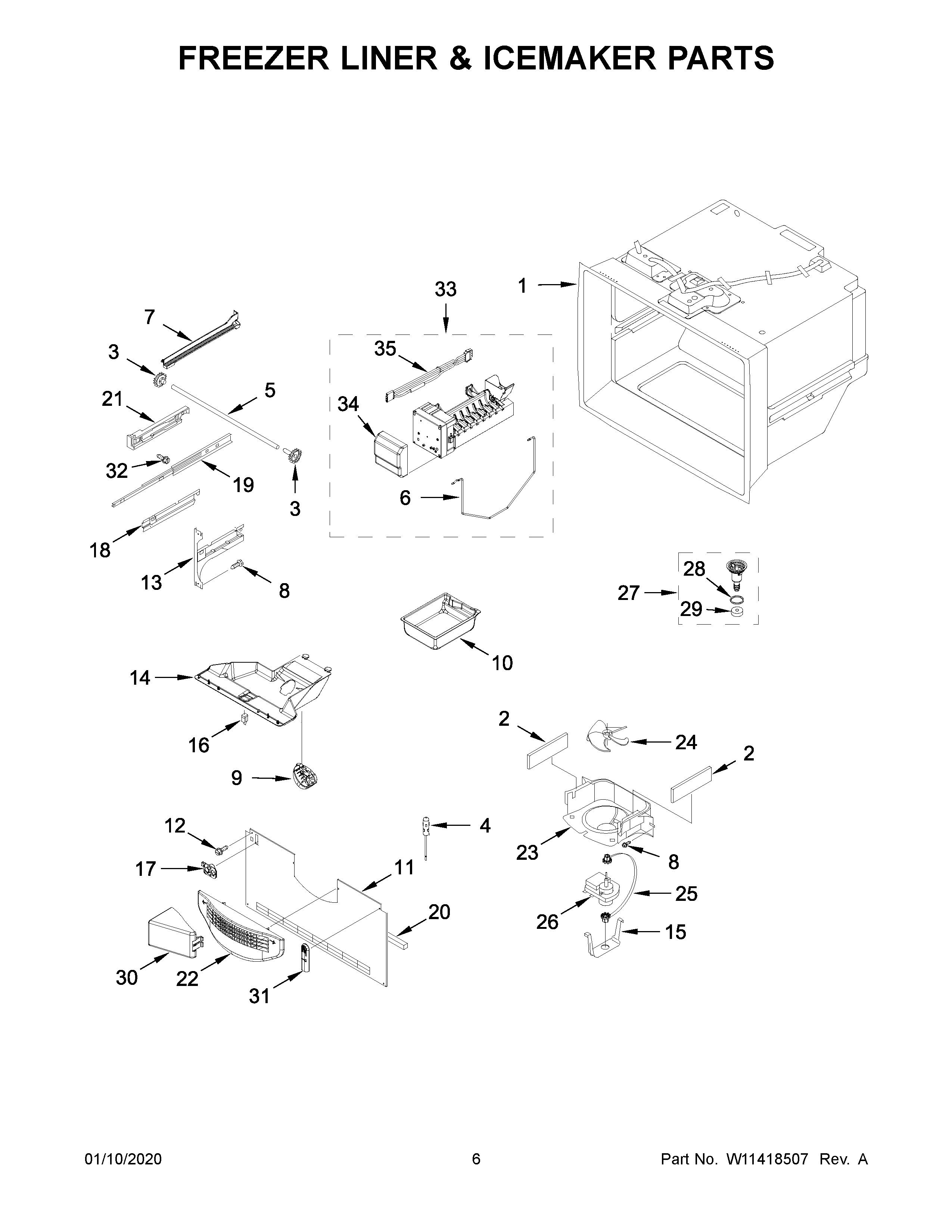

MBF1958FEZ04 04 – FREEZER LINER & ICEMAKER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	MAY 12791409SP
5	MAY W10802329
6	ARM, SHUT OFF
7	MAY W10516603
7A	MAY W10516602
8	Screw (8)
9	MAY W11251749
10	MAY W10182748
11	MAY W10308414
12	MAY 12990101
13	MAY W10330991
13A	MAY W10330993
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	SWITCH, LIGHT
17	MAY W11261524
18	CRADLE-BASKET (LEFT HAND)
18A	CRADLE-BASKET (RIGHT HAND)
19	MAY W10120018
20	MAY A3189394
21	ADAPTER, SLIDE (LEFT HAND)
21A	ADAPTER, SLIDE (RIGHT HAND)
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10150583
26	MAY 13062901
27	MAY W10662407
28	MAY M0500703
29	Gasket
30	MAY W10157765
31	MAY 12815301
32	Screw (6)
33	ASSEMBLY, ICEMAKER (COMPLETE)
34	COVER
35	MAY W10793621
