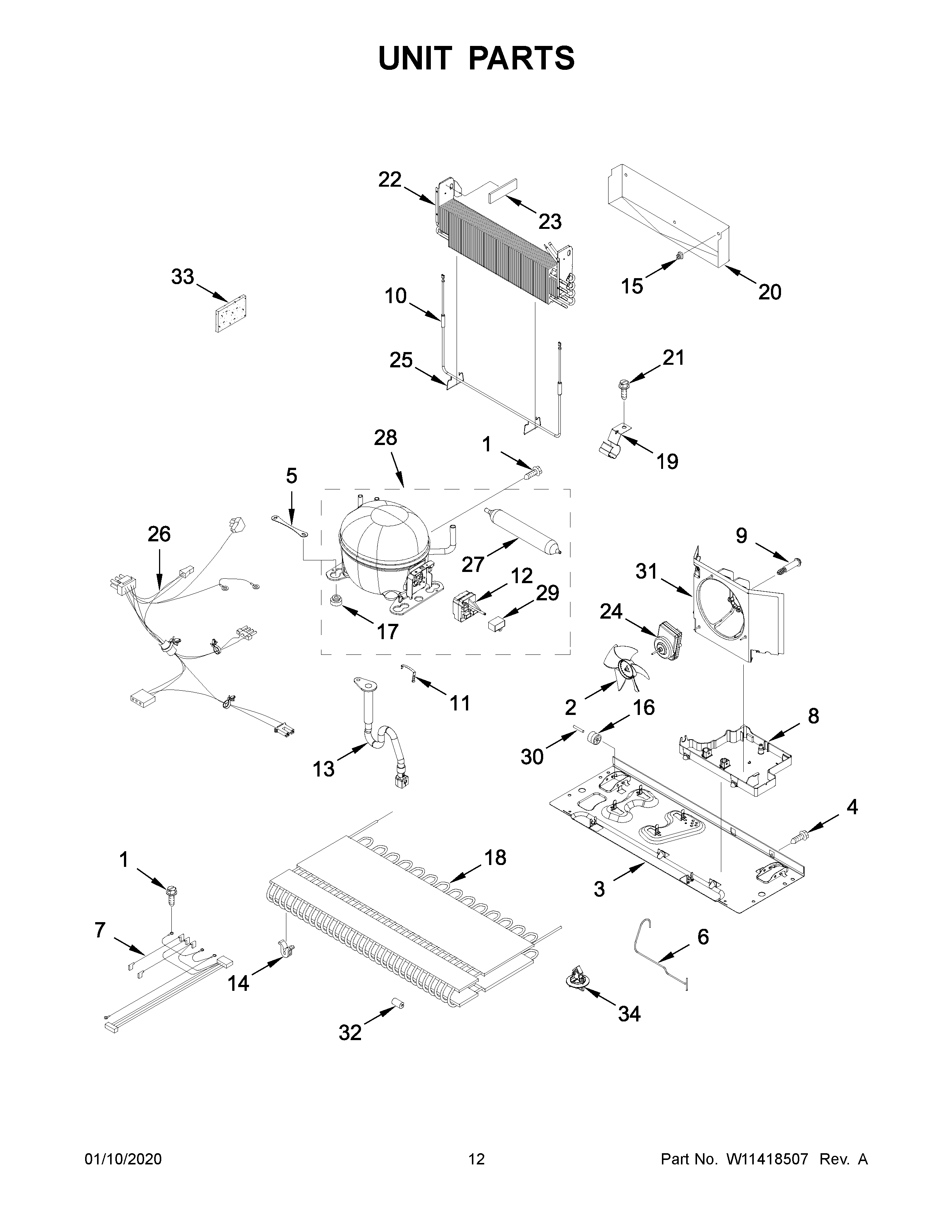

MBF1958FEZ04 07 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
1	MAY 12992301
2	MAY 12825803
3	MAY W10480107
4	SCREW (10)
5	MAY W10236396
6	MAY W10294014
7	HARNESS, EVAPORATOR (INCLUDES DEFROST BI-METAL)
8	MAY W10655367
9	MAY W10622701
10	HEATER, EVAPORATOR
11	MAY W10216075
12	MAY W10796752
13	MAY W10622098
14	GROMMET, COND (4)
15	MAY 10623002
16	Roller (2)
17	GROMMET
18	MAY W10346423
19	MAY W10281329
20	MAY W10292801
21	MAY 12992101
22	EVAPORATOR
23	GASKET, FOAM
24	MOTOR, CONDENSER FAN
25	W11673433 Whirlpool Clip
26	MAY W11218258
27	Drier
28	COMPRESSOR
29	MAY W10350564
30	Axle, Roller (2)
31	SHROUD
32	GROMMET, CONDENSER
33	SEALER, INSULATION
34	MAY W10815863
