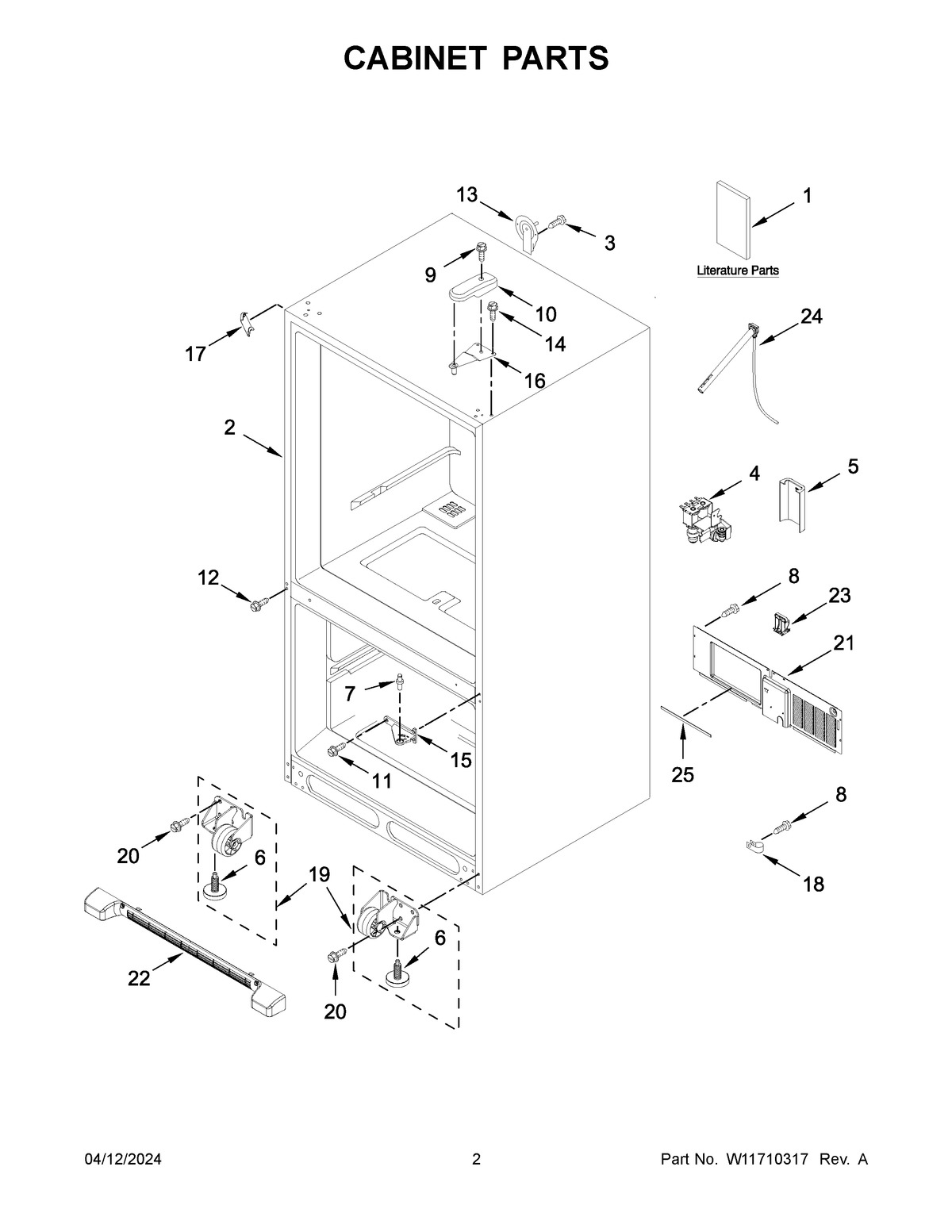

MBF1958FEZ08 02 – CABINET PARTS

MBF1958FEZ08 02 – CABINET PARTS

Written by

in

MBF1958FEZ08 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1BTECH SHEET
1OWNER'S MANUAL
2CABINET (NOT A SERVICABLE PART)
3WP98165 Whirlpool Screw
4W11519244 Whirlpool Refrigerator Valve
5W10208592 Whirlpool Refrigerator Valve Cover
6WPW10141622 Whirlpool Leveler
7WP67006642 Whirlpool Refrigerator Pin
8W11686675 Whirlpool Screw
9WP8281196 Whirlpool Screw
10W11106366 Whirlpool Refrigerator Door Hinge
11W11573362 Whirlpool Screw Assembly
1312726003 Whirlpool Refrigerator Water Cover
14WP489349 Whirlpool Refrigerator Screw
15W11689473 Whirlpool Door Hinge
16WP12566606ED Whirlpool Refrigerator Door Hinge
17WP12587703AP Whirlpool Refrigerator Filler
18W11456069 Whirlpool Refrigerator Clamp
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21W10210978 Whirlpool Refrigerator Back Cover
22WPW10534165 Whirlpool Refrigerator Front Grille
23W10485986 Whirlpool Tube Clamp
24W11281267 Whirlpool Refrigerator Water Tube
25B5759655 Whirlpool Refrigerator Gasket
