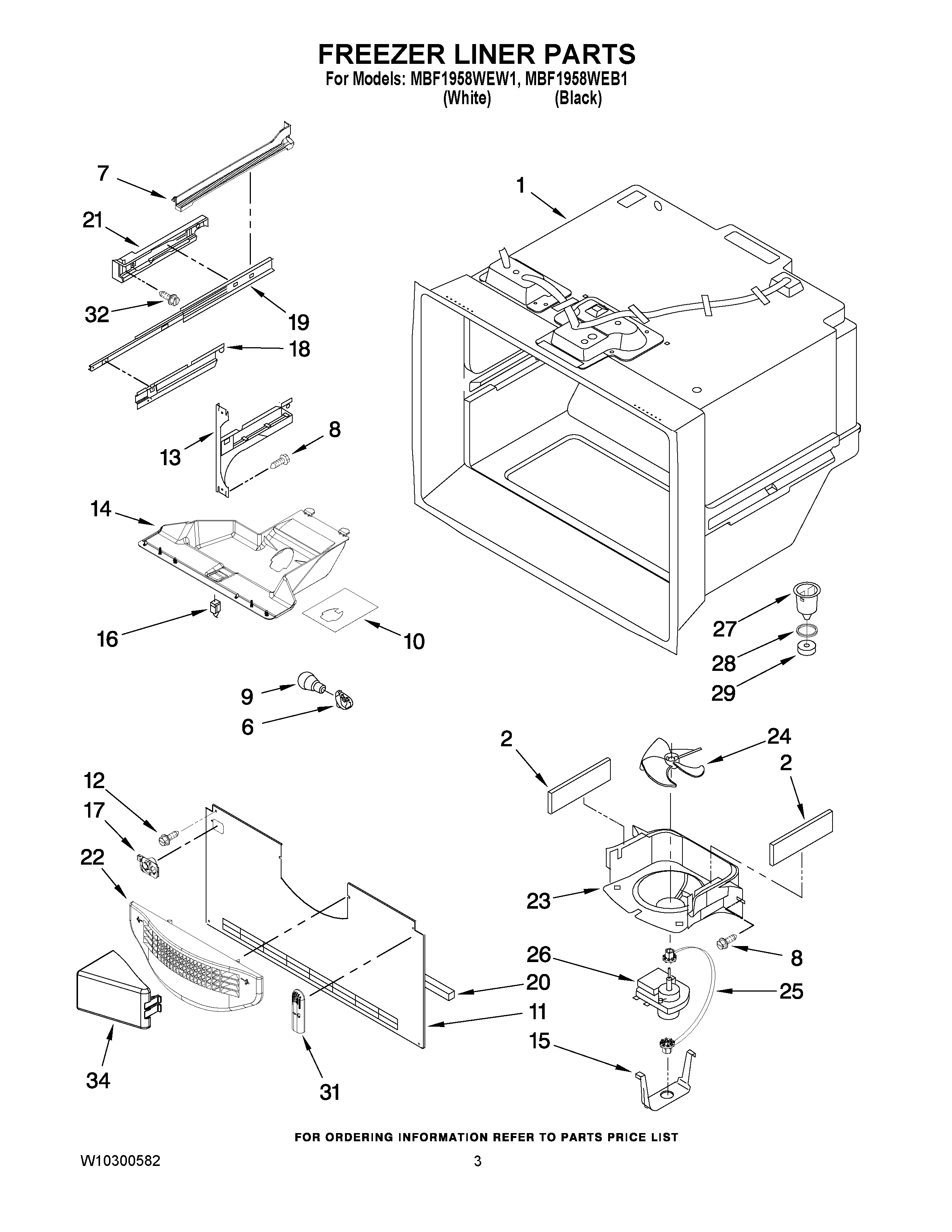

MBF1958WEB1 02 – FREEZER LINER PARTS

MBF1958WEB1 02 – FREEZER LINER PARTS

Written by

in

MBF1958WEB1 02 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
6Socket, Light
7RACK-SIDE (RIGHT)
7RACK-SIDE (LEFT)
8Screw (8)
9Bulb, Light (2)
10FOIL-FZ LIGHT
11MAY 12226110
12MAY 12990101
13BRACKET, DOOR (LEFT)
13BRACKET, DOOR (RIGHT)
14MODULE-FZ LIGHT
15CLIP, EVAP. MOTOR
16MAY 12466105
17MAY 12932103
18CRADLE-BASKET (LEFT HAND)
18CRADLE-BASKET (RIGHT HAND)
19MAY W10120018
20Gasket, Bottom
21ADAPTER, SLIDE (RIGHT HAND)
21ADAPTER, SLIDE (LEFT HAND)
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25MAY W10150583
26MAY 13062901
27MAY D7753903
28MAY M0500703
29Gasket
31MAY 12815301
32Screw (6)
34MAY W10157765
