MBF1958WEW2 01 – CABINET PARTS – Aparts

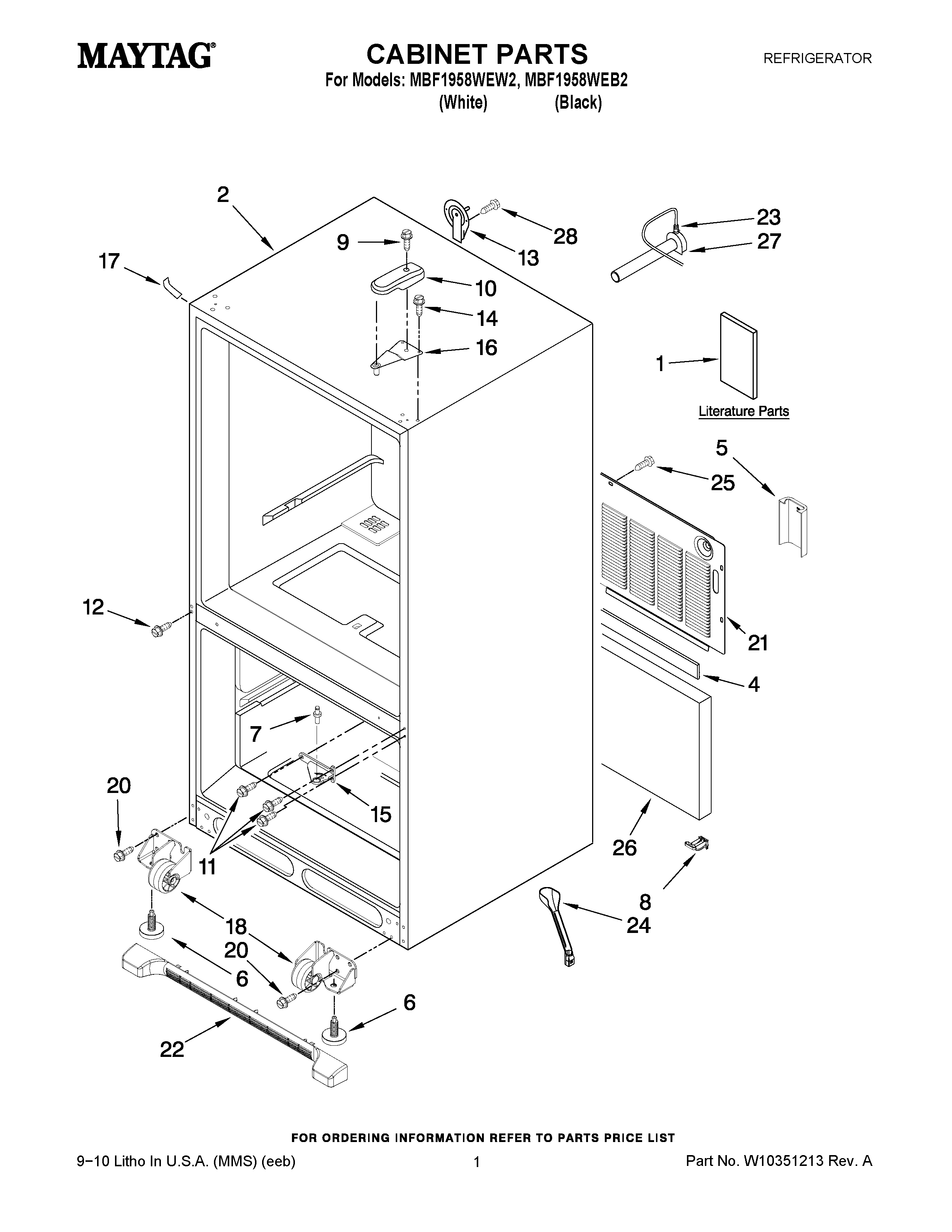

MBF1958WEW2 01 – CABINET PARTS

Products

Position	Product
1	MAY W10258248
1	MAY W10322959
1	OWNERS MANUAL
2	LINER (NOT A SERVICEABLE PART)
4	MAY B5759655
5	GUARD-WATER VALVE
6	Brake, Foot
7	MAY 10351006
8	MAY W10216614
9	MAY 12992602
10	COVER, HINGE(BLACK)
10	MAY 12477601W
11	MAY 12990101
12	Screw (8)
13	MAY 12726003
14	SCREW (6)
15	MAY 12607104ED
15	MAY 12607103WD
16	Hinge, Top
17	COVER, CORNER (BLACK)
17	Cover, Corner (2) (White)
18	ROLLER ASSY. (FRONT) (RIGHT)
18	ROLLER ASSY. (FRONT) (LEFT)
20	Screw (8)
21	MAY W10210978
22	Grille Assembly (Black)
22	Grille Assembly (White)
23	CLIP
24	MAY W10210987
25	SCREW (10)
26	Insulation, Sound
27	MAY 10463203SP
28	MAY 12990504
