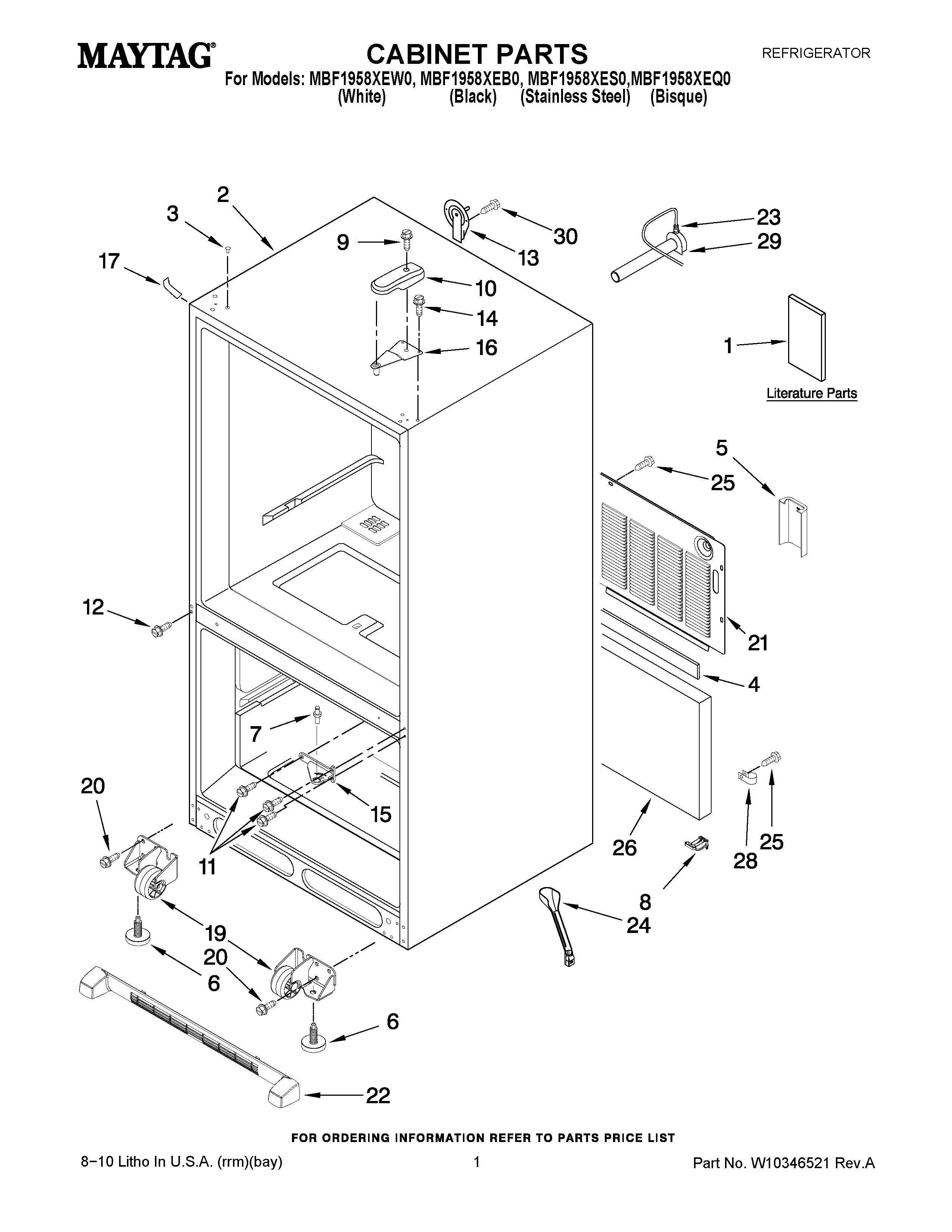

MBF1958XEB0 01 – CABINET PARTS

MBF1958XEB0 01 – CABINET PARTS

Written by

in

MBF1958XEB0 01 – CABINET PARTS

Products

PositionProduct
1MAY W10258248
1MAY W10308623
1OWNERS MANUAL
2LINER (NOT A SERVICEABLE PART)
3MAY M0310729
3MAY M0310731
3MAY M0310738
4MAY B5759655
5GUARD-WATER VALVE
6Brake, Foot
7MAY 10351006
8MAY W10216614
9MAY 12992602
10MAY 12477601W
10MAY 12477601C
10COVER, HINGE(BLACK)
11MAY 12990101
12Screw (8)
13MAY 12726003
14SCREW (6)
15MAY 12607104ED
15MAY 12607103WD
16MAY 12566606ED
17Cover, Corner (Bisque)
17COVER, CORNER (BLACK)
17Cover, Corner (2) (White)
19ROLLER ASSY. (FRONT) (LEFT)
19ROLLER ASSY. (FRONT) (RIGHT)
20Screw (8)
21MAY W10210978
22Grille Assembly (Black)
22Grille Assembly (White)
22MAY W10236651
23CLIP
24MAY W10210987
25SCREW (10)
26Insulation, Sound
28CLAMP, TUBE
29MAY 10463203SP
30MAY 12990504
