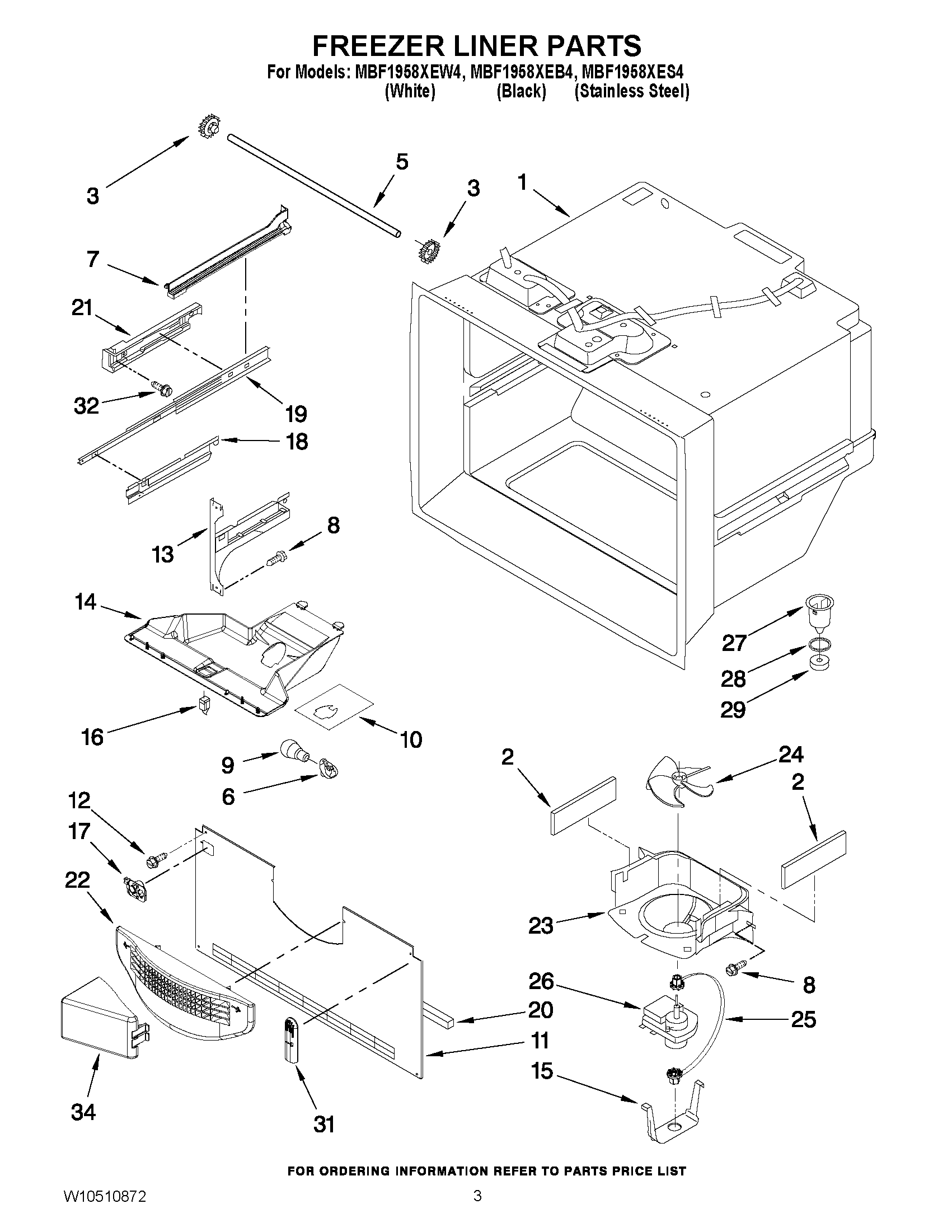

MBF1958XEB4 02 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
5	SHAFT-RACK
6	Socket, Light
7	RACK-SIDE (LEFT)
7	RACK-SIDE (RIGHT)
8	Screw (8)
9	BULB, LIGHT
10	FOIL-FZ LIGHT
11	MAY W10308414
12	MAY 12990101
13	BRACKET, DOOR (RIGHT)
13	BRACKET, DOOR (LEFT)
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	MAY 12466105
17	MAY 12932103
18	CRADLE-BASKET (LEFT HAND)
18	CRADLE-BASKET (RIGHT HAND)
19	SLIDE, DRAWER (2)
20	Gasket, Bottom
21	ADAPTER, SLIDE (RIGHT HAND)
21	ADAPTER, SLIDE (LEFT HAND)
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10150583
26	MAY 13062901
27	MAY D7753903
28	MAY M0500703
29	Gasket
31	MAY 12815301
32	Screw (6)
34	MAY W10157765
