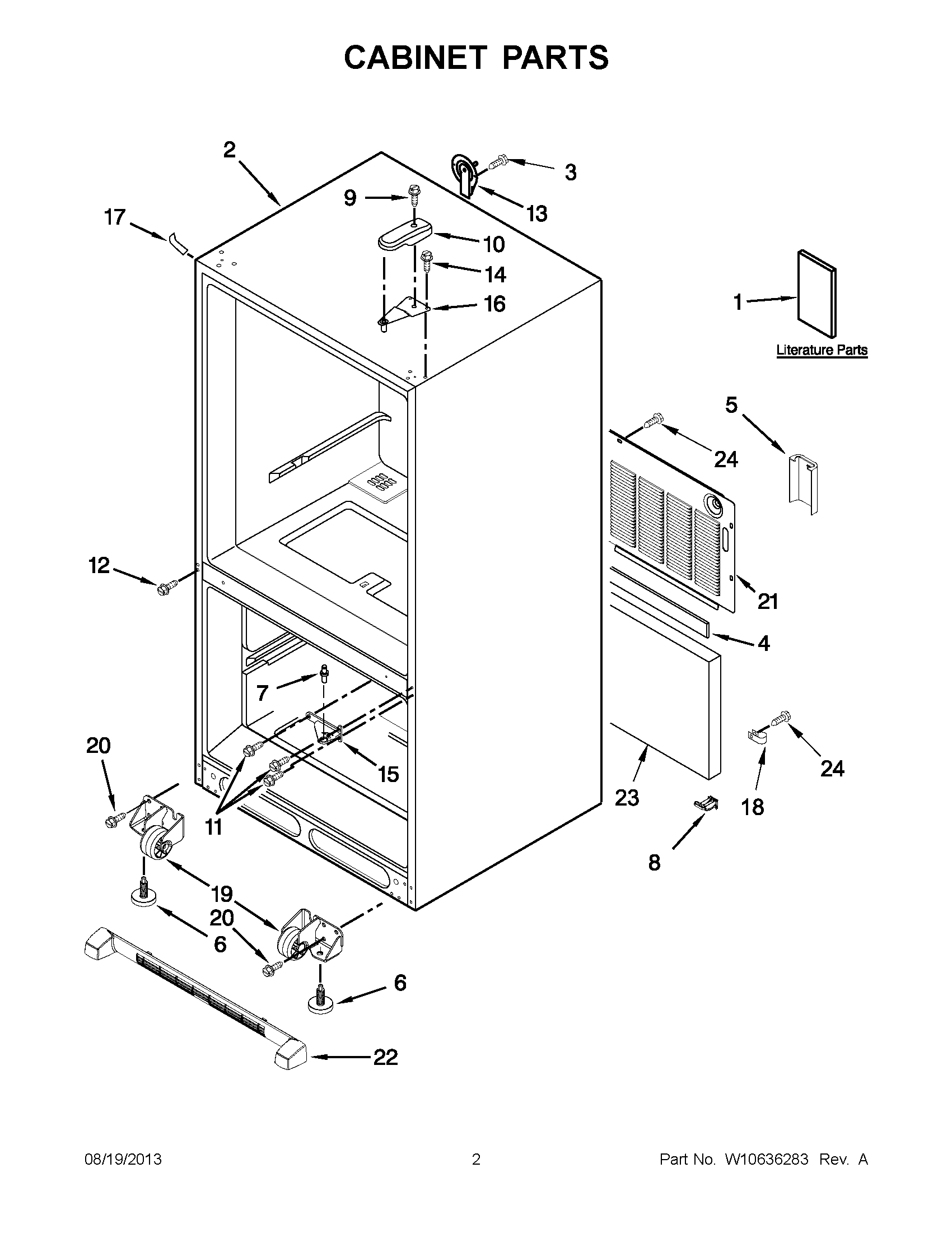

MBF1958XEB6 02 – CABINET PARTS

Products

PositionProduct
1MAY W10325960
1MAY W10366206SP
1MAY W10517966
2LINER (NOT A SERVICEABLE PART)
3MAY 12990504
4MAY B5759655
5GUARD-WATER VALVE
6Brake, Foot
7MAY 10351006
8MAY W10216614
9MAY 12992602
10MAY 12477601W
10COVER, HINGE(BLACK)
11MAY 12990101
12Screw (8)
13MAY 12726003
14SCREW (6)
15MAY 12607104ED
15MAY 12607103WD
16MAY 12566606ED
17Cover, Corner (2) (White)
17COVER, CORNER (BLACK)
18CLAMP, TUBE
19ROLLER ASSEMBLY (LEFT HAND)
19ROLLER ASSEMBLY (RIGHT HAND)
20Screw (8)
21MAY W10210978
22ASSEMBLY, GRILLE (BLACK)
22ASSEMBLY, GRILLE (WHITE)
23Insulation, Sound
24SCREW (10)
