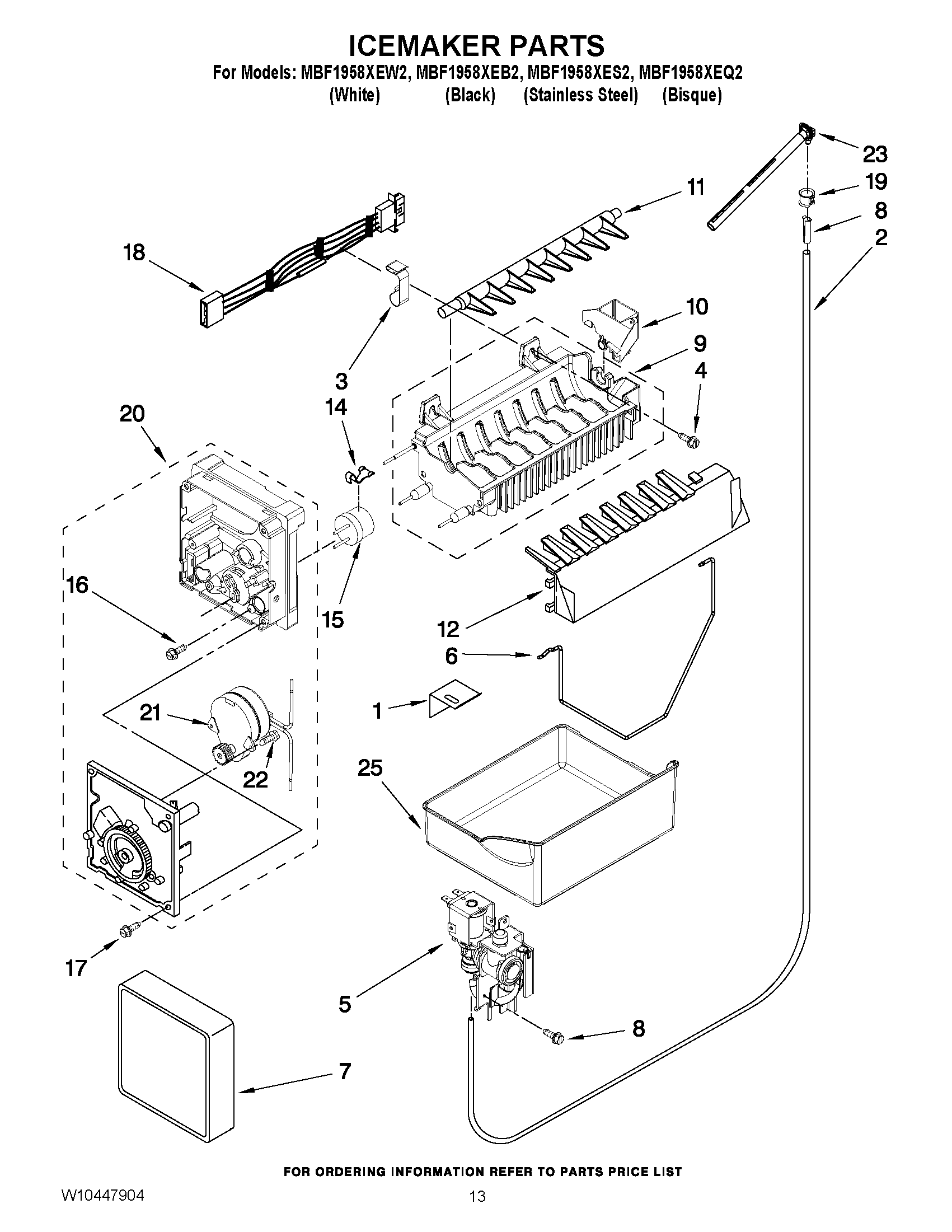

MBF1958XEQ2 08 – ICEMAKER PARTS

Products

Position	Product
1	MAY 2256086
2	TUBING, PLASTIC
3	CLAMP, WIRE
4	MAY 489276
5	MAY W10420082
6	ARM-SHUT OFF
7	MAY W10377174
8	MAY A3223101SP
9	ASSEMBLY, MOLD AND HEATER
10	MAY W10410073
11	MAY W10318914
12	ICE STRIPPER
14	Clip
15	MAY W10290336
16	MAY 8533917
17	Screw (3)
18	MAY W10404661
19	CLIP
20	ASSEMBLY, MODULE AND MOTOR
21	LINER (NOT A SERVICEABLE PART)
22	Screw (3)
23	MAY 10463203SP
25	MAY W10171529K
100	ICEMAKER ASSEMBLY (COMPLETE)
